Item group

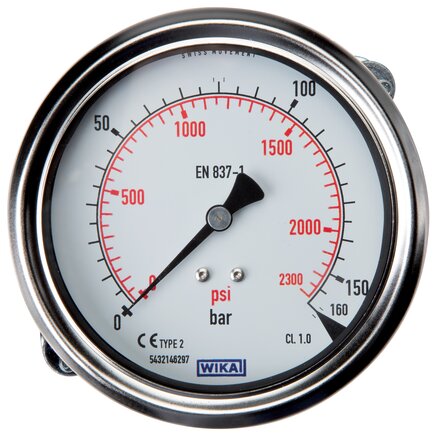

Built-in pressure gauge with three-sided front ring Ø 100 mm, stainless steel / brass - robust, Class 1
YouTube videos:
Materials:
Housing and front ring: 1.4301, measuring system: Cu alloy, (1.4404 for pressures >= 100 bar), connection: brass, Window: Instrument plate glass, mounting bracket: Galvanised steel, rear side
Connection thread:
G 1/2" *, eccentric on the rear side
Class:
1
Temperature range:
Environment: -40 to +60 °C, measured material, -40 to +80 °C
Dial:
1. Scale outside (black), display in bar, 2. scale inside (red), display in PSI
Protection class:
IP 54
Note:
WIKA Type 212.20
Optional:
ISO factory calibration (following DIN EN 837-1, determination of measurement deviation and hysteresis), DAkkS-DKD calibration (in accordance with DKD-R 6-1, traceable and accredited in accordance with DIN EN ISO/IEC 17025, decision rule 4)
*with centring pin for profiled seal
Documents:
More information
Filter items
Built-in pressure gauge with three-sided front ring Ø 100 mm, stainless steel / brass - robust, Class 1:
14 of 14 articles
€179.10
incl. VAT
€179.10
incl. VAT
€179.10
incl. VAT
€179.10
incl. VAT
€179.10
incl. VAT
€179.10
incl. VAT
€179.10
incl. VAT
€179.10
incl. VAT
€179.10
incl. VAT
€189.94
incl. VAT
€212.63
incl. VAT
€212.63
incl. VAT
€212.63
incl. VAT
€212.63
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
