Bulkhead push in connectors (also reducing), LE (inch)

Description

Materials:
Body and sleeve: POM (FDA approved), holding claw: Stainless steel, seals: EPDM (FDA certified)

Temperature range:
0°C bis +65°C

Operating pressure:
-0.95 to 16 bar (Ø 3/8", 1/2", 10 mm & 12 mm: max. 11 bar)*

Media:
unoiled compressed air, water, liquid foodstuffs, non-hazardous gases and liquids (no mineral oils), mild chemicals

Approvals:
NSF / ANSI 61, materials acc. to FDA

Advantages:
•available for metric and imperial hoses, G thread, •R-thread and NPT-thread available, •compatible with many other manufacturers

*For temperatures >20°C, calculate operating pressure with this correction factor: 30°C: 0.88 - 40°C: 0.77 - 50°C: 0.69 - 65°C: 0.63, example: 50°C, operating pressure = 16 bar * 0.69 = 11 bar

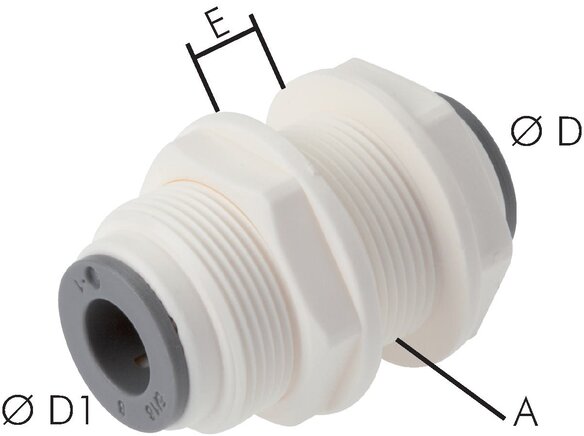

Find the right item

D
D1
A
Emax [mm]
Operating pressure [bar]

Bulkhead push in connectors (also reducing), LE (inch): 6 of 6 items

Bulkhead push in fittings 5/32" (3.97 mm)-5/32" (3.97 mm), IQS-LE (EPDM-seal)
  • D

    5/32" (3.97 mm)

  • D1

    5/32" (3.97 mm)

  • A

    M 16 x 1

  • Emax [mm]

    14,2

  • Operating pressure [bar]

    -0,95 to 16

Immediately available

2,04 €

Bulkhead push in fittings 3/16" (4.76 mm)-3/16" (4.76 mm), IQS-LE (EPDM-seal)
  • D

    3/16" (4.76 mm)

  • D1

    3/16" (4.76 mm)

  • A

    M 16 x 1

  • Emax [mm]

    14,2

  • Operating pressure [bar]

    -0,95 to 16

Immediately available

2,23 €

Bulkhead push in fittings 1/4" (6,35 mm)-1/4" (6,35 mm), IQS-LE (EPDM-seal)
  • D

    1/4" (6,35 mm)

  • D1

    1/4" (6,35 mm)

  • A

    M 16 x 1

  • Emax [mm]

    14,2

  • Operating pressure [bar]

    -0,95 to 16

Immediately available

1,75 €

Bulkhead push in fittings 5/16" (7.94 mm)-5/16" (7.94 mm), IQS-LE (EPDM-seal)
  • D

    5/16" (7.94 mm)

  • D1

    5/16" (7.94 mm)

  • A

    M 20 x 1

  • Emax [mm]

    15,1

  • Operating pressure [bar]

    -0,95 to 16

Immediately available

2,33 €

Bulkhead push in fittings 3/8" (9.52 mm)-1/4" (6,35 mm), IQS-LE (EPDM-seal)
  • D

    3/8" (9.52 mm)

  • D1

    1/4" (6,35 mm)

  • A

    M 20 x 1

  • Emax [mm]

    15,1

  • Comments

    reduced

  • Operating pressure [bar]

    -0,95 bis 11

Immediately available

2,33 €

Bulkhead push in fittings 3/8" (9.52 mm)-3/8" (9.52 mm), IQS-LE (EPDM-seal)
  • D

    3/8" (9.52 mm)

  • D1

    3/8" (9.52 mm)

  • A

    M 20 x 1

  • Emax [mm]

    15,1

  • Operating pressure [bar]

    -0,95 bis 11

Immediately available

2,62 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
