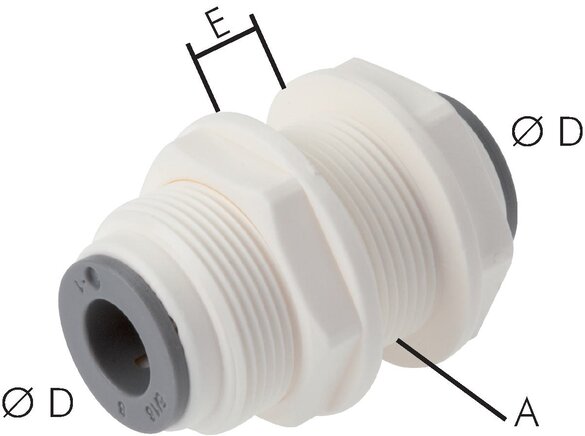

Bulkhead push in connectors, LE (metric)

Description

Materials:
Body and sleeve: POM (FDA approved), holding claw: Stainless steel, seals: EPDM (FDA certified)

Temperature range:
0°C to max. +65°C

Operating pressure:
-0.95 to 16 bar (Ø 3/8", 1/2", 10 mm & 12 mm: max. 11 bar)*

Media:
unoiled compressed air, water, liquid foodstuffs, non-hazardous gases and liquids (no mineral oils), mild chemicals

Approvals:
NSF / ANSI 61, materials acc. to FDA

Advantages:
•verfügbar für metrische und zöllige Schläuche, •G-Gewinde, R-Gewinde und NPT-Gewinde verfügbar, •kompatibel zu vielen anderern Herstellern

*For temperatures >20°C, calculate operating pressure with this correction factor: 30°C: 0.88 - 40°C: 0.77 - 50°C: 0.69 - 65°C: 0.63, example: 50°C, operating pressure = 16 bar * 0.69 = 11 bar

Find the right item

D [mm]
Emax [mm]

Bulkhead push in connectors, LE (metric): 4 of 4 items

Bulkhead push in fittings 4mm, IQS-LE (EPDM-seal)
  • D [mm]

    4

  • A

    M 16 x 1

  • Emax [mm]

    14,2

Immediately available
Inventory check:

Please wait, check is in process...

2,04 €

Bulkhead push in fittings 5mm, IQS-LE (EPDM-seal)
  • D [mm]

    5

  • A

    M 16 x 1

  • Emax [mm]

    14,2

Immediately available
Inventory check:

Please wait, check is in process...

2,23 €

Bulkhead push in fittings 6mm, IQS-LE (EPDM-seal)
  • D [mm]

    6

  • A

    M 16 x 1

  • Emax [mm]

    14,2

Immediately available
Inventory check:

Please wait, check is in process...

2,23 €

Bulkhead push in fittings 8mm, IQS-LE (EPDM-seal)
  • D [mm]

    8

  • A

    M 20 x 1

  • Emax [mm]

    15,1

Immediately available
Inventory check:

Please wait, check is in process...

2,33 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
