Bulkhead push-in connectors, Standard

Description

Materials:
Body: nickel-plated brass / PA 66, sleeve: PA 66 (M 3: nickel-plated steel / PA66), seal: NBR, holding claws: stainless steel, cartridge: Zinc-plated ZnDC (only silicone-free seals and lubricants are used during assembly)

Temperature range:
-20°C bis +80°C

Operating pressure:
-0,95 bis 20 bar

Media:
oiled and unoiled compressed air, neutral gases and water (water up to max 60° C may be used only after we have approved the performance specifications).

Advantages:
•Wide variety of products, •extremely tight due to lip seal, •available with conical, PTFE-coated thread or with cylindrical thread and captive O-ring

Find the right item

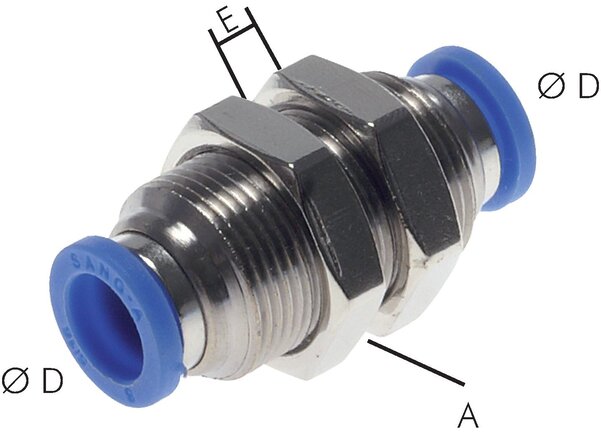

D [mm]
A
Emax [mm]

Bulkhead push-in connectors, Standard: 5 of 5 items

Bulkhead push in fitting 4mm, IQS standard
  • D [mm]

    4

  • A

    M 12 x 1

  • Emax [mm]

    10

Immediately available

2,96 €

Bulkhead push in fitting 6mm, IQS standard
  • D [mm]

    6

  • A

    M 14 x 1

  • Emax [mm]

    11

Immediately available

3,44 €

Bulkhead push in fitting 8mm, IQS standard
  • D [mm]

    8

  • A

    M 16 x 1

  • Emax [mm]

    12

Immediately available

4,02 €

Bulkhead push in fitting 10mm, IQS standard
  • D [mm]

    10

  • A

    M 20 x 1

  • Emax [mm]

    11

Immediately available

5,60 €

Bulkhead push in fitting 12mm, IQS standard
  • D [mm]

    12

  • A

    M 22 x 1

  • Emax [mm]

    16

Immediately available

7,61 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
