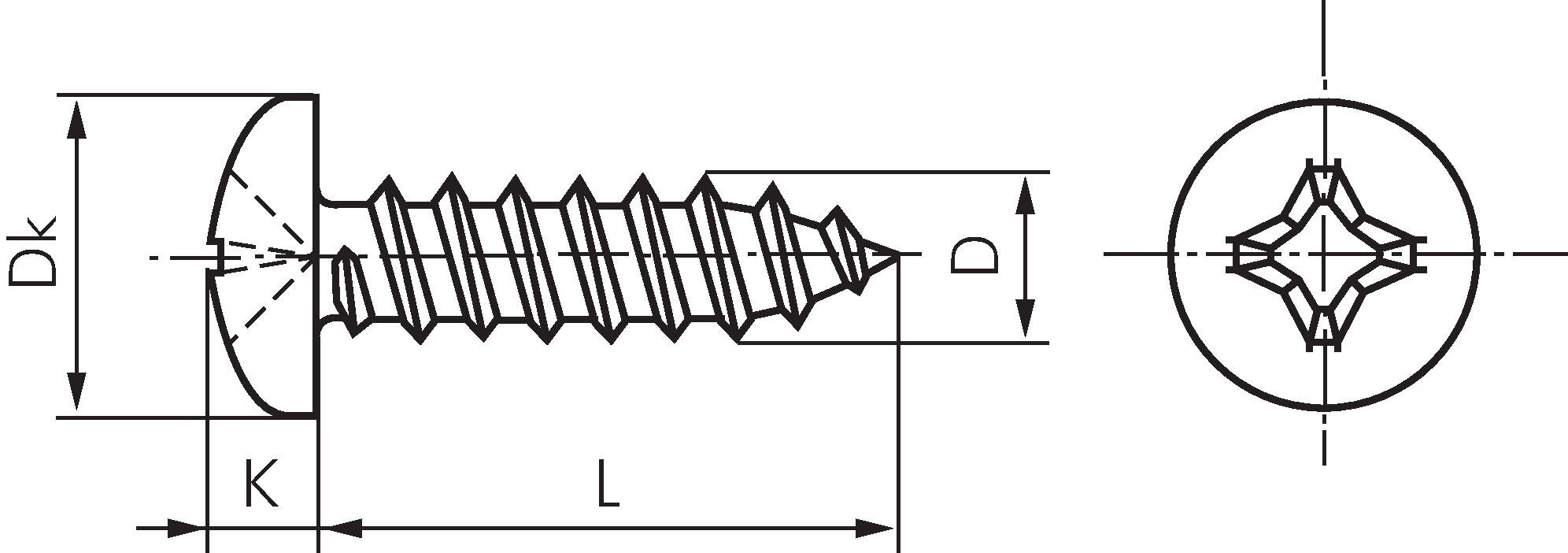

Button head tapping screws with cross recess, DIN 7981 C / ISO 7049

Find the right item

Material
d [mm]
l [mm]
dk [mm]
k (max) [mm]
Cross recess

Button head tapping screws with cross recess, DIN 7981 C / ISO 7049: 20 of 149 items

7981C-2,9X6,5
Lens tapping screw DIN7981C, 2,9x6,5 Hardened steel & zinc plated (7981C-2,9X6,5)

Hardened <br>steel & zinc plated Hardened
steel & zinc plated

Lens tapping screw DIN7981C, 2,9x6,5 Hardened steel & zinc plated
  • d [mm]

    2,9

  • l [mm]

    6,5

  • dk [mm]

    5,6

  • k (max) [mm]

    2,20

  • Cross recess

    PH1

Immediately available

for orders over 0,0068 €

Show price scale
1 piece 0,409 €

Graduated prices

Please wait, graduated prices are loading...
7981C-2,9X9,5
Lens tapping screw DIN7981C, 2,9x9,5 Hardened steel & zinc plated (7981C-2,9X9,5)

Hardened <br>steel & zinc plated Hardened
steel & zinc plated

Lens tapping screw DIN7981C, 2,9x9,5 Hardened steel & zinc plated
  • d [mm]

    2,9

  • l [mm]

    9,5

  • dk [mm]

    5,6

  • k (max) [mm]

    2,20

  • Cross recess

    PH1

Immediately available

for orders over 0,0068 €

Show price scale
1 piece 0,409 €

Graduated prices

Please wait, graduated prices are loading...
7981C-2,9X13
Lens tapping screw DIN7981C, 2,9x13,0 Hardened steel & zinc plated (7981C-2,9X13)

Hardened <br>steel & zinc plated Hardened
steel & zinc plated

Lens tapping screw DIN7981C, 2,9x13,0 Hardened steel & zinc plated
  • d [mm]

    2,9

  • l [mm]

    13,0

  • dk [mm]

    5,6

  • k (max) [mm]

    2,20

  • Cross recess

    PH1

Immediately available

for orders over 0,008 €

Show price scale
1 piece 0,415 €

Graduated prices

Please wait, graduated prices are loading...
7981C-2,9X16
Lens tapping screw DIN7981C, 2,9x16,0 Hardened steel & zinc plated (7981C-2,9X16)

Hardened <br>steel & zinc plated Hardened
steel & zinc plated

Lens tapping screw DIN7981C, 2,9x16,0 Hardened steel & zinc plated
  • d [mm]

    2,9

  • l [mm]

    16,0

  • dk [mm]

    5,6

  • k (max) [mm]

    2,20

  • Cross recess

    PH1

Immediately available

for orders over 0,0084 €

Show price scale
1 piece 0,417 €

Graduated prices

Please wait, graduated prices are loading...
7981C-2,9X19
Lens tapping screw DIN7981C, 2,9x19,0 Hardened steel & zinc plated (7981C-2,9X19)

Hardened <br>steel & zinc plated Hardened
steel & zinc plated

Lens tapping screw DIN7981C, 2,9x19,0 Hardened steel & zinc plated
  • d [mm]

    2,9

  • l [mm]

    19,0

  • dk [mm]

    5,6

  • k (max) [mm]

    2,20

  • Cross recess

    PH1

Immediately available

for orders over 0,01 €

Show price scale
1 piece 0,425 €

Graduated prices

Please wait, graduated prices are loading...
7981C-2,9X22
Lens tapping screw DIN7981C, 2,9x22,0 Hardened steel & zinc plated (7981C-2,9X22)

Hardened <br>steel & zinc plated Hardened
steel & zinc plated

Lens tapping screw DIN7981C, 2,9x22,0 Hardened steel & zinc plated
  • d [mm]

    2,9

  • l [mm]

    22,0

  • dk [mm]

    5,6

  • k (max) [mm]

    2,20

  • Cross recess

    PH1

Immediately available

for orders over 0,0096 €

Show price scale
1 piece 0,423 €

Graduated prices

Please wait, graduated prices are loading...
7981C-2,9X25
Lens tapping screw DIN7981C, 2,9x25,0 Hardened steel & zinc plated (7981C-2,9X25)

Hardened <br>steel & zinc plated Hardened
steel & zinc plated

Lens tapping screw DIN7981C, 2,9x25,0 Hardened steel & zinc plated
  • d [mm]

    2,9

  • l [mm]

    25,0

  • dk [mm]

    5,6

  • k (max) [mm]

    2,20

  • Cross recess

    PH1

Immediately available

for orders over 0,0128 €

Show price scale
1 piece 0,439 €

Graduated prices

Please wait, graduated prices are loading...
7981C-3,5X6,5
Lens tapping screw DIN7981C, 3,5x6,5 Hardened steel & zinc plated (7981C-3,5X6,5)

Hardened <br>steel & zinc plated Hardened
steel & zinc plated

Lens tapping screw DIN7981C, 3,5x6,5 Hardened steel & zinc plated
  • d [mm]

    3,5

  • l [mm]

    6,5

  • dk [mm]

    6,9

  • k (max) [mm]

    2,60

  • Cross recess

    PH2

Immediately available

for orders over 0,0084 €

Show price scale
1 piece 0,417 €

Graduated prices

Please wait, graduated prices are loading...
7981C-3,5X9,5
Lens tapping screw DIN7981C, 3,5x9,5 Hardened steel & zinc plated (7981C-3,5X9,5)

Hardened <br>steel & zinc plated Hardened
steel & zinc plated

Lens tapping screw DIN7981C, 3,5x9,5 Hardened steel & zinc plated
  • d [mm]

    3,5

  • l [mm]

    9,5

  • dk [mm]

    6,9

  • k (max) [mm]

    2,60

  • Cross recess

    PH2

Immediately available

for orders over 0,008 €

Show price scale
1 piece 0,415 €

Graduated prices

Please wait, graduated prices are loading...
7981C-3,5X13
Lens tapping screw DIN7981C, 3,5x13,0 Hardened steel & zinc plated (7981C-3,5X13)

Hardened <br>steel & zinc plated Hardened
steel & zinc plated

Lens tapping screw DIN7981C, 3,5x13,0 Hardened steel & zinc plated
  • d [mm]

    3,5

  • l [mm]

    13,0

  • dk [mm]

    6,9

  • k (max) [mm]

    2,60

  • Cross recess

    PH2

Immediately available

for orders over 0,0126 €

Show price scale
1 piece 0,691 €

Graduated prices

Please wait, graduated prices are loading...
7981C-3,5X16
Lens tapping screw DIN7981C, 3,5x16,0 Hardened steel & zinc plated (7981C-3,5X16)

Hardened <br>steel & zinc plated Hardened
steel & zinc plated

Lens tapping screw DIN7981C, 3,5x16,0 Hardened steel & zinc plated
  • d [mm]

    3,5

  • l [mm]

    16,0

  • dk [mm]

    6,9

  • k (max) [mm]

    2,60

  • Cross recess

    PH2

Immediately available

for orders over 0,0139 €

Show price scale
1 piece 0,536 €

Graduated prices

Please wait, graduated prices are loading...
7981C-3,5X19
Lens tapping screw DIN7981C, 3,5x19,0 Hardened steel & zinc plated (7981C-3,5X19)

Hardened <br>steel & zinc plated Hardened
steel & zinc plated

Lens tapping screw DIN7981C, 3,5x19,0 Hardened steel & zinc plated
  • d [mm]

    3,5

  • l [mm]

    19,0

  • dk [mm]

    6,9

  • k (max) [mm]

    2,60

  • Cross recess

    PH2

Immediately available

for orders over 0,0178 €

Show price scale
1 piece 0,649 €

Graduated prices

Please wait, graduated prices are loading...
7981C-3,5X22
Lens tapping screw DIN7981C, 3,5x22,0 Hardened steel & zinc plated (7981C-3,5X22)

Hardened <br>steel & zinc plated Hardened
steel & zinc plated

Lens tapping screw DIN7981C, 3,5x22,0 Hardened steel & zinc plated
  • d [mm]

    3,5

  • l [mm]

    22,0

  • dk [mm]

    6,9

  • k (max) [mm]

    2,60

  • Cross recess

    PH2

Immediately available

for orders over 0,0144 €

Show price scale
1 piece 0,447 €

Graduated prices

Please wait, graduated prices are loading...
7981C-3,5X25
Lens tapping screw DIN7981C, 3,5x25,0 Hardened steel & zinc plated (7981C-3,5X25)

Hardened <br>steel & zinc plated Hardened
steel & zinc plated

Lens tapping screw DIN7981C, 3,5x25,0 Hardened steel & zinc plated
  • d [mm]

    3,5

  • l [mm]

    25,0

  • dk [mm]

    6,9

  • k (max) [mm]

    2,60

  • Cross recess

    PH2

Immediately available

for orders over 0,0152 €

Show price scale
1 piece 0,451 €

Graduated prices

Please wait, graduated prices are loading...
7981C-3,5X32
Lens tapping screw DIN7981C, 3,5x32,0 Hardened steel & zinc plated (7981C-3,5X32)

Hardened <br>steel & zinc plated Hardened
steel & zinc plated

Lens tapping screw DIN7981C, 3,5x32,0 Hardened steel & zinc plated
  • d [mm]

    3,5

  • l [mm]

    32,0

  • dk [mm]

    6,9

  • k (max) [mm]

    2,60

  • Cross recess

    PH2

Immediately available

for orders over 0,0224 €

Show price scale
1 piece 0,654 €

Graduated prices

Please wait, graduated prices are loading...
7981C-3,5X38
Lens tapping screw DIN7981C, 3,5x38,0 Hardened steel & zinc plated (7981C-3,5X38)

Hardened <br>steel & zinc plated Hardened
steel & zinc plated

Lens tapping screw DIN7981C, 3,5x38,0 Hardened steel & zinc plated
  • d [mm]

    3,5

  • l [mm]

    38,0

  • dk [mm]

    6,9

  • k (max) [mm]

    2,60

  • Cross recess

    PH2

Immediately available

for orders over 0,032 €

Show price scale
1 piece 0,535 €

Graduated prices

Please wait, graduated prices are loading...
7981C-3,9X9,5
Lens tapping screw DIN7981C, 3,9x9,5 Hardened steel & zinc plated (7981C-3,9X9,5)

Hardened <br>steel & zinc plated Hardened
steel & zinc plated

Lens tapping screw DIN7981C, 3,9x9,5 Hardened steel & zinc plated
  • d [mm]

    3,9

  • l [mm]

    9,5

  • dk [mm]

    7,5

  • k (max) [mm]

    2,80

  • Cross recess

    PH2

Immediately available

for orders over 0,016 €

Show price scale
1 piece 0,687 €

Graduated prices

Please wait, graduated prices are loading...
7981C-3,9X13
Lens tapping screw DIN7981C, 3,9x13,0 Hardened steel & zinc plated (7981C-3,9X13)

Hardened <br>steel & zinc plated Hardened
steel & zinc plated

Lens tapping screw DIN7981C, 3,9x13,0 Hardened steel & zinc plated
  • d [mm]

    3,9

  • l [mm]

    13,0

  • dk [mm]

    7,5

  • k (max) [mm]

    2,80

  • Cross recess

    PH2

Immediately available

for orders over 0,0116 €

Show price scale
1 piece 0,433 €

Graduated prices

Please wait, graduated prices are loading...
7981C-3,9X16
Lens tapping screw DIN7981C, 3,9x16,0 Hardened steel & zinc plated (7981C-3,9X16)

Hardened <br>steel & zinc plated Hardened
steel & zinc plated

Lens tapping screw DIN7981C, 3,9x16,0 Hardened steel & zinc plated
  • d [mm]

    3,9

  • l [mm]

    16,0

  • dk [mm]

    7,5

  • k (max) [mm]

    2,80

  • Cross recess

    PH2

Immediately available

for orders over 0,0171 €

Show price scale
1 piece 0,559 €

Graduated prices

Please wait, graduated prices are loading...
7981C-3,9X19
Lens tapping screw DIN7981C, 3,9x19,0 Hardened steel & zinc plated (7981C-3,9X19)

Hardened <br>steel & zinc plated Hardened
steel & zinc plated

Lens tapping screw DIN7981C, 3,9x19,0 Hardened steel & zinc plated
  • d [mm]

    3,9

  • l [mm]

    19,0

  • dk [mm]

    7,5

  • k (max) [mm]

    2,80

  • Cross recess

    PH2

Immediately available

for orders over 0,0164 €

Show price scale
1 piece 0,457 €

Graduated prices

Please wait, graduated prices are loading...

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
