Cartridges*, Standard

Exemplary representation: Press-fit cartridge with assembly lock

Materials:

Body: nickel-plated brass, sleeve: PBT, seal: NBR, holding claws: Stainless steel

Temperature range:

-20°C to +60°C

Operating pressure:

-0,95 to 10 bar

Media:

Compressed air, neutral gases

Advantages:

•extremely small dimensions,
•no thread spindle required,
•mechanical installation possible,
•cartridge consists of just one part

Work steps:

•manufacture of step holes using a step drill or injection moulding,
•pressing the cartridge in,
•lateral removal of the installation guard

Scope of delivery:

Cartridges with the installation guard (safety rings IQSES ...) are assembled completely and are ready for use.

Warning:

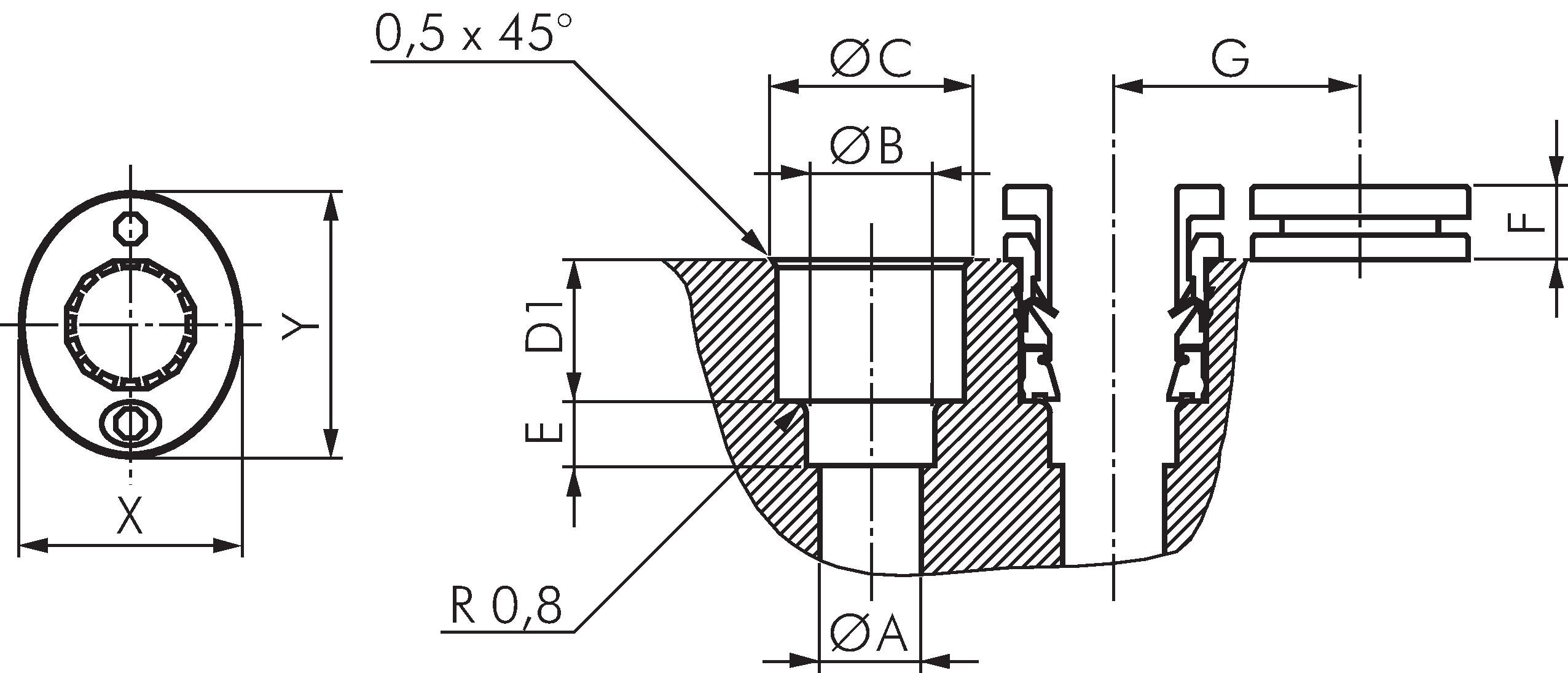

Dimensions are for POM material. Use in metal bodies only possible after carrying out trials.
*Operating pressure: 10 bar, max. 60°C

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 56) atlas9_seiten/56.pdf
    Documentation: Decision-making tool for the selection of IQS push in fittings and the matching hoses doku/entscheidungshilfen_steckanschluesse.pdf
