Item group

CEJN automatic hose reels for compressed air and water, up to 16 bar

Name: CEJN Automatic. Hose reels 10m. 11 x 16mm hose of Cejn
Brand: Cejn
SKU: SAC 121011
Price: 850.45 EUR
Availability: InStock

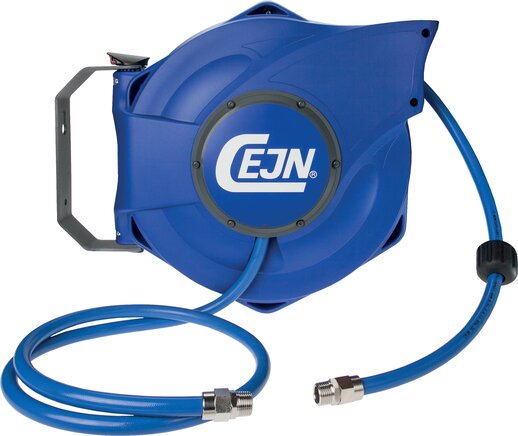

Exemplary representation: CEJN hose reel for compressed air

YouTube videos:

Automatic hose and cable reels

Function:

The hose can be drawn out and can be locked several times with every rotation of the drum. After a pulling a little, the drum retracts the entire hose.

Materials:

Body and drum: plastic, mounting bracket: steel, painted black, hose: fabric-reinforced polyester polyurethane (blue)

Scope of delivery:

Automatic hose reel with PU hose, stopper and thread connections on the hose ends, mounting bracket (pivoting) with quick-lock function

Optional:

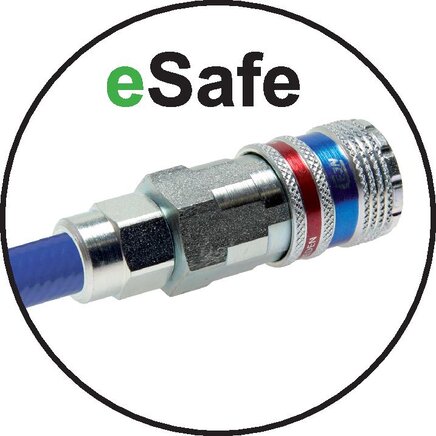

with coupling plug NW 7.2 (input) and safety coupling socket eSafe NW 7.2 (output) -S

*Hose: Polyether polyurethane, green, **Coupling plug safety coupling socket are loosely enclosed

Documents:

More information

CEJN automatic hose reels for compressed air and water, up to 16 bar:

14 of 14 articles

SAC 121011

CEJN Automatic. Hose reels 10m. 11 x 16mm hose

€850.45 incl. VAT

Quantity

pcs

Immediately available

Version	Hose diameter (inner x outside) [mm]	Hose length [MTR]	Operating pressure [bar]
for compressed air	11 x 16	10	12

SAC 1678

CEJN Automatic. Hose reels 7m. 8 x 12mm hose

€528.00 incl. VAT

Quantity

pcs

Immediately available

Version	Hose diameter (inner x outside) [mm]	Hose length [MTR]	Operating pressure [bar]
for compressed air	8 x 12	7	16

SAC 16108

CEJN Automatic. Hose reels 10m. 8 x 12mm hose

€547.05 incl. VAT

Quantity

pcs

Immediately available

Version	Hose diameter (inner x outside) [mm]	Hose length [MTR]	Operating pressure [bar]
for compressed air	8 x 12	10	16

SAC 16168

CEJN Automatic. Hose reels 17m. 8 x 12mm hose

€624.92 incl. VAT

Quantity

pcs

Immediately available

Version	Hose diameter (inner x outside) [mm]	Hose length [MTR]	Operating pressure [bar]
for compressed air	8 x 12	17	16

SAC 161410

CEJN Automatic. Hose reels 14m. 9,5 x 13,5mm hose

€586.17 incl. VAT

Quantity

pcs

Immediately available

Version	Hose diameter (inner x outside) [mm]	Hose length [MTR]	Operating pressure [bar]
for compressed air	9,5 x 13,5	14	16

SAWC 91410-38 *

CEJN Automatic. Hose reels 14m. 9,5 x 13,5mm hose

€777.91 incl. VAT

Quantity

pcs

Immediately available

Version	Hose diameter (inner x outside) [mm]	Hose length [MTR]	Operating pressure [bar]
for water	9,5 x 13,5	14	9

SAWC 91011-12 *

CEJN Automatic. Hose reels 10m. 11 x 16mm hose

€660.33 incl. VAT

Quantity

pcs

Immediately available

Version	Hose diameter (inner x outside) [mm]	Hose length [MTR]	Operating pressure [bar]
for water	11 x 16	10	9

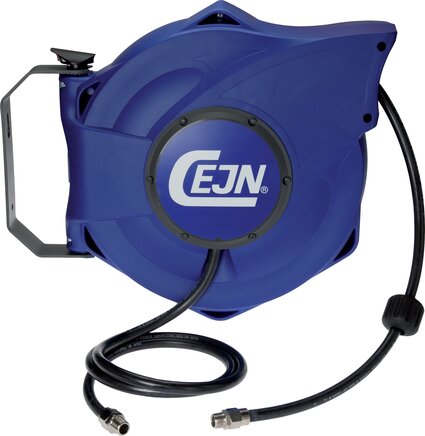

SAC 121410 SCHWEI

CEJN Automatic. Hose reels 14m. 9,5 x 13,5mm hose

€879.74 incl. VAT

Quantity

pcs

Immediately available

Version	Hose diameter (inner x outside) [mm]	Hose length [MTR]	Operating pressure [bar]
resistant to welding spatter	9,5 x 13,5	14	12

SAC 121011-S **

CEJN Automatic. Hose reels 10m. 11 x 16mm hose

€900.57 incl. VAT

Quantity

pcs

Immediately available

Version	Hose diameter (inner x outside) [mm]	Hose length [MTR]	Operating pressure [bar]
for compressed air with safety coupling eSafe	11 x 16	10	12

SAC 1678-S **

CEJN Automatic. Hose reels 7m. 8 x 12mm hose

€576.33 incl. VAT

Quantity

pcs

Immediately available

Version	Hose diameter (inner x outside) [mm]	Hose length [MTR]	Operating pressure [bar]
for compressed air with safety coupling eSafe	8 x 12	7	16

SAC 16108-S **

CEJN Automatic. Hose reels 10m. 8 x 12mm hose

€595.38 incl. VAT

Quantity

pcs

Immediately available

Version	Hose diameter (inner x outside) [mm]	Hose length [MTR]	Operating pressure [bar]
for compressed air with safety coupling eSafe	8 x 12	10	16

SAC 16168-S **

CEJN Automatic. Hose reels 17m. 8 x 12mm hose

€673.24 incl. VAT

Quantity

pcs

Immediately available

Version	Hose diameter (inner x outside) [mm]	Hose length [MTR]	Operating pressure [bar]
for compressed air with safety coupling eSafe	8 x 12	17	16

SAC 161410-S **

CEJN Automatic. Hose reels 14m. 9,5 x 13,5mm hose

€635.14 incl. VAT

Quantity

pcs

Immediately available

Version	Hose diameter (inner x outside) [mm]	Hose length [MTR]	Operating pressure [bar]
for compressed air with safety coupling eSafe	9,5 x 13,5	14	16

SAC 121410 SCHWEI-S **

CEJN Automatic. Hose reels 14m. 9,5 x 13,5mm hose

€928.71 incl. VAT

Quantity

pcs

Immediately available

Hose diameter (inner x outside) [mm]	Hose length [MTR]	Operating pressure [bar]	Input (male thread)
9,5 x 13,5	14	12	R 3/8"

Version

welding splash resilient with eSafe safety coupling

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
