Item group

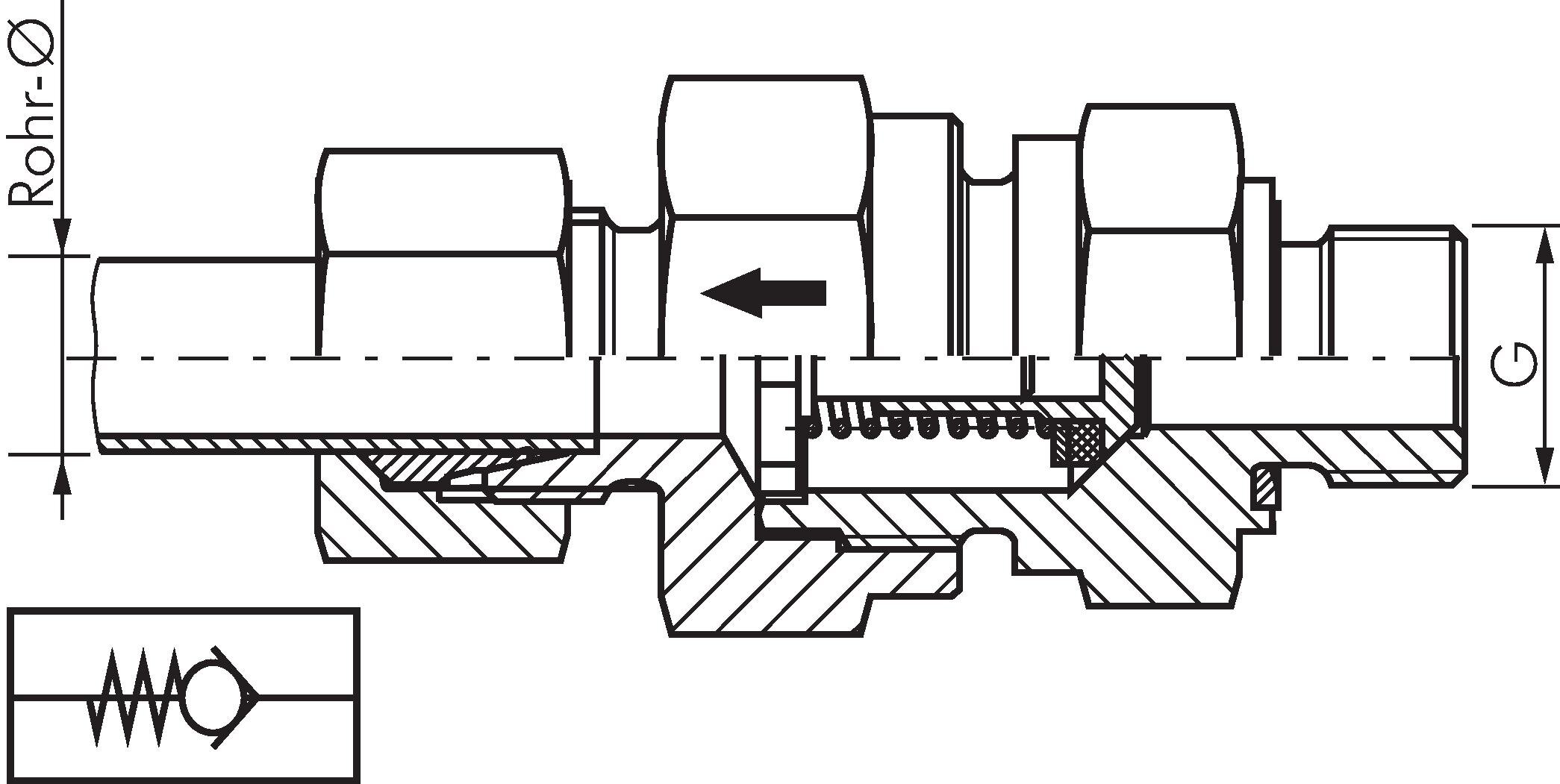

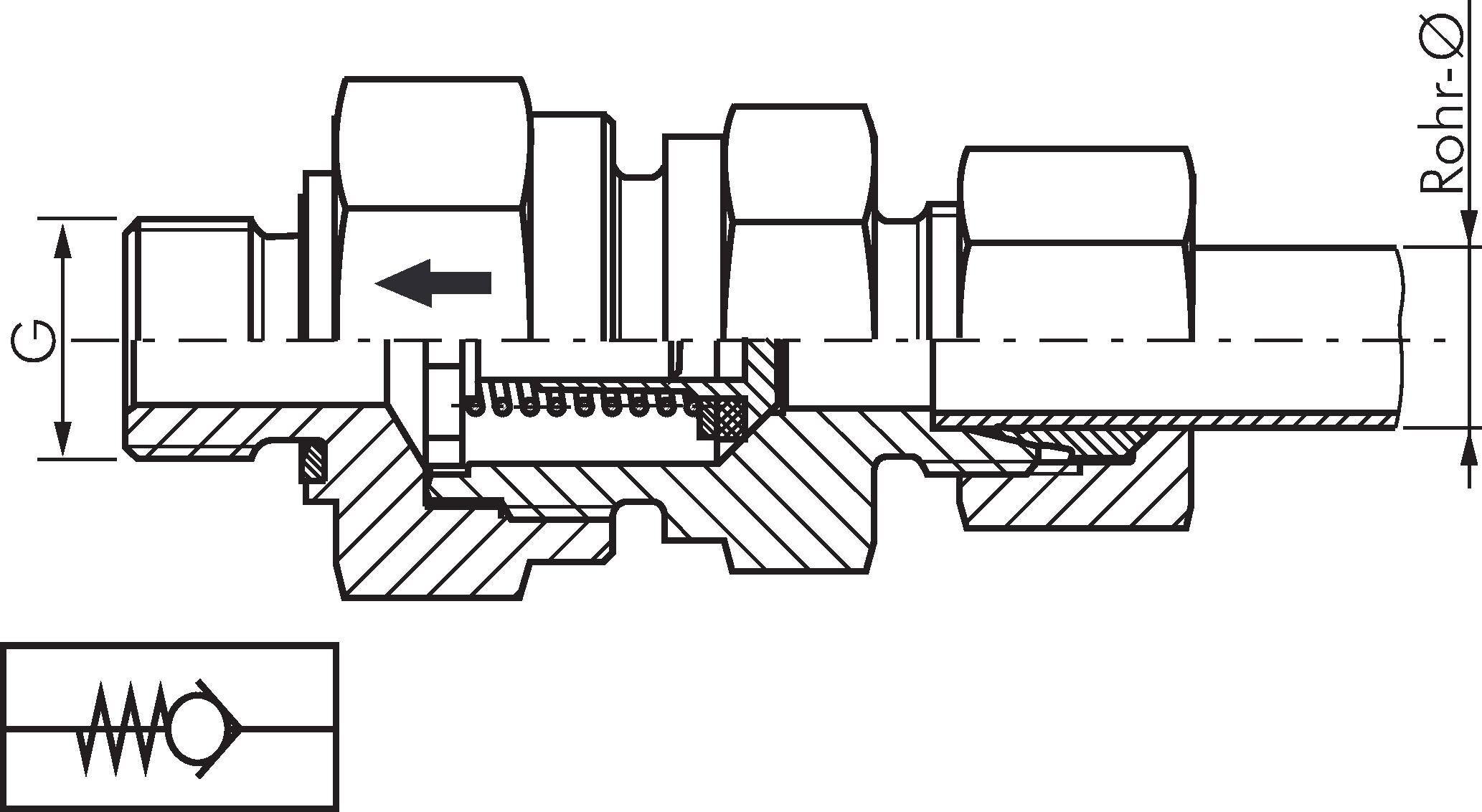

Check valves with cutting ring connection, and up to 400 bar

Materials:

Seal: NBR (1.4571: Seal: FKM)

Temperature range:

-20°C to max. +100°C (1.4571: -20°C up to max. +200°C)

Optional:

Opening pressures: (steel: 0.5 bar -0.5, 2.0 bar -2, 2.5 bar* -2.5, 3.0 bar** -3)
*only for tube diameter >= 28 mm, **only for tube diameter <= 25 mm

Documents:

More information Less information

Filter items

Material
Model series
Flow direction
Pipe diameter (outer)
more filters
Check valves with cutting ring connection, and up to 400 bar:
20 of 140 articles
Hydraulic check valves 12 S (M20x1,5)-G 3/8", Zinc plated steel(RHZ 12 SR)
RHZ 12 SR
Hydraulic check valves 12 S (M20x1,5)-G 3/8", Zinc plated steel
€39.71 incl. VAT
Immediately available
Hydraulic check valves 14 S (M22x1,5)-G 1/2", Zinc plated steel(RHZ 14 SR)
RHZ 14 SR
Hydraulic check valves 14 S (M22x1,5)-G 1/2", Zinc plated steel
€67.43 incl. VAT
Immediately available
Hydraulic check valves 16 S (M24x1,5)-G 1/2", Zinc plated steel(RHZ 16 SR)
RHZ 16 SR
Hydraulic check valves 16 S (M24x1,5)-G 1/2", Zinc plated steel
€63.02 incl. VAT
Immediately available
Hydraulic check valves 20 S (M30x2)-G 3/4", Zinc plated steel(RHZ 20 SR)
RHZ 20 SR
Hydraulic check valves 20 S (M30x2)-G 3/4", Zinc plated steel
€104.59 incl. VAT
Immediately available
Hydraulic check valves 25 S (M36x2)-G 1", Zinc plated steel(RHZ 25 SR)
RHZ 25 SR
Hydraulic check valves 25 S (M36x2)-G 1", Zinc plated steel
€121.33 incl. VAT
Immediately available
Hydraulic check valves 30 S (M42x2)-G 1-1/4", Zinc plated steel(RHZ 30 SR)
RHZ 30 SR
Hydraulic check valves 30 S (M42x2)-G 1-1/4", Zinc plated steel
€159.61 incl. VAT
Immediately available
Hydraulic check valves 38 S (M52x2)-G 1-1/2", Zinc plated steel(RHZ 38 SR)
RHZ 38 SR
Hydraulic check valves 38 S (M52x2)-G 1-1/2", Zinc plated steel
€200.55 incl. VAT
Immediately available
Hydraulic check valves 6 L (M12x1,5)-G 1/8", 1.4571(RHZ 6 LR ES)
RHZ 6 LR ES
Hydraulic check valves 6 L (M12x1,5)-G 1/8", 1.4571
€227.30 incl. VAT
Immediately available
Hydraulic check valves 8 L (M14x1,5)-G 1/4", 1.4571(RHZ 8 LR ES)
RHZ 8 LR ES
Hydraulic check valves 8 L (M14x1,5)-G 1/4", 1.4571
€262.12 incl. VAT
Immediately available
Hydraulic check valves 8 L (M14x1,5)-G 1/4", 1.4571(RHZ 8 LR ES-0,2)
RHZ 8 LR ES-0,2
Hydraulic check valves 8 L (M14x1,5)-G 1/4", 1.4571
€271.43 incl. VAT
Immediately available
Hydraulic check valves 10 L (M16x1,5)-G 1/4", 1.4571(RHZ 10 LR ES)
RHZ 10 LR ES
Hydraulic check valves 10 L (M16x1,5)-G 1/4", 1.4571
€297.46 incl. VAT
Immediately available
Hydraulic check valves 10 L (M16x1,5)-G 1/4", 1.4571(RHZ 10 LR ES-0,2)
RHZ 10 LR ES-0,2
Hydraulic check valves 10 L (M16x1,5)-G 1/4", 1.4571
€300.32 incl. VAT
Immediately available
Hydraulic check valves 10 L (M16x1,5)-G 1/4", 1.4571(RHZ 10 LR ES-0,5)
RHZ 10 LR ES-0,5
Hydraulic check valves 10 L (M16x1,5)-G 1/4", 1.4571
€300.32 incl. VAT
Immediately available
Hydraulic check valves 12 L (M18x1,5)-G 3/8", 1.4571(RHZ 12 LR ES)
RHZ 12 LR ES
Hydraulic check valves 12 L (M18x1,5)-G 3/8", 1.4571
€337.39 incl. VAT
Immediately available
Hydraulic check valves 15 L (M22x1,5)-G 1/2", 1.4571(RHZ 15 LR ES)
RHZ 15 LR ES
Hydraulic check valves 15 L (M22x1,5)-G 1/2", 1.4571
€396.60 incl. VAT
Immediately available
Hydraulic check valves 15 L (M22x1,5)-G 1/2", 1.4571(RHZ 15 LR ES-0,2)
RHZ 15 LR ES-0,2
Hydraulic check valves 15 L (M22x1,5)-G 1/2", 1.4571
€414.51 incl. VAT
Immediately available
Hydraulic check valves 18 L (M26x1,5)-G 1/2", 1.4571(RHZ 18 LR ES)
RHZ 18 LR ES
Hydraulic check valves 18 L (M26x1,5)-G 1/2", 1.4571
€555.71 incl. VAT
Immediately available
Hydraulic check valves 18 L (M26x1,5)-G 1/2", 1.4571(RHZ 18 LR ES-0,2)
RHZ 18 LR ES-0,2
Hydraulic check valves 18 L (M26x1,5)-G 1/2", 1.4571
€539.40 incl. VAT
deliverable again in ⌀ 8 days
Hydraulic check valves 22 L (M30x2)-G 3/4", 1.4571(RHZ 22 LR ES)
RHZ 22 LR ES
Hydraulic check valves 22 L (M30x2)-G 3/4", 1.4571
€771.62 incl. VAT
Immediately available
Hydraulic check valves 28 L (M36x2)-G 1", 1.4571(RHZ 28 LR ES)
RHZ 28 LR ES
Hydraulic check valves 28 L (M36x2)-G 1", 1.4571
€962.02 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
