Item group

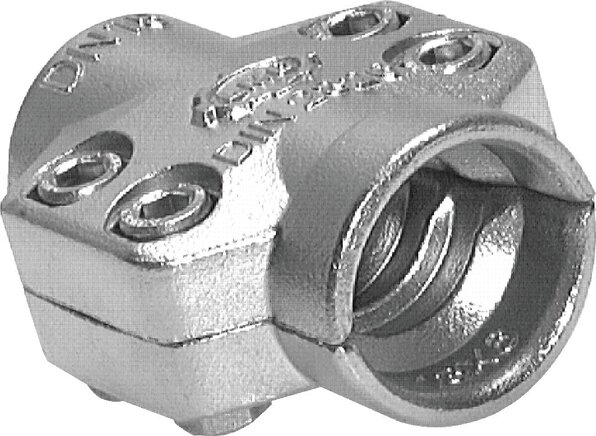

Clamps, 2-part for steam hoses, Dimensions acc. to EN 14423 (DIN 2826)

Suitable:

Safety clamp fittings for steam hoses in accordance with EN ISO 6134

Temperature range:

Saturated steam max. +210 °C, water up to +120°C

Operating pressure:

18 bar

Warning:

Please note the burst strength of the hose at the operating temperature!

Scope of delivery:

2 shell halves with 4 screws

Documents:

More information Less information

Filter items

Version
Please select
Number of stations [PCE]
Please select
for valve series
Please select
A [mm]
Please select
more filters
Clamps, 2-part for steam hoses, Dimensions acc. to EN 14423 (DIN 2826):
12 of 12 articles
€56.60 incl. VAT
Immediately available
€63.65 incl. VAT
Immediately available
€74.38 incl. VAT
Immediately available
€90.30 incl. VAT
Immediately available
€132.10 incl. VAT
Immediately available
€181.31 incl. VAT
Immediately available
€62.43 incl. VAT
Immediately available
€88.60 incl. VAT
Immediately available
€110.21 incl. VAT
Immediately available
€129.56 incl. VAT
Immediately available
€239.75 incl. VAT
Immediately available
€297.45 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
