Item group

Coupling plug of POM / PVDF with male thread, NW 7.2

{{ bildGross.Beschreibung }}

{{ bildGross.Beschreibung }}

{{ bildGross.Beschreibung }}

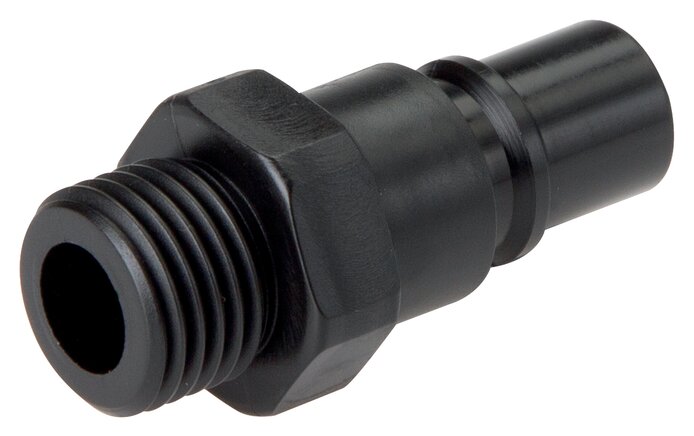

Exemplary representation: Coupling plug with male thread, POM

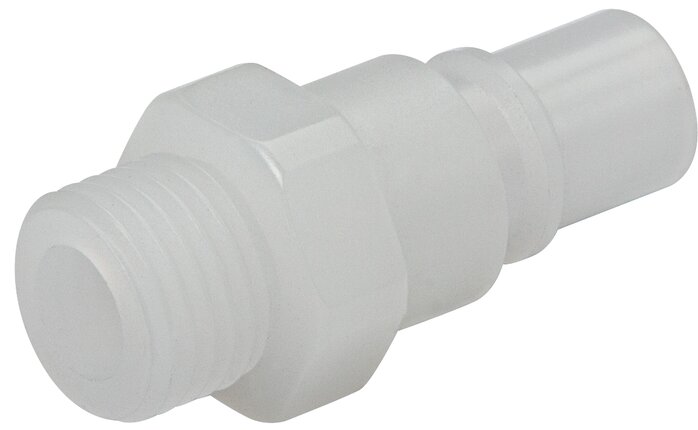

Exemplary representation: Coupling plug with male thread, PVDF

Exemplary representation: Plug dimension

Schematic symbol: Open

Schematic symbol: Shut-off

Type POM:

Materials:

Body: POM black, springs and valve: Stainless steel 1.4310, seals: NBR

Temperature range:

-20°C to max. +80°C

Operating pressure:

0 - 10 bar

Flow of air (water)**

1100 l/min (17 l/min), in conjunction with blocking coupling plug -BA: 770 l/min (12 l/min)

Type PVDF:

Materials:

Body: PVDF natural, springs and valve: stainless steel 1.4571, seals: FKM

Temperature range:

-20°C to max. +120°C

Operating pressure:

0 - 8 bar

Flow of air (water)**

1100 l/min (17 l/min), in conjunction with blocking coupling plug -BA: 770 l/min (12 l/min)

Note:

Coupling sockets and coupling plugs (open or blocking action) can be combined at will. Cannot be combined with workshop couplings NW 7.2!

Compatible with*:

Rectus (48)

*Some names and designations are registered trademarks of the respective manufacturers, **6 bar inlet pressure, 0.5 bar pressure difference

{{ $t('shop.all.dokumente') }}:

Catalogue page Atlas 9 (Page 321) atlas9_seiten/321.pdf

{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

Coupling plug of POM / PVDF with male thread, NW 7.2:

{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}

Coupling plug (NW7,2) G 1/4", POM open

8,50€ incl. VAT

Material	Version	Thread	Temperature range [°C]
POM	open	G 1/4"	-20 to +80

Coupling plug (NW7,2) G 3/8", POM open

8,65€ incl. VAT

Material	Version	Thread	Temperature range [°C]
POM	open	G 3/8"	-20 to +80

Coupling plug (NW7,2) G 1/4", PVDF open

33,75€ incl. VAT

Material	Version	Thread	Temperature range [°C]
PVDF	open	G 1/4"	-20 to +120

Coupling plug (NW7,2) G 3/8", PVDF open

40,90€ incl. VAT

Material	Version	Thread	Temperature range [°C]
PVDF	open	G 3/8"	-20 to +120

Coupling plug (NW7,2) G 1/2", PVDF open

47,96€ incl. VAT

Material	Version	Thread	Temperature range [°C]
PVDF	open	G 1/2"	-20 to +120

KSG 14 NW7 PO BA

Coupling plug (NW7,2) G 1/4", POM shut-off

33,33€ incl. VAT

Material	Version	Thread	Temperature range [°C]
POM	shut-off	G 1/4"	-20 to +80

KSG 38 NW7 PO BA

Coupling plug (NW7,2) G 3/8", POM shut-off

34,68€ incl. VAT

Material	Version	Thread	Temperature range [°C]
POM	shut-off	G 3/8"	-20 to +80

KSG 12 NW7 PO BA

Coupling plug (NW7,2) G 1/2", POM shut-off

38,68€ incl. VAT

Material	Version	Thread	Temperature range [°C]
POM	shut-off	G 1/2"	-20 to +80

KSG 14 NW7 PV BA

Coupling plug (NW7,2) G 1/4", PVDF shut-off

77,87€ incl. VAT

Material	Version	Thread	Temperature range [°C]
PVDF	shut-off	G 1/4"	-20 to +120

KSG 38 NW7 PV BA

Coupling plug (NW7,2) G 3/8", PVDF shut-off

81,43€ incl. VAT

Material	Version	Thread	Temperature range [°C]
PVDF	shut-off	G 3/8"	-20 to +120

KSG 12 NW7 PV BA

Coupling plug (NW7,2) G 1/2", PVDF shut-off

86,51€ incl. VAT

Material	Version	Thread	Temperature range [°C]
PVDF	shut-off	G 1/2"	-20 to +120
