Coupling plug with hose screw connection, NW 7.2

Description

Materials:
Housing: Brass, nickel-plated brass, steel hardened, 1.4305, seal: NBR (stainless steel: FKM)

Temperature range:
-20°C to max. +100°C (stainless steel: -15°C to max. +200°C, plastic sleeve max. +80°C)

Operating pressure:
-0,95 bis 35 bar

Flow***:
Bolt lock: 1100 l/min (option -BA: 800 l/min), ball lock: 1850 l/min (option -BA: 750 l/min), ball lock/plastic sleeve: 2100 l/min

Note:
Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.

Compatible with**:
Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E ... 07), Festo (KD4 / KS4), IMI-Norgren (238), Aventics (CP1-NW 7 / 7,8) und viele andere deutsche Fabrikate

Optional:
Body made from 1.4404 -ES4A, with valve for double-sided shut-off -BA

**Names and designations are partly trademarks of the manufacturers entered.

***6 bar input pressure, 0,5 bar pressure difference

Find the right item

Material
Hose Ø inside [mm]
shut-off on both sides
Temperature range [°C]

Coupling plug with hose screw connection, NW 7.2: 20 of 43 items

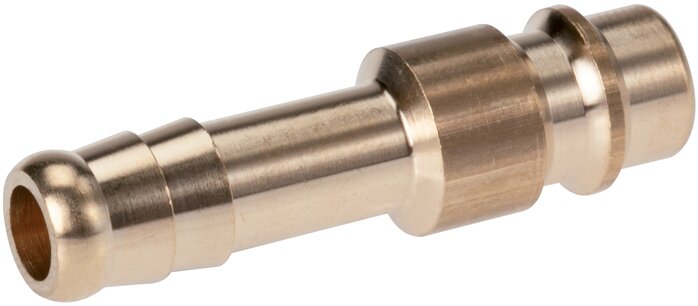

Coupling plug (NW7,2) 4mm hose, Brass
  • Hose Ø inside [mm]

    4

  • shut-off on both sides

    no

  • Temperature range [°C]

    -20 to +100

Immediately available

1,78 €

Coupling plug (NW7,2) 6 (1/4")mm hose, Brass
  • Hose Ø inside [mm]

    6 (1/4")

  • shut-off on both sides

    no

  • Temperature range [°C]

    -20 to +100

Immediately available

1,01 €

Coupling plug (NW7,2) 8 (5/16")mm hose, Brass
  • Hose Ø inside [mm]

    8 (5/16")

  • shut-off on both sides

    no

  • Temperature range [°C]

    -20 to +100

Immediately available

1,47 €

Coupling plug (NW7,2) 9 (3/8")mm hose, Brass
  • Hose Ø inside [mm]

    9 (3/8")

  • shut-off on both sides

    no

  • Temperature range [°C]

    -20 to +100

Immediately available

0,92 €

Coupling plug (NW7,2) 10mm hose, Brass
  • Hose Ø inside [mm]

    10

  • shut-off on both sides

    no

  • Temperature range [°C]

    -20 to +100

Immediately available

0,92 €

Coupling plug (NW7,2) 13 (1/2")mm hose, Brass
  • Hose Ø inside [mm]

    13 (1/2")

  • shut-off on both sides

    no

  • Temperature range [°C]

    -20 to +100

Immediately available

1,42 €

KSS 4 NW7 MSV
Coupling plug (NW7,2) 4mm hose, Nickel-plated brass (KSS 4 NW7 MSV)

Nickel-plated brass Nickel-plated brass

Coupling plug (NW7,2) 4mm hose, Nickel-plated brass
  • Hose Ø inside [mm]

    4

  • shut-off on both sides

    no

  • Temperature range [°C]

    -20 to +100

Immediately available

4,32 €

KSS 6 NW7 MSV
Coupling plug (NW7,2) 6 (1/4")mm hose, Nickel-plated brass (KSS 6 NW7 MSV)

Nickel-plated brass Nickel-plated brass

Coupling plug (NW7,2) 6 (1/4")mm hose, Nickel-plated brass
  • Hose Ø inside [mm]

    6 (1/4")

  • shut-off on both sides

    no

  • Temperature range [°C]

    -20 to +100

Immediately available

2,09 €

KSS 8 NW7 MSV
Coupling plug (NW7,2) 8 (5/16")mm hose, Nickel-plated brass (KSS 8 NW7 MSV)

Nickel-plated brass Nickel-plated brass

Coupling plug (NW7,2) 8 (5/16")mm hose, Nickel-plated brass
  • Hose Ø inside [mm]

    8 (5/16")

  • shut-off on both sides

    no

  • Temperature range [°C]

    -20 to +100

Immediately available

2,09 €

KSS 9 NW7 MSV
Coupling plug (NW7,2) 9 (3/8")mm hose, Nickel-plated brass (KSS 9 NW7 MSV)

Nickel-plated brass Nickel-plated brass

Coupling plug (NW7,2) 9 (3/8")mm hose, Nickel-plated brass
  • Hose Ø inside [mm]

    9 (3/8")

  • shut-off on both sides

    no

  • Temperature range [°C]

    -20 to +100

Immediately available

2,09 €

KSS 10 NW7 MSV
Coupling plug (NW7,2) 10mm hose, Nickel-plated brass (KSS 10 NW7 MSV)

Nickel-plated brass Nickel-plated brass

Coupling plug (NW7,2) 10mm hose, Nickel-plated brass
  • Hose Ø inside [mm]

    10

  • shut-off on both sides

    no

  • Temperature range [°C]

    -20 to +100

Immediately available

2,09 €

KSS 13 NW7 MSV
Coupling plug (NW7,2) 13 (1/2")mm hose, Nickel-plated brass (KSS 13 NW7 MSV)

Nickel-plated brass Nickel-plated brass

Coupling plug (NW7,2) 13 (1/2")mm hose, Nickel-plated brass
  • Hose Ø inside [mm]

    13 (1/2")

  • shut-off on both sides

    no

  • Temperature range [°C]

    -20 to +100

Immediately available

2,53 €

KSS 4 NW7 ES
Coupling plug (NW7,2) 4mm hose, Stainless steel (KSS 4 NW7 ES)

Stainless steel Stainless steel

Coupling plug (NW7,2) 4mm hose, Stainless steel
  • Hose Ø inside [mm]

    4

  • shut-off on both sides

    no

  • Temperature range [°C]

    -15 to +200

Immediately available

15,25 €

KSS 6 NW7 ES
Coupling plug (NW7,2) 6 (1/4")mm hose, Stainless steel (KSS 6 NW7 ES)

Stainless steel Stainless steel

Coupling plug (NW7,2) 6 (1/4")mm hose, Stainless steel
  • Hose Ø inside [mm]

    6 (1/4")

  • shut-off on both sides

    no

  • Temperature range [°C]

    -15 to +200

Immediately available

13,14 €

KSS 8 NW7 ES
Coupling plug (NW7,2) 8 (5/16")mm hose, Stainless steel (KSS 8 NW7 ES)

Stainless steel Stainless steel

Coupling plug (NW7,2) 8 (5/16")mm hose, Stainless steel
  • Hose Ø inside [mm]

    8 (5/16")

  • shut-off on both sides

    no

  • Temperature range [°C]

    -15 to +200

Immediately available

12,32 €

KSS 9 NW7 ES
Coupling plug (NW7,2) 9 (3/8")mm hose, Stainless steel (KSS 9 NW7 ES)

Stainless steel Stainless steel

Coupling plug (NW7,2) 9 (3/8")mm hose, Stainless steel
  • Hose Ø inside [mm]

    9 (3/8")

  • shut-off on both sides

    no

  • Temperature range [°C]

    -15 to +200

Immediately available

12,32 €

KSS 10 NW7 ES
Coupling plug (NW7,2) 10mm hose, Stainless steel (KSS 10 NW7 ES)

Stainless steel Stainless steel

Coupling plug (NW7,2) 10mm hose, Stainless steel
  • Hose Ø inside [mm]

    10

  • shut-off on both sides

    no

  • Temperature range [°C]

    -15 to +200

Immediately available

12,32 €

KSS 13 NW7 ES
Coupling plug (NW7,2) 13 (1/2")mm hose, Stainless steel (KSS 13 NW7 ES)

Stainless steel Stainless steel

Coupling plug (NW7,2) 13 (1/2")mm hose, Stainless steel
  • Hose Ø inside [mm]

    13 (1/2")

  • shut-off on both sides

    no

  • Temperature range [°C]

    -15 to +200

Immediately available

16,63 €

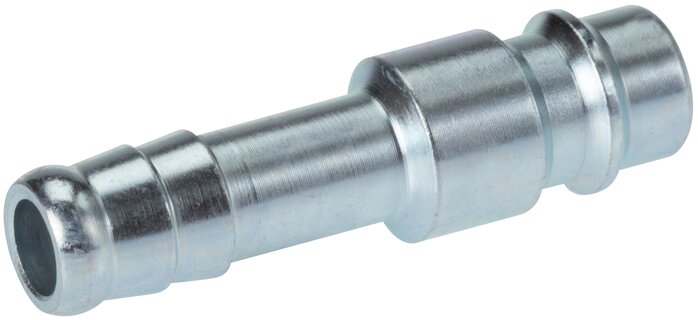

KSS 4 NW7 ST
Coupling plug (NW7,2) 4mm hose, Hardened steel & zinc plated (KSS 4 NW7 ST)

Hardened <br>steel & zinc plated Hardened
steel & zinc plated

Coupling plug (NW7,2) 4mm hose, Hardened steel & zinc plated
  • Hose Ø inside [mm]

    4

  • shut-off on both sides

    no

  • Temperature range [°C]

    -20 to +100

Immediately available

2,55 €

KSS 6 NW7 ST
Coupling plug (NW7,2) 6 (1/4")mm hose, Hardened steel & zinc plated (KSS 6 NW7 ST)

Hardened <br>steel & zinc plated Hardened
steel & zinc plated

Coupling plug (NW7,2) 6 (1/4")mm hose, Hardened steel & zinc plated
  • Hose Ø inside [mm]

    6 (1/4")

  • shut-off on both sides

    no

  • Temperature range [°C]

    -20 to +100

Immediately available

1,88 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
