Item group

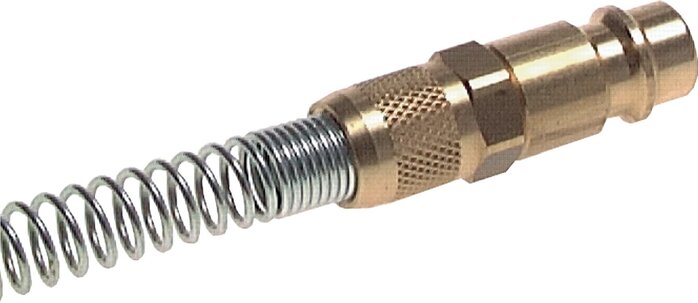

Coupling plug With Locking nut & bend protection, NW 7.2

Exemplary representation: Brass Exemplary representation: Special version BA detailed view: Plug dimensions

{{ $t('shop.display.artikelgruppe.youtube') }}:

Materials:

Housing: brass, nickel-plated brass, hardened steel or stainless steel 1.4305, seal: NBR (stainless steel: FKM)

Temperature range:

-20°C to max. +100°C (stainless steel: -15°C to max. +200°C, plastic sleeve max. +80°C)

Operating pressure:

-0,95 to 35 bar

Flow***:

Bolt lock: 1100 l/min (option -BA: 800 l/min), ball lock: 1850 l/min (option -BA: 750 l/min), ball lock/plastic sleeve: 2100 l/min

Note:

Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.

Compatible with**:

Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E ... 07), Festo (KD4 / KS4 / NPHS), IMI-Norgren (238), Aventics (CP1-NW 7 / 7.8) and many other German brands

Optional:

with valve for double-sided shut-off -BA
**Names and designations are partly trademarks of the manufacturers entered.***6 bar input pressure, 0,5 bar pressure difference

{{ $t('shop.all.dokumente') }}:

{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ filter.Eigenschaft.EigenschaftName }}
{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
Coupling plug With Locking nut & bend protection, NW 7.2: {{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
Coupling plug (NW7,2) 6x4mm hose m. bend protection
Coupling plug (NW7,2) 8x6mm hose m. bend protection
Coupling plug (NW7,2) 10x8mm hose m. bend protection
Coupling plug (NW7,2) 12x9mm hose m. bend protection
Coupling plug (NW7,2) 6x4mm hose m. bend protection
Coupling plug (NW7,2) 8x6mm hose m. bend protection
Coupling plug (NW7,2) 10x8mm hose m. bend protection
Coupling plug (NW7,2) 6x4mm hose m. bend protection
Coupling plug (NW7,2) 8x6mm hose m. bend protection
Coupling plug (NW7,2) 10x8mm hose m. bend protection
Coupling plug (NW7,2) 12x9mm hose m. bend protection
Coupling plug (NW7,2) 6x4mm hose m. bend protection
Coupling plug (NW7,2) 8x6mm hose m. bend protection
Coupling plug (NW7,2) 10x8mm hose m. bend protection
Coupling plug (NW7,2) 6x4mm hose m. bend protection
Coupling plug (NW7,2) 8x6mm hose m. bend protection
Coupling plug (NW7,2) 10x8mm hose m. bend protection
Coupling plug (NW7,2) 6x4mm hose m. bend protection
Coupling plug (NW7,2) 8x6mm hose m. bend protection
Coupling plug (NW7,2) 10x8mm hose m. bend protection
