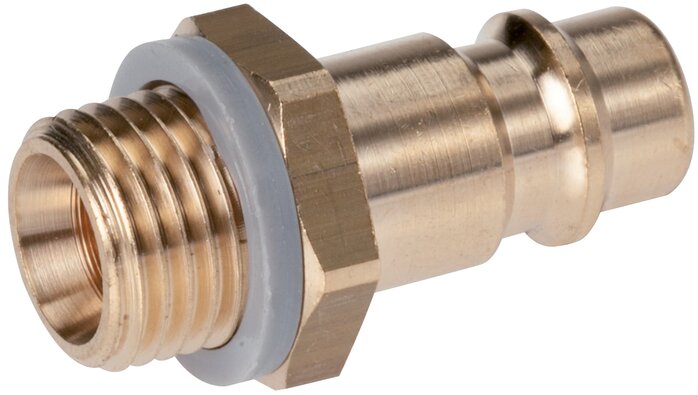

Coupling plug With Male thread, NW 7.2

Description

Materials:
Housing: Brass, nickel-plated brass, steel hardened, 1.4305, seal: NBR (stainless steel: FKM)

Temperature range:
-20°C to max. +100°C (stainless steel: -15°C to max. +200°C, plastic sleeve max. +80°C)

Operating pressure:
-0,95 bis 35 bar

Flow***:
Bolt lock: 1100 l/min (option -BA: 800 l/min), ball lock: 1850 l/min (option -BA: 750 l/min), ball lock/plastic sleeve: 2100 l/min

Note:
Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.

Compatible with**:
Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E ... 07), Festo (KD4 / KS4), IMI-Norgren (238), Aventics (CP1-NW 7 / 7,8) und viele andere deutsche Fabrikate

Optional:
Body made from 1.4404 -ES4A, with valve for shut-off on both sides -BA, NPT thread -NPT

***6 bar input pressure, 0,5 bar pressure difference

**Names and designations are partly trademarks of the manufacturers entered.

*R-thread

Find the right item

Material
Thread external
shut-off on both sides
Temperature range [°C]

Coupling plug With Male thread, NW 7.2: 20 of 36 items

Coupling plug (NW7,2) G 1/8"(male thread), Brass
  • Thread external

    G 1/8"

  • shut-off on both sides

    no

  • Temperature range [°C]

    -20 to +100

Immediately available

1,24 €

Coupling plug (NW7,2) G 1/4"(male thread), Brass
  • Thread external

    G 1/4"

  • shut-off on both sides

    no

  • Temperature range [°C]

    -20 to +100

Immediately available

1,16 €

Coupling plug (NW7,2) G 3/8"(male thread), Brass
  • Thread external

    G 3/8"

  • shut-off on both sides

    no

  • Temperature range [°C]

    -20 to +100

Immediately available

1,19 €

Coupling plug (NW7,2) G 1/2"(male thread), Brass
  • Thread external

    G 1/2"

  • shut-off on both sides

    no

  • Temperature range [°C]

    -20 to +100

Immediately available

2,06 €

KSG 18 NW7 MSV
Coupling plug (NW7,2) G 1/8"(male thread), Nickel-plated brass (KSG 18 NW7 MSV)

Nickel-plated brass Nickel-plated brass

Coupling plug (NW7,2) G 1/8"(male thread), Nickel-plated brass
  • Thread external

    G 1/8"

  • shut-off on both sides

    no

  • Temperature range [°C]

    -20 to +100

Immediately available

2,64 €

KSG 14 NW7 MSV
Coupling plug (NW7,2) G 1/4"(male thread), Nickel-plated brass (KSG 14 NW7 MSV)

Nickel-plated brass Nickel-plated brass

Coupling plug (NW7,2) G 1/4"(male thread), Nickel-plated brass
  • Thread external

    G 1/4"

  • shut-off on both sides

    no

  • Temperature range [°C]

    -20 to +100

Immediately available

2,64 €

KSG 38 NW7 MSV
Coupling plug (NW7,2) G 3/8"(male thread), Nickel-plated brass (KSG 38 NW7 MSV)

Nickel-plated brass Nickel-plated brass

Coupling plug (NW7,2) G 3/8"(male thread), Nickel-plated brass
  • Thread external

    G 3/8"

  • shut-off on both sides

    no

  • Temperature range [°C]

    -20 to +100

Immediately available

2,64 €

KSG 12 NW7 MSV
Coupling plug (NW7,2) G 1/2"(male thread), Nickel-plated brass (KSG 12 NW7 MSV)

Nickel-plated brass Nickel-plated brass

Coupling plug (NW7,2) G 1/2"(male thread), Nickel-plated brass
  • Thread external

    G 1/2"

  • shut-off on both sides

    no

  • Temperature range [°C]

    -20 to +100

Immediately available

3,43 €

KSG 18 NW7 ES
Coupling plug (NW7,2) G 1/8"(male thread), Stainless steel (KSG 18 NW7 ES)

Stainless steel Stainless steel

Coupling plug (NW7,2) G 1/8"(male thread), Stainless steel
  • Thread external

    G 1/8"

  • shut-off on both sides

    no

  • Temperature range [°C]

    -15 to +200

Immediately available

14,79 €

KSG 14 NW7 ES
Coupling plug (NW7,2) G 1/4"(male thread), Stainless steel (KSG 14 NW7 ES)

Stainless steel Stainless steel

Coupling plug (NW7,2) G 1/4"(male thread), Stainless steel
  • Thread external

    G 1/4"

  • shut-off on both sides

    no

  • Temperature range [°C]

    -15 to +200

Immediately available

15,89 €

KSG 38 NW7 ES
Coupling plug (NW7,2) G 3/8"(male thread), Stainless steel (KSG 38 NW7 ES)

Stainless steel Stainless steel

Coupling plug (NW7,2) G 3/8"(male thread), Stainless steel
  • Thread external

    G 3/8"

  • shut-off on both sides

    no

  • Temperature range [°C]

    -15 to +200

Immediately available

15,89 €

KSG 12 NW7 ES
Coupling plug (NW7,2) G 1/2"(male thread), Stainless steel (KSG 12 NW7 ES)

Stainless steel Stainless steel

Coupling plug (NW7,2) G 1/2"(male thread), Stainless steel
  • Thread external

    G 1/2"

  • shut-off on both sides

    no

  • Temperature range [°C]

    -15 to +200

Immediately available

21,51 €

KSG 18 NW7 ST
Coupling plug (NW7,2) G 1/8"(male thread), Hardened steel & zinc plated (KSG 18 NW7 ST)

Hardened <br>steel & zinc plated Hardened
steel & zinc plated

Coupling plug (NW7,2) G 1/8"(male thread), Hardened steel & zinc plated
  • Thread external

    G 1/8"

  • shut-off on both sides

    no

  • Temperature range [°C]

    -20 to +100

Immediately available

2,51 €

KSG 14 NW7 ST *
Coupling plug (NW7,2) R 1/4"(male thread), Hardened steel & zinc plated (KSG 14 NW7 ST)

Hardened <br>steel & zinc plated Hardened
steel & zinc plated

Coupling plug (NW7,2) R 1/4"(male thread), Hardened steel & zinc plated
  • Thread external

    R 1/4"

  • shut-off on both sides

    no

  • Temperature range [°C]

    -20 to +100

Immediately available

1,94 €

KSG 38 NW7 ST
Coupling plug (NW7,2) G 3/8"(male thread), Hardened steel & zinc plated (KSG 38 NW7 ST)

Hardened <br>steel & zinc plated Hardened
steel & zinc plated

Coupling plug (NW7,2) G 3/8"(male thread), Hardened steel & zinc plated
  • Thread external

    G 3/8"

  • shut-off on both sides

    no

  • Temperature range [°C]

    -20 to +100

Immediately available

2,12 €

KSG 12 NW7 ST
Coupling plug (NW7,2) G 1/2"(male thread), Hardened steel & zinc plated (KSG 12 NW7 ST)

Hardened <br>steel & zinc plated Hardened
steel & zinc plated

Coupling plug (NW7,2) G 1/2"(male thread), Hardened steel & zinc plated
  • Thread external

    G 1/2"

  • shut-off on both sides

    no

  • Temperature range [°C]

    -20 to +100

Immediately available

2,78 €

Coupling plug (NW7,2) G 1/8"(male thread), 1.4404
  • Thread external

    G 1/8"

  • shut-off on both sides

    no

  • Temperature range [°C]

    -15 to +200

Immediately available

24,74 €

Coupling plug (NW7,2) G 1/4"(male thread), 1.4404
  • Thread external

    G 1/4"

  • shut-off on both sides

    no

  • Temperature range [°C]

    -15 to +200

Immediately available

22,78 €

Coupling plug (NW7,2) G 3/8"(male thread), 1.4404
  • Thread external

    G 3/8"

  • shut-off on both sides

    no

  • Temperature range [°C]

    -15 to +200

Immediately available

18,81 €

Coupling plug (NW7,2) G 1/2"(male thread), 1.4404
  • Thread external

    G 1/2"

  • shut-off on both sides

    no

  • Temperature range [°C]

    -15 to +200

Immediately available

29,87 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
