Item group

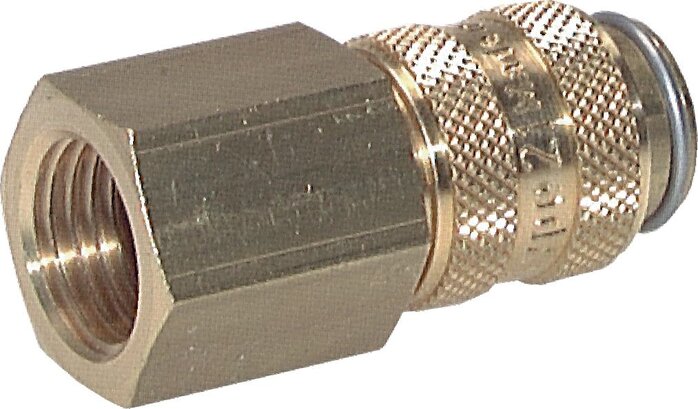

Coupling sockets With female thread, NW 5

Materials:

Body: brass, nickel-plated brass, hardened steel or stainless steel 1.4305, seal: NBR (stainless steel: FKM)

Temperature range:

-20°C to max. +100°C (Stainless steel: -15°C to max. +200°C)

Operating pressure:

-0,95 to 35 bar

Flow*:

510 l/min (in conjunction with blocking coupling plug -BA: 330 l/min)

Note:

Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.

Compatible with**:

Rectus (21, 90), Camozzi, EWO, KANI, Festo (KD3/KS3), IMI-Norgren (233), Aventics (CP1-NW 5)

Optional:

Body made from 1.4404 -ES4A, usable for plug shut-off on both sides -BA, NPT thread -NPT, red sliding sleeve -RO, green sliding sleeve -GR, blue sliding sleeve -BL, black sliding sleeve-SCH
*6 bar input pressure, 0,5 bar pressure difference
**Names and designations are partly trademarks of the manufacturers entered.

Documents:

More information Less information

Filter items

Permission
Please select
CE certificate (see declaration of conformity)
Please select
Material information
Please select
Measurement process
Please select
more filters
Coupling sockets With female thread, NW 5:
1 of 41 articles
Coupling socket (NW5) G 3/8"(Female thread), Nickel-plated brass(KDGI 38 NW5 MSVBA-BL)
KDGI 38 NW5 MSVBA-BL
Coupling socket (NW5) G 3/8"(Female thread), Nickel-plated brass
€45.07 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
