Item group

Coupling sockets With female thread, NW 7.2

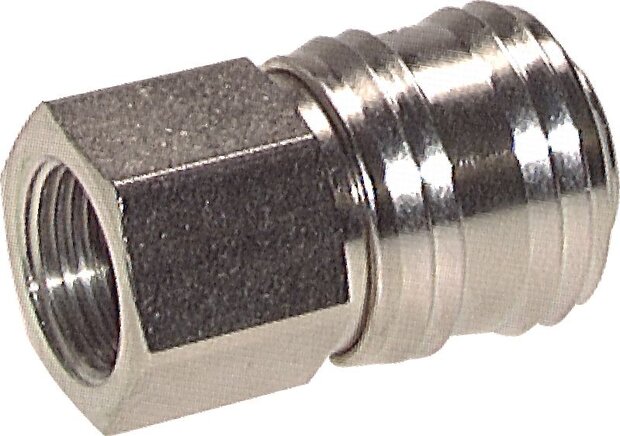

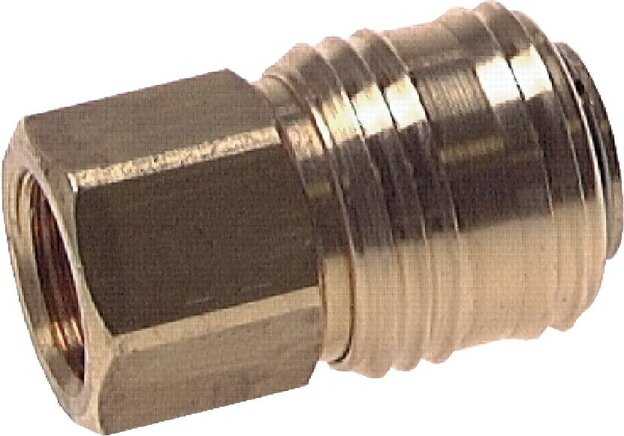

Exemplary representation: Brass Exemplary representation: Nickel-plated brass Exemplary representation: Stainless steel Exemplary representation: Special version BA detailed view: Plug dimensions

{{ $t('shop.display.artikelgruppe.youtube') }}:

Materials:

Housing: brass, nickel-plated brass, hardened steel or stainless steel 1.4305, seal: NBR (stainless steel: FKM)

Temperature range:

-20°C to max. +100°C (stainless steel: -15°C to max. +200°C, plastic sleeve max. +80°C)

Operating pressure:

-0,95 to 35 bar

Flow***:

Bolt lock: 1100 l/min (option -BA: 800 l/min), ball lock: 1850 l/min (option -BA: 750 l/min), ball lock/plastic sleeve: 2100 l/min

Note:

Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.

Compatible with**:

Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E ... 07), Festo (KD4 / KS4 / NPHS), IMI-Norgren (238), Aventics (CP1-NW 7 / 7.8) and many other German brands

Optional:

FKM seals instead of NBR seals -V, can be used for plugs blocking both sides -BA, NPT thread -NPT
***6 bar input pressure, 0,5 bar pressure difference**Names and designations are partly trademarks of the manufacturers entered.

{{ $t('shop.all.dokumente') }}:

{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ filter.Eigenschaft.EigenschaftName }}
{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
Coupling sockets With female thread, NW 7.2: {{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
Coupling socket (NW7,2) G 1/8"(Female thread), Brass
Coupling socket (NW7,2) G 1/4"(Female thread), Brass
Coupling socket (NW7,2) G 3/8"(Female thread), Brass
Coupling socket (NW7,2) G 1/2"(Female thread), Brass
Coupling socket (NW7,2) G 1/4"(Female thread), Nickel-plated brass
Coupling socket (NW7,2) G 3/8"(Female thread), Nickel-plated brass
Coupling socket (NW7,2) G 1/2"(Female thread), Nickel-plated brass
Coupling socket (NW7,2) G 1/4"(Female thread), Stainless steel
Coupling socket (NW7,2) G 3/8"(Female thread), Stainless steel
Coupling socket (NW7,2) G 1/2"(Female thread), Stainless steel
Coupling socket (NW7,2) G 1/8"(Female thread), Brass
Coupling socket (NW7,2) G 1/4"(Female thread), Brass
Coupling socket (NW7,2) G 3/8"(Female thread), Brass
Coupling socket (NW7,2) G 1/2"(Female thread), Brass
Coupling socket (NW7,2) G 1/4"(Female thread), Nickel-plated brass
Coupling socket (NW7,2) G 3/8"(Female thread), Nickel-plated brass
Coupling socket (NW7,2) G 1/2"(Female thread), Nickel-plated brass
Coupling socket (NW7,2) G 1/4"(Female thread), Brass
Coupling socket (NW7,2) G 3/8"(Female thread), Brass
Coupling socket (NW7,2) G 1/2"(Female thread), Brass
