Coupling sockets with hose screw connection, ARO / ORION NW 5.5

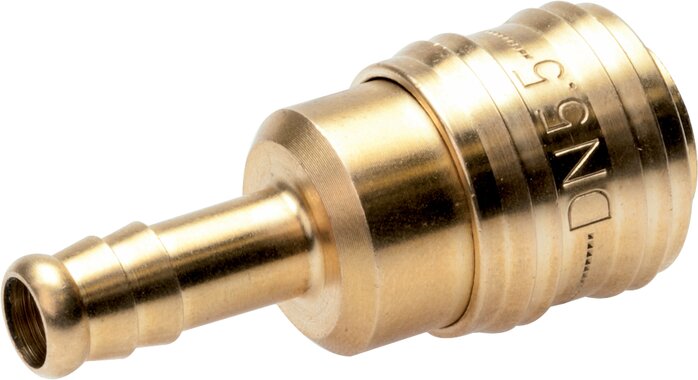

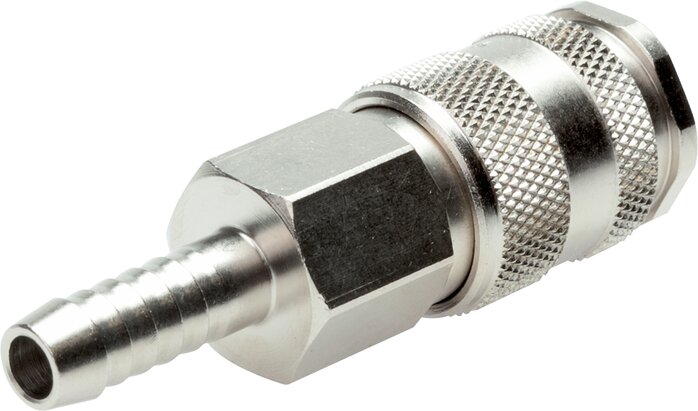

Exemplary representation: Coupling socket with grommet, ARO / ORION NW 5.5, standard Exemplary representation: Coupling socket with grommet, ARO / ORION NW 5.5, ball lock detailed view: Plug dimensions

Materials:

Type Standard: Body and sliding sleeve: brass, seal: NBR, type ball lock: Body: nickel-plated brass, sliding sleeve: hardened steel, nickel-plated, seals: NBR

Temperature range:

-20°C to +100°C

Operating pressure:

-0,95 to 35 bar

Flow*:

550 l/min (ball lock type: 1140 l/min)

Note:

These quick connect couplings with ARO / ORION profile NW 5.5 are mainly used in Switzerland, Belgium, Holland and Luxembourg. Despite looking similar to the coupling sockets widely used in Germany of nominal width 7.2, these couplings are not compatible with them!

Advantages of the ball lock:

•easy uncoupling under pressure,
•robust connection between plug and socket

Compatible with**:

ARO (210), ORION (44510), Cejn (300), Rectus (14, 22), JWL (512, 522, 523, 572)
*6 bar input pressure, 0,5 bar pressure difference**Names and designations are partly trademarks of the manufacturers entered.

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 297) atlas9_seiten/297.pdf
    Different compressed air couplings explained
