Item group

Coupling sockets with hose screw connection & bulkhead thread, Model series AP (will be discontinued)

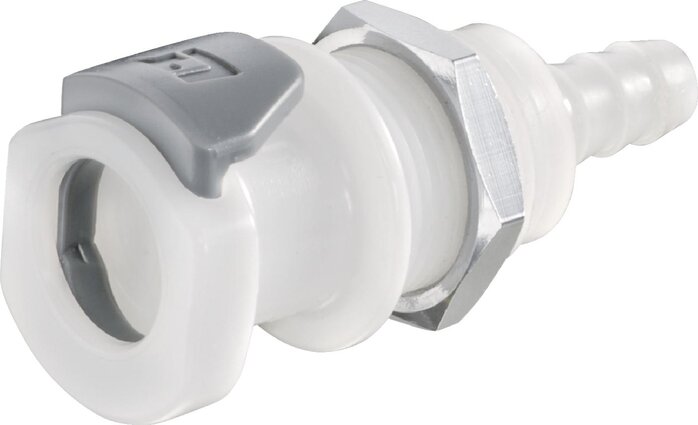

Exemplary representation: Coupling socket with grommet, POM Exemplary representation: Socket without valve detailed view: Plug dimensions

Plug diameter:

11 mm (holding groove approx. 3,4 mm)

Flow air (water)*:

700 - 1500 l/min (10 - 17 l/min)

Function:

Coupled by plugging the plug into the sleeve until you hear a “click”. Pressing the ergonomic plastic release button (for couplings with a tube connection protected against accidental unlocking) releases the plug once again. It is possible to combine coupling plugs and coupling sockets with and without a shut-off valve, and made of different materials as desired. The shut-off valve prevents the medium from spilling out when uncoupled.

Type POM:

Materials:

Body, valves and release button: POM (raw material in accordance with FDA), valve springs: Stainless steel AISI 316, seals: NBR, external spring below push-button: AISI 302, bulkhead nut: nickel-plated brass

Temperature range:

-40°C to max. +80°C

Operating pressure:

-0.8 to 8.3 bar

Media:

Compressed air, water, alcohol, glycol, mineral oils, petrol, oxygen**, carbon dioxide, mild chemicals

Sterilisation possible with:

Formalin, isopropyl alcohol, ethyl alcohol

Operating range:

For general applications. High resistance to mineral oils.

Polypropylene type:

Materials:

Body, valves and release button: polypropylene (raw material in accordance with FDA), valve springs: Stainless steel AISI 316, seals: EPDM, spring below push-button: AISI 302, bulkhead nut: Nickel-plated brass, bulkhead seal: EPDM

Temperature range:

0°C to max. +70°C

Operating pressure:

-0.8 to 7,2 bar (>+27°C observe pressure reductions: +40°C: max. 5,4 bar,+ +50°C: max. 4,3 bar,+ 60°C: max. 3,4 bar,+ +70°C: max 2.0 bar)

Media:

Compressed air, water, many acids and alkaline solutions, alcohol, glycol, MEK, oxygen**, ozone, carbon dioxide, many chemicals

Sterilisation possible with:

Formalin, isopropyl alcohol, ethyl alcohol, ethylene oxide, gamma radiation

Operating range:

Suited for use with many chemicals. Not resistant to mineral oils.

Compatible with****:

CPC Colder APC, CPC Colder EFC12, LinkTech series 50AC, LinkTech series 50PP

Bulkhead thread:

UNS 11/16"-24 (Ø 17.5 mm), max. bulkhead thickness: 12 mm
*When pressure drops by 1 bar (depending on configuration of coupling combination: with/without valve, connection dimension, ... is the flow within the indicated range), **be sure to clean before using with oxygen.****Names and designations are in part registered trademarks of the respective manufacturers.

{{ $t('shop.all.dokumente') }}:

    • Catalogue page Atlas 9 (Page 316) atlas9_seiten/316.pdf
{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ filter.Eigenschaft.EigenschaftName }}
{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
Coupling sockets with hose screw connection & bulkhead thread, Model series AP (will be discontinued):
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
KDSS 9 AP POM
Bulkhead coupling socket (AP) with hose screw connection, POM
15,86€ incl. VAT
