Type nickel-plated brass: Body: nickel-plated brass, sliding sleeve: nickel-plated steel, seal: NBR
Type brass/steel: Body: nickel-plated bras/steel (QPQ), sliding sleeve: nickel-plated brass, seal: NBR
Type stainless steel: Body and sliding sleeve: 1.4305, seal: FKM
Item group
Coupling sockets with hose screw connection, NW 10
YouTube videos:
Materials:
Temperature range:
-20°C to max. +100°C (Stainless steel: -15°C to max. +200°C)
Operating pressure:
-0,95 to 35 bar
Compatible with**:
Rectus (27, 41, 1700, 1727), TEMA (1700), CEJN (410)
Flow****:
Nickel-plated brass/M 1.4305: 2150 l/min (option: -BA: 1020 l/min), brass/steel: 3600 l/min
Note:
Coupling plugs with valve for double-sided shut off (-BA) can only be used with the special coupling sockets (-BA) provided for them.
Optional:
Body made from 1.4404 -ES4A, usable for plug shut-off on both sides -BA
***Some names and designations may be registered trademarks of the respective manufacturers, ****6 bar inlet pressure, 0.5 bar pressure difference
*clutch can be used with plug without shut-off and with shut-off <b>-BA</b>. For increased flow rates in conjunction with non-shut-off coupling plugs, the actuating pin in the coupling socket can be dismantled.
*clutch can be used with plug without shut-off and with shut-off <b>-BA</b>. For increased flow rates in conjunction with non-shut-off coupling plugs, the actuating pin in the coupling socket can be dismantled.
Documents:
More information
Filter items
Coupling sockets with hose screw connection, NW 10:
15 of 15 articles
€29.46
incl. VAT
€29.46
incl. VAT
€29.46
incl. VAT
KDS 10 NW10 ST
Coupling socket (NW10) 10mm hose, Brass / steel
€38.95
incl. VAT

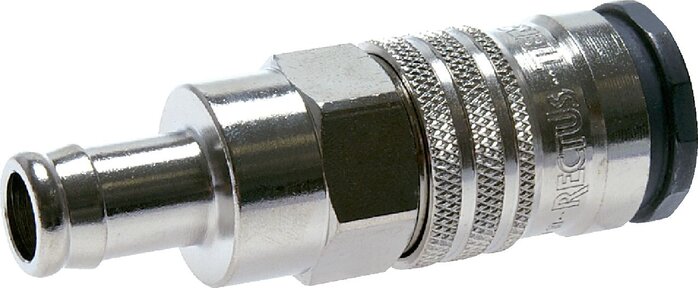

KDS 13 NW10 ST
Coupling socket (NW10) 13 (1/2")mm hose, Brass / steel
€38.95
incl. VAT
KDS 19 NW10 ST
Coupling socket (NW10) 19 (3/4")mm hose, Brass / steel
€40.50
incl. VAT

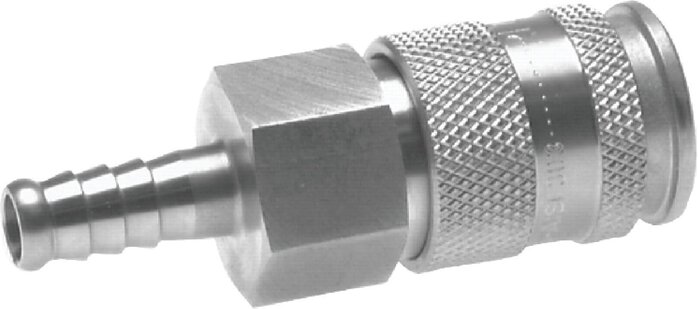

KDS 9 NW10 ES *
Coupling socket (NW10) 9 (3/8")mm hose, Stainless steel
€518.67
incl. VAT
KDS 13 NW10 ES *
Coupling socket (NW10) 13 (1/2")mm hose, Stainless steel
€518.67
incl. VAT
KDS 19 NW10 ES *
Coupling socket (NW10) 19 (3/4")mm hose, Stainless steel
€547.67
incl. VAT
KDS 9 NW10 ES4A *
Coupling socket (NW10) 9 (3/8")mm hose, 1.4404
€480.69
incl. VAT
KDS 13 NW10 ES4A *
Coupling socket (NW10) 13 (1/2")mm hose, 1.4404
€566.71
incl. VAT
KDS 19 NW10 ES4A *
Coupling socket (NW10) 19 (3/4")mm hose, 1.4404
€529.03
incl. VAT
Not in stock
€99.23
incl. VAT
KDS 13 NW10 BA
Coupling socket (NW10) 13 (1/2")mm hose, Nickel-plated brass
€97.01
incl. VAT
KDS 19 NW10 BA
Coupling socket (NW10) 19 (3/4")mm hose, Nickel-plated brass
€97.01
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
