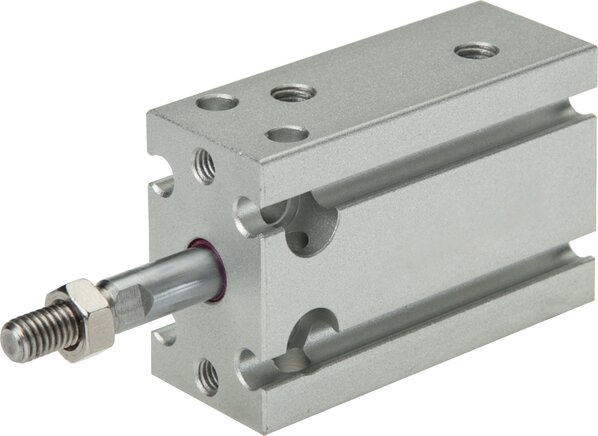

Direct assembly cylinder, double acting, EU

Description

Materials:
Body: Anodised aluminium, piston rod: Stainless steel, piston: Aluminium with magnet insertion, seals: NBR / PUR

Temperature range:
-10°C bis +60°C

Operating pressure:
1 - 7 bar

Version:
With Magnetic piston

Cylinder switch type:
D

Advantages:
•space saving through square housing, which allows a direct mounting without mounting material •can be fastened on each of the 6 sides of the square, •main mounting dimensions identical to SMC series CDU / CDUK

Find the right item

Version
Piston Ø [mm]
Stroke [mm]
A1 [mm]
A2 [mm]
A3 [mm]
B [mm]
C [mm]
D [mm]
D1 [mm]
D2 [mm]
E
E1 [mm]
E2 [mm]
G
G1 [mm]
G2 [mm]
G3 [mm]
G4 [mm]
H [mm]
H1 [mm]
H2 [mm]
H3 [mm]
H4 [mm]
J [mm]
J1 [mm]
K [mm]
K1 [mm]
K2 [mm]
K3 [mm]
K4 [mm]
SW [mm]

Direct assembly cylinder, double acting, EU: 20 of 79 items

Direct assembly cylinder, Piston 6mm,stroke 5mm, Standard
  • Version

    Standard

  • Piston Ø [mm]

    6

  • Stroke [mm]

    5

Immediately available

33,85 €

Direct assembly cylinder, Piston 6mm,stroke 10mm, Standard
  • Version

    Standard

  • Piston Ø [mm]

    6

  • Stroke [mm]

    10

Immediately available

35,25 €

Direct assembly cylinder, Piston 6mm,stroke 15mm, Standard
  • Version

    Standard

  • Piston Ø [mm]

    6

  • Stroke [mm]

    15

Immediately available

36,65 €

Direct assembly cylinder, Piston 6mm,stroke 20mm, Standard
  • Version

    Standard

  • Piston Ø [mm]

    6

  • Stroke [mm]

    20

Immediately available

38,05 €

Direct assembly cylinder, Piston 6mm,stroke 25mm, Standard
  • Version

    Standard

  • Piston Ø [mm]

    6

  • Stroke [mm]

    25

Immediately available

39,80 €

Direct assembly cylinder, Piston 6mm,stroke 30mm, Standard
  • Version

    Standard

  • Piston Ø [mm]

    6

  • Stroke [mm]

    30

Immediately available

41,20 €

Direct assembly cylinder, Piston 10mm,stroke 5mm, Standard
  • Version

    Standard

  • Piston Ø [mm]

    10

  • Stroke [mm]

    5

Immediately available

33,85 €

Direct assembly cylinder, Piston 10mm,stroke 10mm, Standard
  • Version

    Standard

  • Piston Ø [mm]

    10

  • Stroke [mm]

    10

Immediately available

35,25 €

Direct assembly cylinder, Piston 10mm,stroke 15mm, Standard
  • Version

    Standard

  • Piston Ø [mm]

    10

  • Stroke [mm]

    15

Immediately available

36,65 €

Direct assembly cylinder, Piston 10mm,stroke 20mm, Standard
  • Version

    Standard

  • Piston Ø [mm]

    10

  • Stroke [mm]

    20

Immediately available

38,05 €

Direct assembly cylinder, Piston 10mm,stroke 25mm, Standard
  • Version

    Standard

  • Piston Ø [mm]

    10

  • Stroke [mm]

    25

Immediately available

39,80 €

Direct assembly cylinder, Piston 10mm,stroke 30mm, Standard
  • Version

    Standard

  • Piston Ø [mm]

    10

  • Stroke [mm]

    30

Immediately available

41,20 €

Direct assembly cylinder, Piston 10mm,stroke 5mm, non-rotating
  • Version

    non-rotating

  • Piston Ø [mm]

    10

  • Stroke [mm]

    5

Immediately available

48,15 €

Direct assembly cylinder, Piston 10mm,stroke 10mm, non-rotating
  • Version

    non-rotating

  • Piston Ø [mm]

    10

  • Stroke [mm]

    10

Immediately available

50,20 €

Direct assembly cylinder, Piston 10mm,stroke 15mm, non-rotating
  • Version

    non-rotating

  • Piston Ø [mm]

    10

  • Stroke [mm]

    15

Immediately available

52,25 €

Direct assembly cylinder, Piston 10mm,stroke 20mm, non-rotating
  • Version

    non-rotating

  • Piston Ø [mm]

    10

  • Stroke [mm]

    20

Immediately available

54,30 €

Direct assembly cylinder, Piston 10mm,stroke 25mm, non-rotating
  • Version

    non-rotating

  • Piston Ø [mm]

    10

  • Stroke [mm]

    25

Immediately available

57,40 €

Direct assembly cylinder, Piston 10mm,stroke 30mm, non-rotating
  • Version

    non-rotating

  • Piston Ø [mm]

    10

  • Stroke [mm]

    30

Immediately available

60,45 €

Direct assembly cylinder, Piston 10mm,stroke 40mm, non-rotating
  • Version

    non-rotating

  • Piston Ø [mm]

    10

  • Stroke [mm]

    40

Immediately available

66,60 €

Direct assembly cylinder, Piston 16mm,stroke 5mm, Standard
  • Version

    Standard

  • Piston Ø [mm]

    16

  • Stroke [mm]

    5

Immediately available

36,80 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
