Item group

Disks with chamfer (medium version), DIN 125 B /ISO 7090

Name: Washer, DIN 125 B, M 5 (5,3x10mm), zinc plated steel
Brand: Landefeld
SKU: 125B-5
Price: 0.82 EUR
Availability: InStock

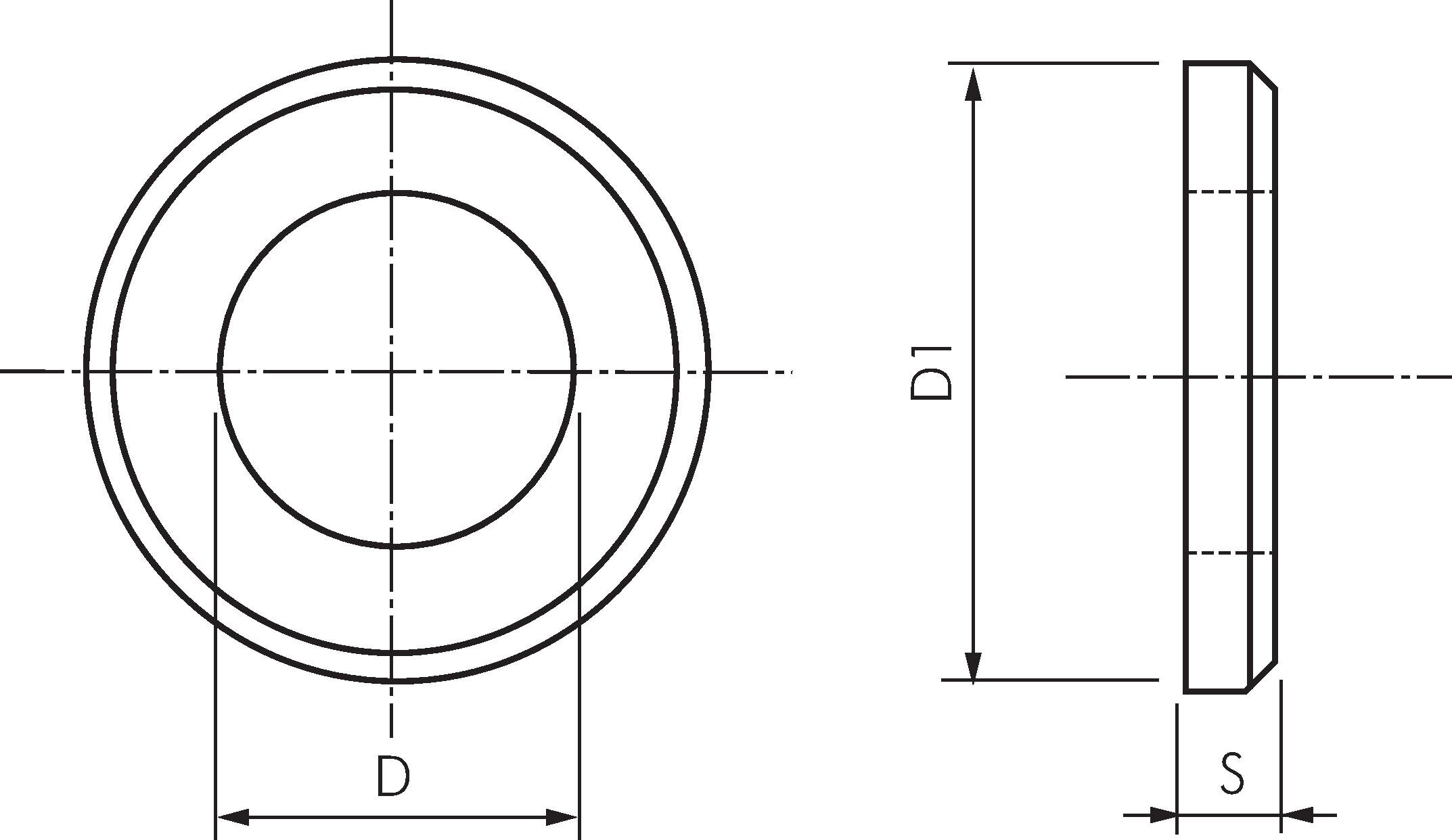

Exemplary representation: Chamfered washer DIN 125 B / ISO 7090

Materials:

Zinc plated steel

Documents:

Catalogue page Atlas 9 (Page 1128) (PDF)

More information

Disks with chamfer (medium version), DIN 125 B /ISO 7090:

13 of 13 articles

125B-5

Washer, DIN 125 B, M 5 (5,3x10mm), zinc plated steel

from €0.017 incl. VAT

Quantity

pcs

Immediately available

for screws	Inner diameter D [mm]	Outer diameter D1 [mm]	Strength S [mm]
M 5	5,3	10	1

125B-6

Washer, DIN 125 B, M 6 (6,4x12mm), zinc plated steel

from €0.0234 incl. VAT

Quantity

pcs

Immediately available

for screws	Inner diameter D [mm]	Outer diameter D1 [mm]	Strength S [mm]
M 6	6,4	12	1,6

125B-8

Washer, DIN 125 B, M 8 (8,4x16mm), zinc plated steel

from €0.0328 incl. VAT

Quantity

pcs

Immediately available

for screws	Inner diameter D [mm]	Outer diameter D1 [mm]	Strength S [mm]
M 8	8,4	16	1,6

125B-10

Washer, DIN 125 B, M 10 (10,5x20mm), zinc plated steel

from €0.0628 incl. VAT

Quantity

pcs

Immediately available

for screws	Inner diameter D [mm]	Outer diameter D1 [mm]	Strength S [mm]
M 10	10,5	20	2

125B-12

Washer, DIN 125 B, M 12 (13x24mm), zinc plated steel

from €0.185 incl. VAT

Quantity

pcs

Immediately available

for screws	Inner diameter D [mm]	Outer diameter D1 [mm]	Strength S [mm]
M 12	13	24	2,5

125B-14

Washer, DIN 125 B, M 14 (15x28mm), zinc plated steel

from €0.1482 incl. VAT

Quantity

pcs

Immediately available

for screws	Inner diameter D [mm]	Outer diameter D1 [mm]	Strength S [mm]
M 14	15	28	2,5

125B-16

Washer, DIN 125 B, M 16 (17x30mm), zinc plated steel

from €0.1947 incl. VAT

Quantity

pcs

Immediately available

for screws	Inner diameter D [mm]	Outer diameter D1 [mm]	Strength S [mm]
M 16	17	30	3

125B-18

Washer, DIN 125 B, M 18 (19x34mm), zinc plated steel

from €0.2191 incl. VAT

Quantity

pcs

Immediately available

for screws	Inner diameter D [mm]	Outer diameter D1 [mm]	Strength S [mm]
M 18	19	34	3

125B-20

Washer, DIN 125 B, M 20 (21x37mm), zinc plated steel

from €0.2773 incl. VAT

Quantity

pcs

Immediately available

for screws	Inner diameter D [mm]	Outer diameter D1 [mm]	Strength S [mm]
M 20	21	37	3

125B-22

Washer, DIN 125 B, M 22 (23x39mm), zinc plated steel

from €0.2649 incl. VAT

Quantity

pcs

Immediately available

for screws	Inner diameter D [mm]	Outer diameter D1 [mm]	Strength S [mm]
M 22	23	39	3

125B-24

Washer, DIN 125 B, M 24 (25x44mm), zinc plated steel

from €0.5461 incl. VAT

Quantity

pcs

Immediately available

for screws	Inner diameter D [mm]	Outer diameter D1 [mm]	Strength S [mm]
M 24	25	44	4

125B-27

Washer, DIN 125 B, M 27 (28x50mm), zinc plated steel

from €0.6628 incl. VAT

Quantity

pcs

Immediately available

for screws	Inner diameter D [mm]	Outer diameter D1 [mm]	Strength S [mm]
M 27	28	50	4

125B-30

Washer, DIN 125 B, M 30 (31x56mm), zinc plated steel

from €0.7054 incl. VAT

Quantity

pcs

Immediately available

for screws	Inner diameter D [mm]	Outer diameter D1 [mm]	Strength S [mm]
M 30	31	56	4

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
