Elbow pivot joints

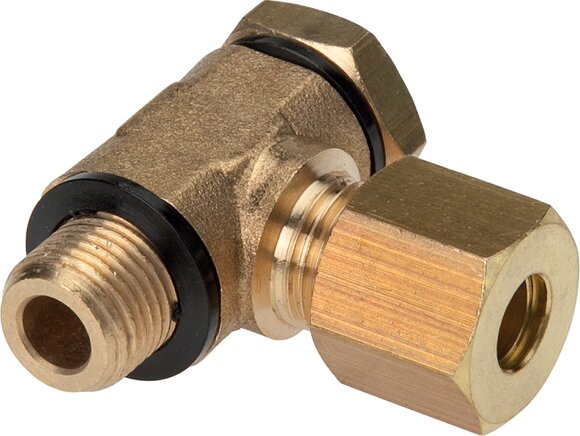

Exemplary representation: Angular swivel elbow fitting, brass

Temperature range:

-60°C up to max. +300°C (with seal: -20°C up to max. +80°C)

Recommended raw materials:

Copper, polyamide (with reinforced sleeve)

Note:

The brass compression ring screw connections cannot be combined with the cutting ring pipe screw connectors ISO 8434-1 (DIN 2353). When using soft copper tube a correction factor of 0.65 must be used (pressure x 0.65). When using polyamide tube the operating pressure of the tube applies.

Materials:

Body: Brass, seals: polyamide
*Seal: Zinc plated steel, with NBR insert

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 138) atlas9_seiten/138.pdf
    Assembling brass compression ring fittings in a technically correct manner
