Item group
Elbow push in fittings, ES LE / PVDF
Materials:
Type stainless steel: Body and release ring: 1.4401, seals FKM, green (FDA 21 CFR 177.2600), Holding claws: Stainless steel 1.4310, Lubricant: Silicone grease (NSF / ANSI 51 & 61)
Type PVDF: body and release ring: PVDF (FDA-approved), thread part: stainless steel 1.4401, seals: FKM, green (FDA 21 CFR 177.2600), retaining claws: Stainless steel 1.4310, lubricant: Silicone grease (NSF / ANSI 51 & 61)
Temperature range:
Type stainless steel: -20 °C to +200 °C (Ø 16: -15°C to +190°C)
Type PVDF: -20 °C to +120 °C
Operating pressure:
Type stainless steel: -0.95 to 20 bar
Type PVDF: Ø 4 - 6 mm: -0.95 to 20 bar (+20 °C), -0.95 to 10 bar (+100 °C), -0.95 to 3 bar (+120 °C), Ø 8 mm: -0.95 to 20 bar (+20 °C), -0.95 to 8 bar (+100 °C), -0.95 to 3 bar (+120 °C), Ø 10 - 12 mm: -0.95 to 12 bar (+20 °C), -0.95 to 6 bar (+100 °C), -0.95 to 3 bar (+120 °C)
Media:
oiled and unoiled compressed air, non-hazardous gasses and liquids
Advantages:
•Available with conical thread or with cylindrical thread with chambered O-ring,
•Gaskets and lubricants with approval according to FDA or NSF/ANSI,
•Used plastics are FDA approved
•type PVDF: lighter and cheaper than push-in fittings made of stainless steel with simultaneous high chemical resistance,
•type PVDF: transparent body allows visibility of the medium inside the connector
•Gaskets and lubricants with approval according to FDA or NSF/ANSI,
•Used plastics are FDA approved
•type PVDF: lighter and cheaper than push-in fittings made of stainless steel with simultaneous high chemical resistance,
•type PVDF: transparent body allows visibility of the medium inside the connector
Documents:
More information
Filter items
more filters
Elbow push in fittings, ES LE / PVDF:
10 of 10 articles
IQSL 40 ES LE
Elbow push-in fitting 4mm, IQS-ES LE/PVDF
€30.36
incl. VAT
IQSL 60 ES LE
Elbow push-in fitting 6mm, IQS-ES LE/PVDF
€32.15
incl. VAT
IQSL 80 ES LE
Elbow push-in fitting 8mm, IQS-ES LE/PVDF
€37.54
incl. VAT
IQSL 100 ES LE
Elbow push-in fitting 10mm, IQS-ES LE/PVDF
€45.17
incl. VAT
IQSL 120 ES LE
Elbow push-in fitting 12mm, IQS-ES LE/PVDF
€52.44
incl. VAT
IQSL 40 PVDF
Elbow push-in fitting 4mm, IQS-ES LE/PVDF
€20.96
incl. VAT
IQSL 60 PVDF
Elbow push-in fitting 6mm, IQS-ES LE/PVDF
€22.16
incl. VAT

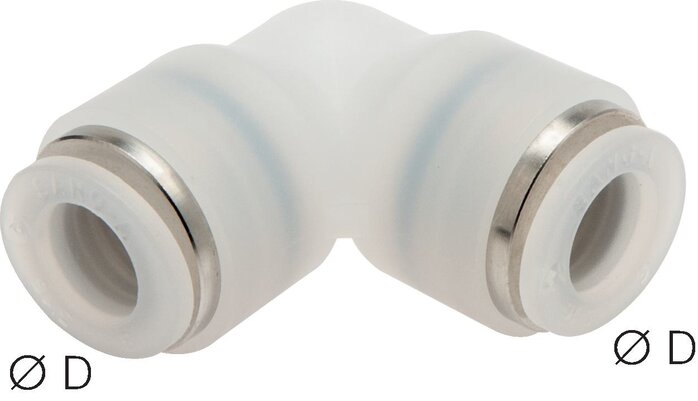

IQSL 80 PVDF
Elbow push-in fitting 8mm, IQS-ES LE/PVDF
€23.47
incl. VAT
IQSL 100 PVDF
Elbow push-in fitting 10mm, IQS-ES LE/PVDF
€25.80
incl. VAT
IQSL 120 PVDF
Elbow push-in fitting 12mm, IQS-ES LE/PVDF
€32.21
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
