Item group

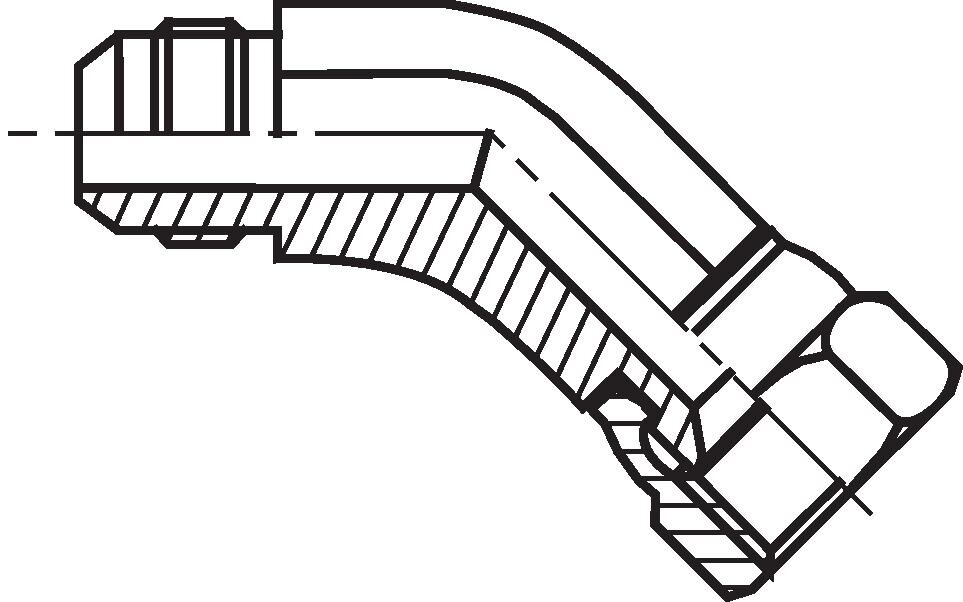

Elbow screw connections 45° with JIC-thread (internal / external), up to 310 bar
*the safety factor reached in tests with hydraulic oil was four-times, please ask in individual cases
Documents:
More information
Filter items
Elbow screw connections 45° with JIC-thread (internal / external), up to 310 bar:
17 of 17 articles
€19.62
incl. VAT
€35.91
incl. VAT
€18.65
incl. VAT
€21.90
incl. VAT
€32.39
incl. VAT
WE 11/1645 JIC

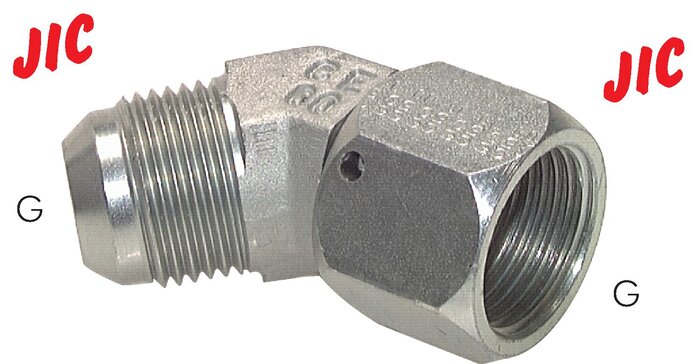

45°-screw-in elbow, UN 1-1/16"-12 (JIC), Zinc plated steel
€98.97
incl. VAT
WE 15/1645 JIC
45°-screw-in elbow, UN 1-5/16"-12 (JIC), Zinc plated steel
€56.72
incl. VAT
€105.84
incl. VAT
WE 7/1645 JIC ES

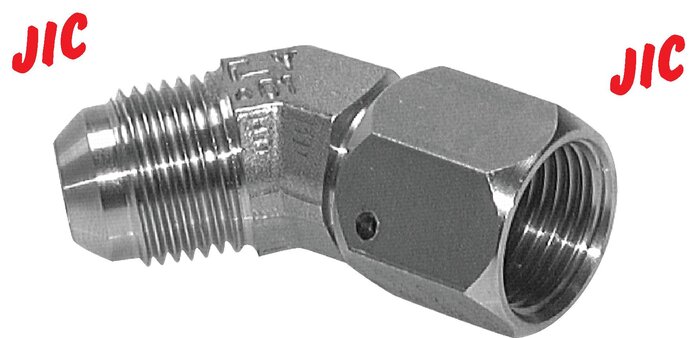

45°-screw-in elbow, UNF 7/16"-20 (JIC), AISI 316
€228.29
incl. VAT
WE 1/245 JIC ES
45°-screw-in elbow, UNF 1/2"-20 (JIC), AISI 316
€233.54
incl. VAT
WE 9/1645 JIC ES
45°-screw-in elbow, UNF 9/16"-18 (JIC), AISI 316
€247.37
incl. VAT
WE 3/445 JIC ES
45°-screw-in elbow, UNF 3/4"-16 (JIC), AISI 316
€303.90
incl. VAT
WE 7/845 JIC ES
45°-screw-in elbow, UNF 7/8"-14 (JIC), AISI 316
€368.13
incl. VAT
WE 11/1645 JIC ES
45°-screw-in elbow, UN 1-1/16"-12 (JIC), AISI 316
€472.26
incl. VAT
WE 15/1645 JIC ES
45°-screw-in elbow, UN 1-5/16"-12 (JIC), AISI 316
€627.45
incl. VAT
WE 15/845 JIC ES
45°-screw-in elbow, UN 1-5/8"-12 (JIC), AISI 316
€879.92
incl. VAT
Not in stock
WE 17/845 JIC ES
45°-screw-in elbow, UN 1-7/8"-12 (JIC), AISI 316
€1,150.28
incl. VAT
Not in stock
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
