Item group

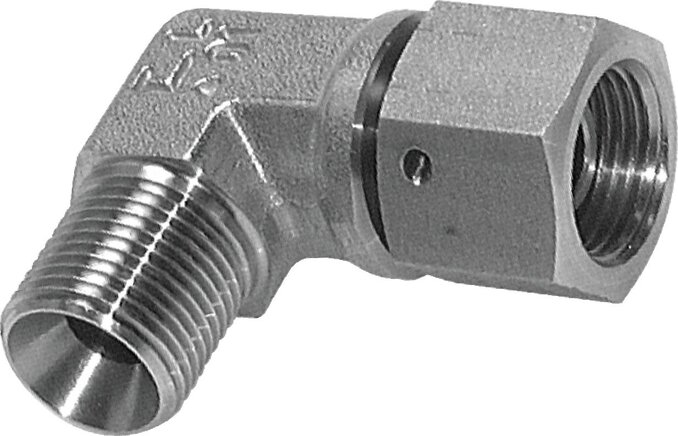

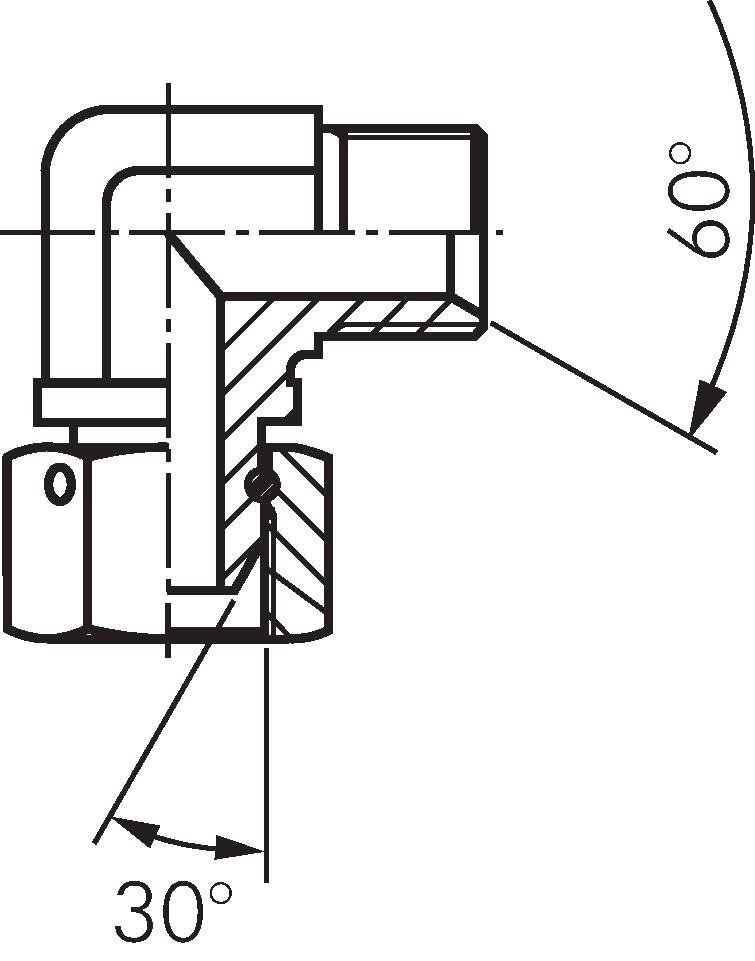

Elbow screw connections 90° with G-thread (60° conical hose nipple, internal/external), up to 475 bar
*the safety factor reached in tests with hydraulic oil was four-times, please ask in individual cases
Documents:
More information
Filter items
Elbow screw connections 90° with G-thread (60° conical hose nipple, internal/external), up to 475 bar:
18 of 18 articles
€16.33
incl. VAT
€12.23
incl. VAT
€16.93
incl. VAT
€25.25
incl. VAT
€34.16
incl. VAT
€52.35
incl. VAT
€127.98
incl. VAT
€208.40
incl. VAT
€323.49
incl. VAT
WE 18 HD ES
90° screw-in elbow, 60° cone, G 1/8", AISI 316
€65.47
incl. VAT
WE 14 HD ES
90° screw-in elbow, 60° cone, G 1/4", AISI 316
€78.42
incl. VAT
WE 38 HD ES
90° screw-in elbow, 60° cone, G 3/8", AISI 316
€88.70
incl. VAT
WE 12 HD ES
90° screw-in elbow, 60° cone, G 1/2", AISI 316
€105.09
incl. VAT
WE 34 HD ES
90° screw-in elbow, 60° cone, G 3/4", AISI 316
€184.88
incl. VAT
WE 10 HD ES
90° screw-in elbow, 60° cone, G 1", AISI 316
€225.41
incl. VAT
WE 114 HD ES
90° screw-in elbow, 60° cone, G 1-1/4", AISI 316
€283.85
incl. VAT
WE 112 HD ES
90° screw-in elbow, 60° cone, G 1-1/2", AISI 316
€590.07
incl. VAT
WE 20 HD ES
90° screw-in elbow, 60° cone, G 2", AISI 316
€1,211.96
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
