Item group

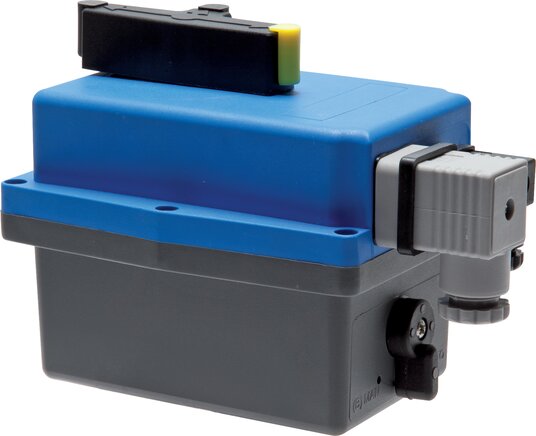

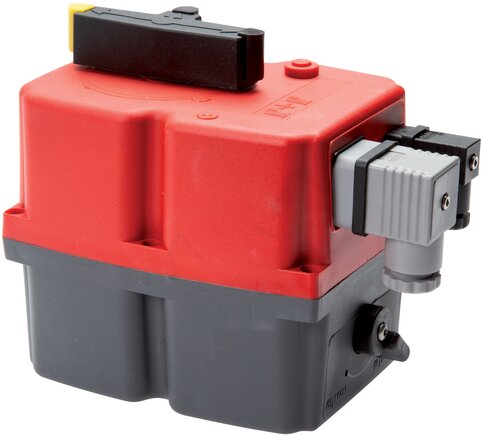

Electrically driven rotary actuator
Description:
Electrical rotary actuator with optical position indicator, manual emergency operation and switch room heating. Two additional limit switches are installed for further control requirements. An electronic torque limiting unit prevents damage in the event of overload. The manual emergency operation can be done without dismantling the external cladding. Do not install upside down!
Materials:
Body: PA 6
Temperature range:
-20°C to +70°C
Voltage:
Type 230: 24 - 240 V AC/DC (sanitation and special industrial actuator 85 - 240 V AC/DC, type 24: 24 V AC/DC, (actuators can be powered with AC or DC voltage).
Protection class:
IP 67 (sanitary actuator and special industrial drive: IP 65)
Power-on time:
75%
Installation position:
arbitrary, but not at the top
Optional für Universal-Industrieantriebe:
"Battery Safety Return" for emergency closing NC (default configuration) or emergency opening NO (conversion with a jumper) when there is a power failure -BSR, Positioning system 0 - 10 V or 4 - 20 mA (conversion with a jumper), precision: 3%, linearity: 2%, hysteresis: 3%, switch position NC or NO (conversion with a jumper) -DPS
Retrofitting sets for universal industrial drives:
•"Battery safety return" for emergency closing NC (default configuration) or emergency opening NO (switch using jumpers) in case of power failure
•Positioning system 0 - 10 V or 4 - 20 mA (conversion with a jumper), precision: 3%, linearity: 2%, hysteresis: 3%, switch position NC or NO (conversion with a jumper)
Advantages:

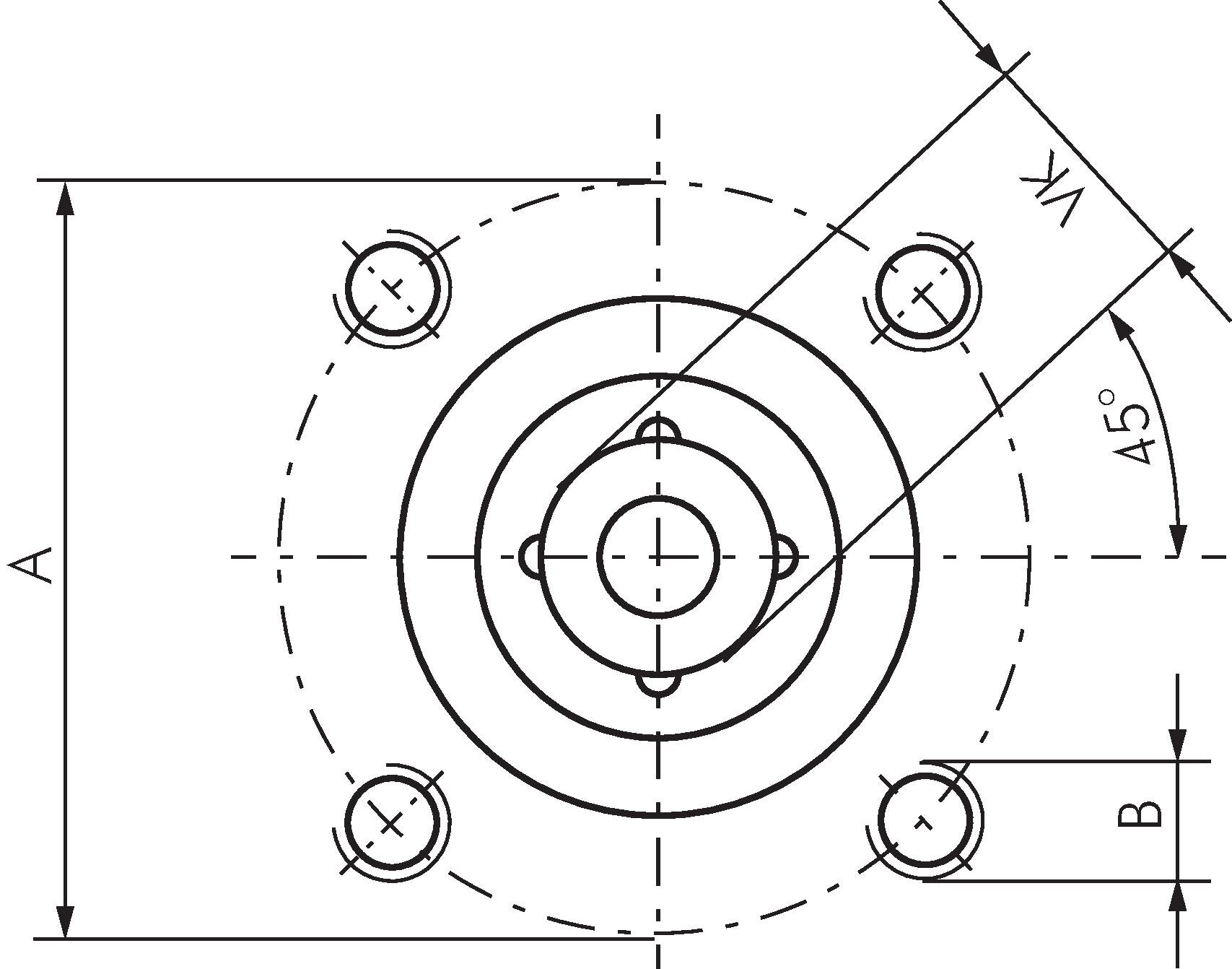

•Universal mounting flange according to ISO 5211 suitable for several connection configurations and square dimensions,
•manual emergency actuation,
•2 additional limit switches,
•torque cut-off,
•variable voltage (DC or AC),
•heater integrated in the drive housing,
•Universal industrial drive can be retrofitted with a retrofitting set with a positioning system or "Battery Safety Return"
•manual emergency actuation,
•2 additional limit switches,
•torque cut-off,
•variable voltage (DC or AC),
•heater integrated in the drive housing,
•Universal industrial drive can be retrofitted with a retrofitting set with a positioning system or "Battery Safety Return"
*max. torque (not for continuous operation), **not for sizes 6 and 7
{{ $t('shop.all.dokumente') }}:
Catalogue page Atlas 9 (Page 542) atlas9_seiten/542.pdf
Documentation: electrically actuated ball valves doku/kheli.pdf
Documentation: ELU DPS operating and installation instructions doku/anleitung_elu_dps.pdf
Documentation: ELU BSR operating and installation instructions doku/anleitung_elu_bsr.pdf
Function and structure of an electrical ball valve
Secure electrically operated ball valves with the BSR system!
Direct assembly flange as per ISO 5211 – A simple and fast solution!
Documentation: electrically actuated ball valves doku/kheli.pdf
Documentation: ELU DPS operating and installation instructions doku/anleitung_elu_dps.pdf
Documentation: ELU BSR operating and installation instructions doku/anleitung_elu_bsr.pdf
Function and structure of an electrical ball valve
Secure electrically operated ball valves with the BSR system!
Direct assembly flange as per ISO 5211 – A simple and fast solution!
