Item group

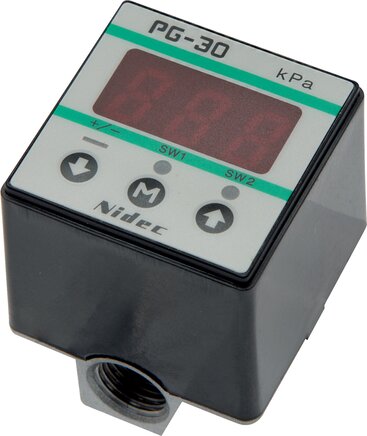

Electronic pressure switch - Cube, up to 10 bar
Materials:
Body: PBT, aluminium, stainless steel, parts coming in contact with media: aluminium (type stainless steel: 1.4435)
Display:
3-digit LED display
Temperature range:
-10 to +50 °C
Protection class:
IP 65
Power supply:
10,8 to 30 V (DC)
Power input:
50 mA
Electrical connection:
2 MTR cable (5-core)
Display unit:
kPa, kgf/cm², gf/cm², mm Hg, mm H2O, bar, mbar, psi
Control output (PNP):
2 switching outputs (normally open, normally closed, window and hysteresis freely adjustable per switching output), max. 100 mA (DC)
Switching accuracy:
± 0,3 % of the range
analogue output:
1 - 5 V
Accuracy of the analogue output:
± 0,2 V
Connection:

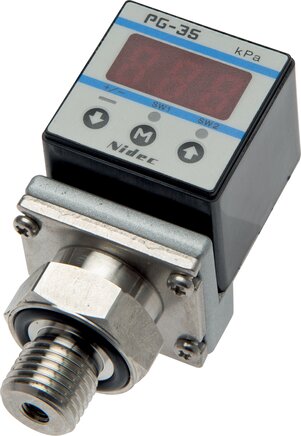

R 1/8" (FT), conical (type stainless steel: G 1/4" (MT) or M 5 (FT))
Media:
Compressed air, non-aggressive gases, vacuum (type stainless steel - also aggressive gases and fluids)
Advantages:
•no moving parts, hence no-wear measurement,
•easily readable LED pressure reading,
•different units of pressure can be set,
•small structural shape (30 x 30 x 35 mm)
•easily readable LED pressure reading,
•different units of pressure can be set,
•small structural shape (30 x 30 x 35 mm)
Documents:
More information
Filter items
Electronic pressure switch - Cube, up to 10 bar:
4 of 4 articles
€345.10
incl. VAT
€345.10
incl. VAT
€783.41
incl. VAT
€783.41
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
