Item group

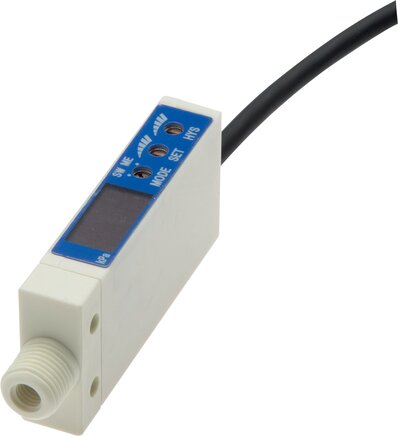

Electronic pressure switches - 10 mm width, up to 10 bar
Materials:
Body: polycarbonate, threaded connection: POM, seal: FKM
Display:
2-digit LED display
Temperature range:
-10 to +60 °C
Protection class:
IP 40
Power supply:
10,8 to 26,4 V (DC)
Power input:
35 mA
Electrical connection:
1,5 MTR cable (4-wire)
Control output (PNP):
1 switching output (normally open, switching point and hysteresis adjustable via potentiometer), max. 80 mA (DC)
Switching accuracy:
± 3 % of the range
Switch-back difference (hysteresis)
1 to 15 % of the value that has been set (can be set via potentiometer)
analogue output:
1 - 5 V
Accuracy of the analogue output:
± 0,1 V
Connection:
R 1/8" (male thread) or M5 (female thread)
Media:
Compressed air, non-aggressive gases, vacuum
Advantages:
•no moving parts, hence no-wear measurement,
•switching point and hysteresis adjustable with a potentiometer
•connection via flange or M 5 female thread or R 1/8" male thread,
•easily readable LED pressure reading,
•just 10 mm installation width
•switching point and hysteresis adjustable with a potentiometer
•connection via flange or M 5 female thread or R 1/8" male thread,
•easily readable LED pressure reading,
•just 10 mm installation width
Documents:
More information
Electronic pressure switches - 10 mm width, up to 10 bar:
3 of 3 articles
€241.96
incl. VAT
€241.96
incl. VAT
€241.96
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
