Item group
Electronic pressure switches with LED display, up to 400 bar (will be discontinued)
Materials:
Housing: 1.4305, connection: 1.4404, seal: FKM
Temperature range:
-20 to +80 °C
Protection class:
IP 65
Power supply:
24 V DC, 100 mA
Electrical connection:

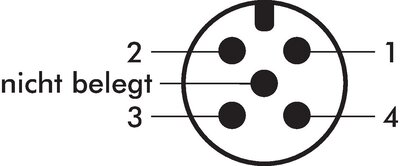

M 12 plug (A-coded, 5-pole)
Control output (PNP):
24 V DC, max. 300 mA, short-circuit protected
Contact function:
NC or NO contact, programmable
Switch point setting:
Programmable, LED switching status indicator
Hysteresis:
Programmable
Accuracy:
0.5 % from end value (EV)*
Display:
3 digit LED display, character height 7 mm
Optional:
NPT thread -NPT
*1% of span for measurement range <= 1,6 bar, **5m cable, 4-wire with coupling, M12 x 1, ***with centring pin for profiled seal
Documents:
More information
Filter items
Electronic pressure switches with LED display, up to 400 bar (will be discontinued):
1 of 1 articles
€491.08
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
