Item group

Explosion-protected pressure switch - ATEX, up to 400 bar

Name: ATEX pressure switch 0,3 to 1,5 bar (Changeover contact), G 1/4" (AG)
Brand: Landefeld
SKU: DRSW 1,5 X
Price: 271.5 EUR
Availability: InStock

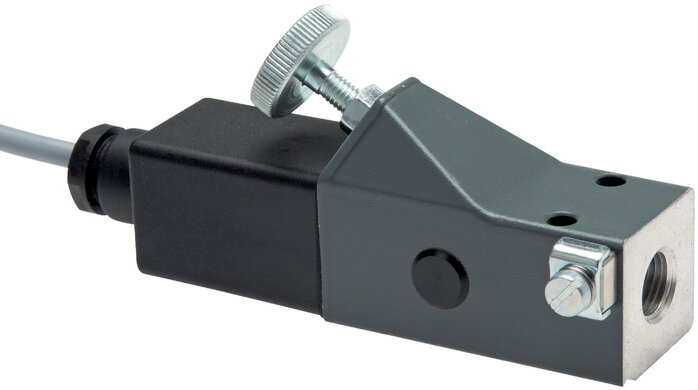

Exemplary representation: Explosion-protected pressure switches, Atex, type DRSW ... X

YouTube videos:

Pressure switches: Function and setting explained in video

Materials:

Type DRSW: Body: Steel, galvanized, anodized aluminium, type DRS: Body: Aluminium, Membrane*: NBR

Temperature range:

-20 to +80 °C

Switch-back difference (hysteresis)

Type DRSW: 10 - 20 % of the value that has been set, Type DRS: 10 - 30 % of the value that has been set

Protection class:

IP 65

Electrical connection:

2 MTR cable (3-core)

Switch type:

Changer

*type DRSW 150 X, DRS 100 X and DRS 400 X: controller using pistons

Documents:

More information

Explosion-protected pressure switch - ATEX, up to 400 bar:

9 of 9 articles

DRSW 1,5 X

ATEX pressure switch 0,3 to 1,5 bar (Changeover contact), G 1/4" (AG)

€271.50 incl. VAT

Quantity

pcs

Immediately available

ATEX	Setting range [bar]	Thread	Safe at overpressure up to [bar]
Ex II 3D IP 65 T90°C (Dust)	0,3 - 1,5	G 1/4" (male thread)	300

DRSW 10 X

ATEX pressure switch 1 to 10 bar (Changeover contact), G 1/4" (AG)

€271.50 incl. VAT

Quantity

pcs

Immediately available

ATEX	Setting range [bar]	Thread	Safe at overpressure up to [bar]
Ex II 3D IP 65 T90°C (Dust)	1 - 10	G 1/4" (male thread)	300

DRSW 20 X

ATEX pressure switch 10 to 20 bar (Changeover contact), G 1/4" (AG)

€271.50 incl. VAT

Quantity

pcs

Immediately available

ATEX	Setting range [bar]	Thread	Safe at overpressure up to [bar]
Ex II 3D IP 65 T90°C (Dust)	10 - 20	G 1/4" (male thread)	300

DRSW 50 X

ATEX pressure switch 20 to 50 bar (Changeover contact), G 1/4" (AG)

€271.50 incl. VAT

Quantity

pcs

Immediately available

ATEX	Setting range [bar]	Thread	Safe at overpressure up to [bar]
Ex II 3D IP 65 T90°C (Dust)	20 - 50	G 1/4" (male thread)	300

DRSW 150 X

ATEX pressure switch 50 to 150 bar (Changeover contact), G 1/4" (AG)

€280.94 incl. VAT

Quantity

pcs

Immediately available

ATEX	Setting range [bar]	Thread	Safe at overpressure up to [bar]
Ex II 3D IP 65 T90°C (Dust)	50 - 150	G 1/4" (male thread)	600

DRS 6 X

ATEX pressure switch 1 to 6 bar (Changeover contact), G 1/4" (IG)

€656.32 incl. VAT

Quantity

pcs

Immediately available

ATEX	Setting range [bar]	Thread	Safe at overpressure up to [bar]
0102 Ex II 2G EEx d II C T6 / T5 (gases & vapours)	1 - 6	G 1/4" (female thread)	200

DRS 50 X

ATEX pressure switch 5 to 50 bar (Changeover contact), G 1/4" (IG)

€656.32 incl. VAT

Quantity

pcs

Immediately available

ATEX	Setting range [bar]	Thread	Safe at overpressure up to [bar]
0102 Ex II 2G EEx d II C T6 / T5 (gases & vapours)	5 - 50	G 1/4" (female thread)	200

DRS 100 X

ATEX pressure switch 20 to 100 bar (Changeover contact), G 1/4" (IG)

€709.61 incl. VAT

Quantity

pcs

Immediately available

ATEX	Setting range [bar]	Thread	Safe at overpressure up to [bar]
0102 Ex II 2G EEx d II C T6 / T5 (gases & vapours)	20 - 100	G 1/4" (female thread)	600

DRS 400 X

ATEX pressure switch 100 to 400 bar (Changeover contact), G 1/4" (IG)

€709.61 incl. VAT

Quantity

pcs

Immediately available

ATEX	Setting range [bar]	Thread	Safe at overpressure up to [bar]
0102 Ex II 2G EEx d II C T6 / T5 (gases & vapours)	100 - 400	G 1/4" (female thread)	600

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
