Item group

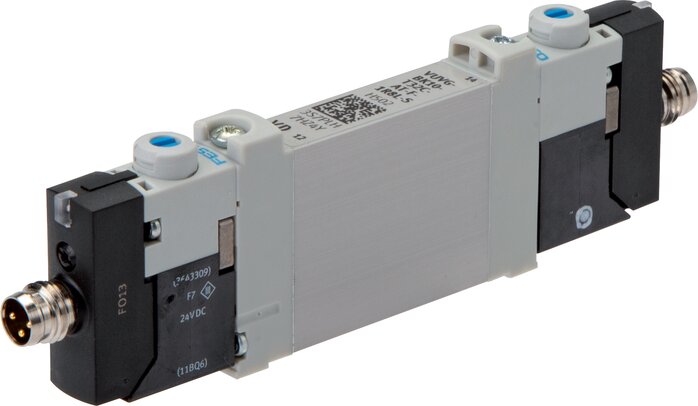

Festo connecting plate valves 10 mm, Model series VUVG BK10
YouTube videos:
Materials:
Body: Aluminium / plastic, seals: NBR
Temperature range:
-5 to +50 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
24 V DC
Voltage tolerance:
± 10 %
Power consumption:
0,7 W
Protection class:
IP 65 (with rectangular plug H: IP 40)
Switching time:
< 17 ms
Note:
Please order the connecting cable - suitable for the relevant connection - separately. The valvea are supplied including seals and screws and must be mounted on the connection plate.
*Pneumatic spring
Documents:
More information
Festo connecting plate valves 10 mm, Model series VUVG BK10:
6 of 6 articles
VUVG-BK10-T32C-F-R8
Festo-Magnetventil 8042558 VUVG-BK10-T32C-AT-F-1R8L-S
€94.97
incl. VAT
VUVG-BK10-M52-F-R8
Festo-Magnetventil 8042559 VUVG-BK10-M52-AT-F-1R8L-S
€61.69
incl. VAT
VUVG-BK10-B52-F-R8
Festo-Magnetventil 8042560 VUVG-BK10-B52-T-F-1R8L-S
€90.15
incl. VAT
VUVG-BK10-T32C-F-H
Festo-Magnetventil 8042554 VUVG-BK10-T32C-AT-F-1H2L-S
€81.68
incl. VAT
VUVG-BK10-M52-F-H
Festo-Magnetventil 8042555 VUVG-BK10-M52-AT-F-1H2L-S
€55.06
incl. VAT
VUVG-BK10-B52-F-H
Festo-Magnetventil 8042556 VUVG-BK10-B52-T-F-1H2L-S
from
€58.00
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
