Item group

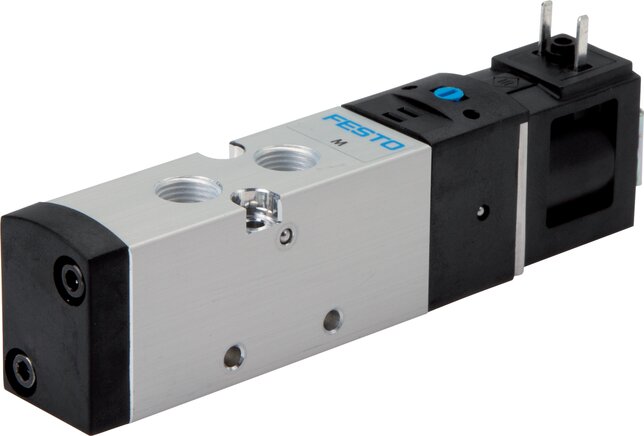

Festo solenoid valves G 1/8", Model series VUVS LK20
YouTube videos:
Materials:
Body: aluminium, seals: NBR
Temperature range:
-5 to +50 °C
Operating pressure:
1,5 to 8 bar
Media:
oiled and unoiled filtered compressed air
Control voltages:
24 V DC
Voltage tolerance:
± 10 %
Switching time:
< 22 ms
Power consumption:
2,6 W
Protection class:
IP 65 (plug size 0C)
Note:
Valve plug is not included in the scope of delivery. Please order separately!

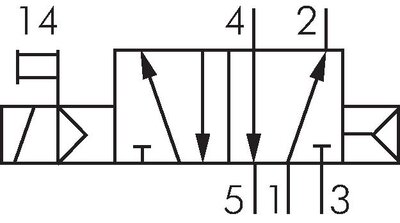

*Pneumatic spring
Documents:
More information
Festo solenoid valves G 1/8", Model series VUVS LK20:
3 of 3 articles
VUVS-LK20-M32C-18-C
Festo-Magnetventil 8043213 VUVS-LK20-M32C-AD-G18-1C1-S
€60.21
incl. VAT
VUVS-LK20-M52-18-C
Festo-Magnetventil 8043214 VUVS-LK20-M52-AD-G18-1C1-S
€67.90
incl. VAT
VUVS-LK20-B52-18-C
Festo-Magnetventil 8043215 VUVS-LK20-B52-D-G18-1C1-S
€89.19
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
