Item group

Festo solenoid valves G 3/8", Model series VUVS LK30

YouTube videos:

Materials:

Body: aluminium, seals: NBR

Temperature range:

-5 to +50 °C

Operating pressure:

1,5 to 8 bar

Media:

oiled and unoiled filtered compressed air

Control voltages:

24 V DC

Voltage tolerance:

± 10 %

Switching time:

< 21 ms

Power consumption:

3,3 W

Protection class:

IP 65 (plug size 1)

Warning:

Valve plug is not included in the scope of delivery. Please order separately!
*Pneumatic spring

Documents:

More information Less information

Filter items

Control voltage
Please select
function
Please select
Thread (2x)
Please select
Thread exhaust air
Please select
more filters
Festo solenoid valves G 3/8", Model series VUVS LK30:
3 of 3 articles
Festo-Magnetventil 8049880 VUVS-LK30-M32C-AD-G38-1B2-S(VUVS-LK30-M32C-38-B)
VUVS-LK30-M32C-38-B
Festo-Magnetventil 8049880 VUVS-LK30-M32C-AD-G38-1B2-S
€73.51 incl. VAT
Immediately available

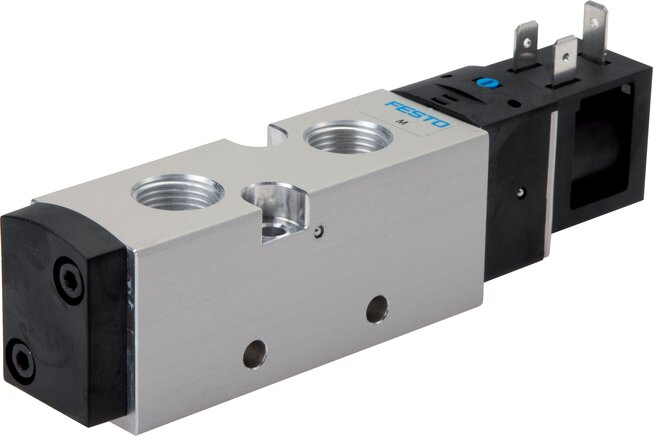

Festo-Magnetventil 8049881 VUVS-LK30-M52-AD-G38-1B2-S(VUVS-LK30-M52-38-B)
VUVS-LK30-M52-38-B
Festo-Magnetventil 8049881 VUVS-LK30-M52-AD-G38-1B2-S
€82.92 incl. VAT
Immediately available

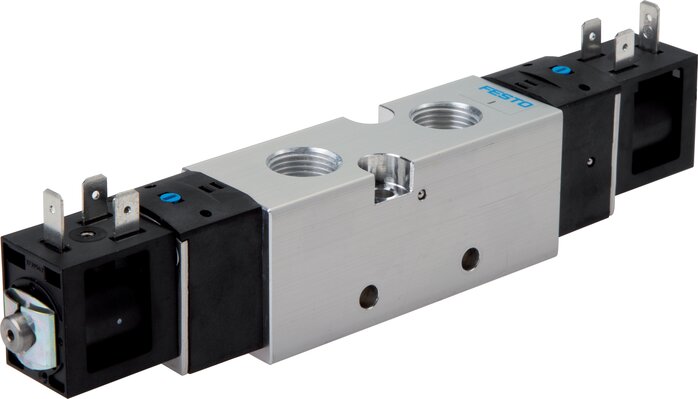

Festo-Magnetventil 8049882 VUVS-LK30-B52-D-G38-1B2-S(VUVS-LK30-B52-38-B)
VUVS-LK30-B52-38-B
Festo-Magnetventil 8049882 VUVS-LK30-B52-D-G38-1B2-S
€108.90 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
