Item group

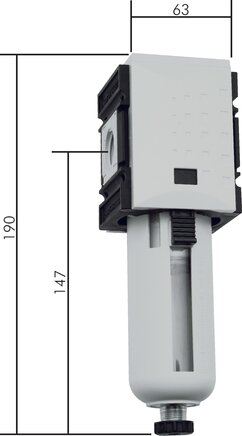

Filters - Futura model series 2, 3,500 l/min
Version:
Filtering using the centrifugal principal and sintered filter
Materials:
Body: PA 66 GF60, seals: NBR, condensate container: polycarbonate
Temperature range:
-10 to +50 °C
Input pressure:
1.5 - 16 bar (model series 0: 1.5 - 12 bar)
Condensate draining:
semi-automatic*
Pore width in the filter:
5 µm
Media:
Compressed air, neutral gases
Advantages:
•simple assembly of single components using coupling kits within a model series.
Max. condensate amount:
49 cm³
Flow:
3500 l/min
ATEX:
Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU
Optional:
Version with metal bowl and inspection tube -M, automatic discharge -AM, automatic discharge closed without pressure (0 - 16 bar) -AMNC
*As soon as the input pressure falls below the minimum input pressure, the drain valve opens automatically. The semi-automatic drain valve can be prevented from opening by screwing the drain screw tight.
Documents:
More information
Filter items
Filters - Futura model series 2, 3,500 l/min:
10 of 10 articles
€74.22
incl. VAT
€74.22
incl. VAT
€114.30
incl. VAT
€114.30
incl. VAT
€133.51
incl. VAT
€133.51
incl. VAT
€155.81
incl. VAT
€155.81
incl. VAT
F 382 F M AM
FUTURA filter, G 3/8", Metal bowl with sighting tube
€177.08
incl. VAT
Not in stock
€177.08
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
