Item group

Filters - Futura model series 4, 8000 l/min

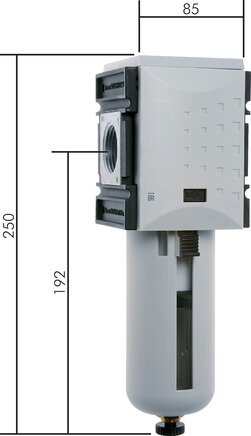

Exemplary representation: Filter - Futura-Baureihe 4 Schematic symbol: Filter

Version:

Filtering using the centrifugal principal and sintered filter

Materials:

Body: PA 66 GF60, seals: NBR, condensate container: polycarbonate

Temperature range:

-10°C to +50°C

Input pressure:

1.5 - 16 bar (model series 0: 1.5 - 12 bar)

Condensate draining:

semi-automatic*

Pore width in the filter:

5 µm

Media:

Compressed air, neutral gases

Advantages:

•simple assembly of single components using coupling kits within a model series.

Max. condensate amount:

87 cm³

Flow:

8000 l/min

ATEX:

Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU

Optional:

Version with metal bowl and inspection tube -M, automatic discharge -AM, automatic discharge closed without pressure (0 - 16 bar) -AMNC
*As soon as the input pressure falls below the minimum input pressure, the drain valve opens automatically. The semi-automatic drain valve can be prevented from opening by screwing the drain screw tight.

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 566) atlas9_seiten/566.pdf
    Documentation doku/futura.pdf
    Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
