Item group

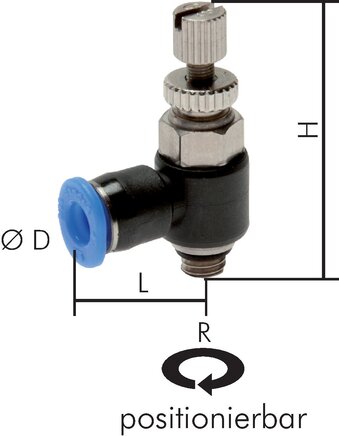

Flow control silencers, Mini

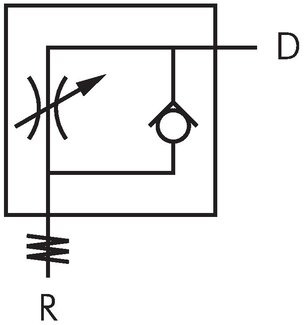

Schematic symbol: Throttle check valve (exhaust regulating) Schematic symbol: Throttle check valve (supply air regulating)

Functional principle:

One-directional flow control valves restrict the flow in one direction, while the flow in the other direction is unrestricted. Throttle valves, on the other hand, restrict the flow in both directions according to the setting of the throttle screw. Standard form are the throttle check valves "exhaust regulating". If these are screwed into a cylinder, for example, they enable smooth running without slip-stick effect. Throttle check valves are used in the special form "supply air regulating" for cylinders with a small volume (small diameter/small stroke).


Compressed air, neutral gases


Body: nickel-plated brass / PBT, seal: NBR, holding claw: stainless steel, cartridge: nickel-plated ZnDC, sleeve: PBT (only silicone-free seals and lubricants are used during assembly)

Temperature range:

0°C to +60°C

Operating pressure:

-0,95 to 10 bar


•extremely compact design,
•can be easily adjusted without tools

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 58) atlas9_seiten/58.pdf
    Documentation: Decision-making tool for the selection of IQS push in fittings and the matching hoses doku/entscheidungshilfen_steckanschluesse.pdf
    Regulate travel speed on pneumatic cylinder
