Item group

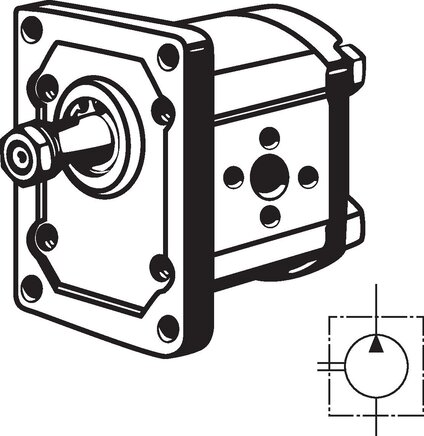

Gear pumps, clockwise direction of rotation with Plessey flange, Size 2
Materials:
Body: Aluminium, mounting flange: Aluminium or steel, seals: NBR
Temperature range:
-15 to +60 °C (medium: -15 to +80 °C)
Media:
Hydraulic oils on the basis of mineral oil
Operating range:
Industrial hydraulics and mobile hydraulics
Mounting:

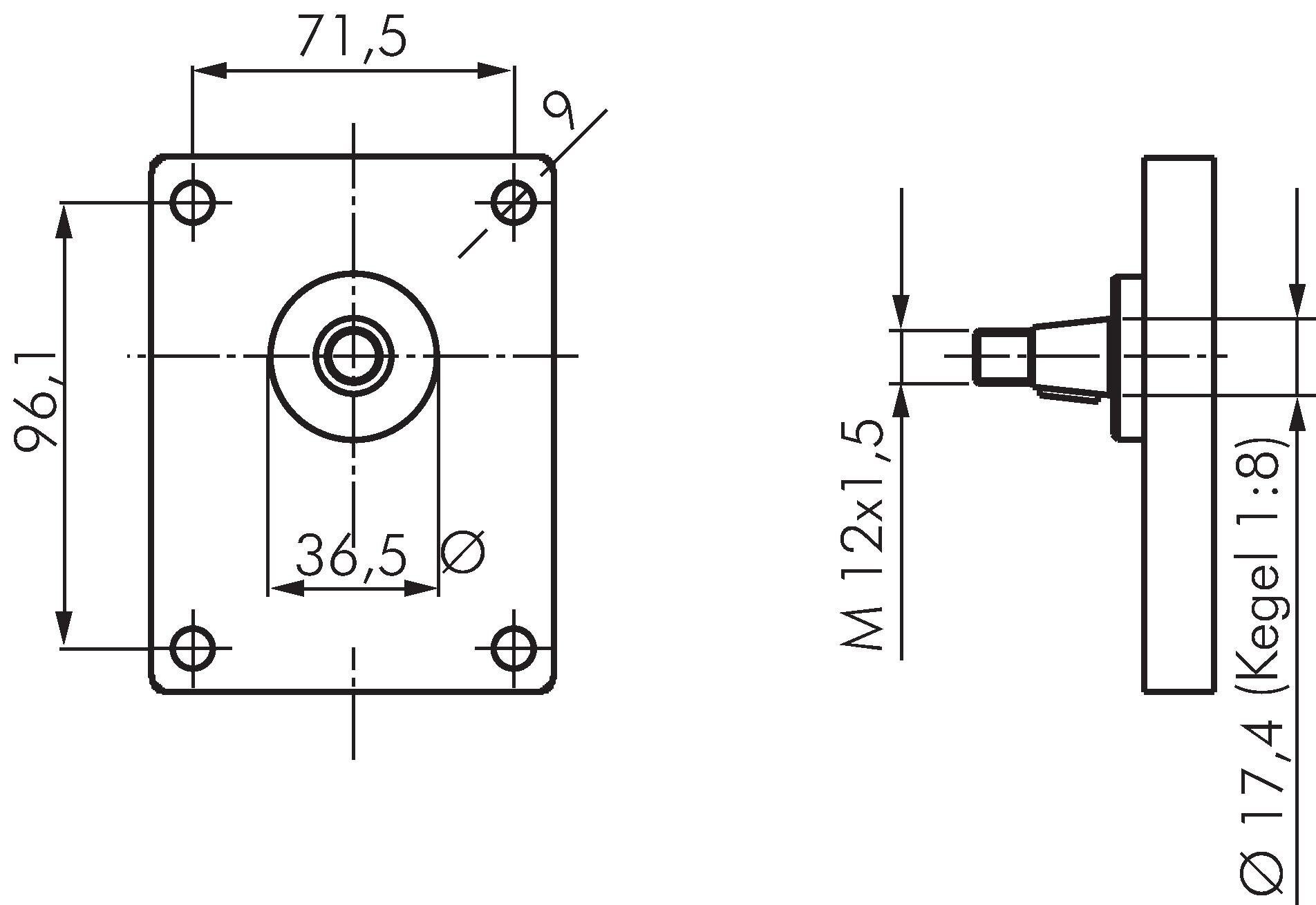

4-hole flange (71.5 x 96.1) - European standard flange (Plessey flange), size 2
Centering diameter:
36,5
Drive shaft:
Taper 1:8, M 12x1.5 (Ø 17.4 measured at the shaft outlet)
Pressure connection:
Pump flange LK 30 (bolt circle 30, 4x M 6 FT)
Bohrungsanordnung Pumpenflansche:
italienisch
Note:
We recommend using 3-hole pump flange screw connections for the suction and pressure connections.
*reference value for the assembly design is calculated with 95% volumetric efficiency
Documents:
More information
Filter items
Gear pumps, clockwise direction of rotation with Plessey flange, Size 2:
8 of 8 articles
€740.66
incl. VAT
€776.72
incl. VAT
Not in stock
€812.78
incl. VAT
€845.11
incl. VAT
€879.31
incl. VAT
€915.35
incl. VAT
€959.03
incl. VAT
€1,035.00
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
