Item group

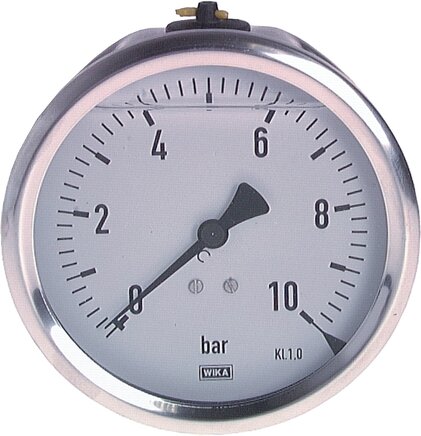

Glycerine pressure gauge horizontal Ø 100 mm nickel chromium steel / brass, Class 1,0
Exemplary representation DNV-GL certification

Materials:

Housing: 1.4301, Measuring system: Cu-alloy (1.4404 for pressures >= 100 bar), connection: Brass, window: polycarbonate

Connection thread:

G 1/2" *, rear side eccentric

Class:

1,0

Temperature range:

-20°C to +60°C

Protection class:

IP 65

Note:

WIKA Type 213.53

Optional:

ISO calibration certificate (factory calibration certificate) acc. to DIN EN ISO 17025, VDI and data sheet DAkkS-DKD-MB-3 with 5 measurement points
*with centring pin for profiled seal

{{ $t('shop.all.dokumente') }}:

    • Catalogue page Atlas 9 (Page 661) atlas9_seiten/661.pdf
    Documentation doku/ms.pdf
    Documentation: Tips for selecting the right pressure gauges doku/tippszurauswahldesrichtigenmanometers.pdf
    How does a pressure gauge function?
    Pressure gauges and their correct installation
{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ filter.Eigenschaft.EigenschaftName }}
{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
Glycerine pressure gauge horizontal Ø 100 mm nickel chromium steel / brass, Class 1,0:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
MW -1100 GLY CR
glycerine pressure gauge horizontal (CrNi/Ms), 100 mm, -1 to 0 bar
171,44€ incl. VAT
MW -106100 GLY CR
glycerine pressure gauge horizontal (CrNi/Ms), 100 mm, -1 to 0,6 bar
171,44€ incl. VAT
MW -11,5100 GLY CR
glycerine pressure gauge horizontal (CrNi/Ms), 100 mm, -1 to 1,5 bar
171,44€ incl. VAT
MW -13100 GLY CR
glycerine pressure gauge horizontal (CrNi/Ms), 100 mm, -1 to 3 bar
171,44€ incl. VAT
MW -15100 GLY CR
glycerine pressure gauge horizontal (CrNi/Ms), 100 mm, -1 to 5 bar
171,44€ incl. VAT
MW -19100 GLY CR
glycerine pressure gauge horizontal (CrNi/Ms), 100 mm, -1 to 9 bar
171,44€ incl. VAT
MW -115100 GLY CR
glycerine pressure gauge horizontal (CrNi/Ms), 100 mm, -1 to 15 bar
171,44€ incl. VAT
MW 06100 GLY CR
glycerine pressure gauge horizontal (CrNi/Ms), 100 mm, 0 - 0,6 bar
171,44€ incl. VAT
MW 1100 GLY CR
glycerine pressure gauge horizontal (CrNi/Ms), 100 mm, 0 - 1 bar
171,44€ incl. VAT
MW 1,6100 GLY CR
glycerine pressure gauge horizontal (CrNi/Ms), 100 mm, 0 - 1,6 bar
171,44€ incl. VAT
MW 2,5100 GLY CR
glycerine pressure gauge horizontal (CrNi/Ms), 100 mm, 0 - 2,5 bar
171,44€ incl. VAT
MW 4100 GLY CR
glycerine pressure gauge horizontal (CrNi/Ms), 100 mm, 0 - 4 bar
171,44€ incl. VAT
MW 6100 GLY CR
glycerine pressure gauge horizontal (CrNi/Ms), 100 mm, 0 - 6 bar
171,44€ incl. VAT
MW 10100 GLY CR
glycerine pressure gauge horizontal (CrNi/Ms), 100 mm, 0 - 10 bar
171,44€ incl. VAT
MW 16100 GLY CR
glycerine pressure gauge horizontal (CrNi/Ms), 100 mm, 0 - 16 bar
171,44€ incl. VAT
MW 25100 GLY CR
glycerine pressure gauge horizontal (CrNi/Ms), 100 mm, 0 - 25 bar
171,44€ incl. VAT
MW 40100 GLY CR
glycerine pressure gauge horizontal (CrNi/Ms), 100 mm, 0 - 40 bar
171,44€ incl. VAT
MW 60100 GLY CR
glycerine pressure gauge horizontal (CrNi/Ms), 100 mm, 0 - 60 bar
201,01€ incl. VAT
MW 100100 GLY CR
glycerine pressure gauge horizontal (CrNi/Ms), 100 mm, 0 - 100 bar
201,01€ incl. VAT
MW 160100 GLY CR
glycerine pressure gauge horizontal (CrNi/Ms), 100 mm, 0 - 160 bar
201,01€ incl. VAT
