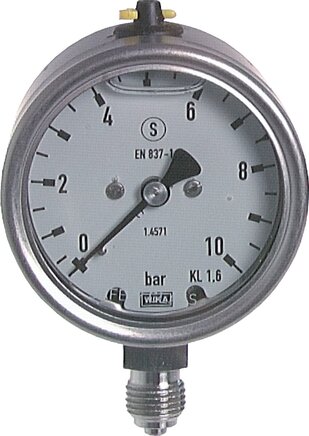

Glycerine safety pressure gauges vertical Ø 63 mm, stainless steel, Class 1,6
{{ bild.Beschreibung }}
{{ bildGross.Beschreibung }}
{{ bildGross.Beschreibung }}
{{ bildGross.Beschreibung }}
Suitable:
Pressure gauge for extra safety in line with S 3 EN 837-1 (DIN 16006) with blow-out back and unbreakable baffle wall.
Materials:
Housing: 1.4301, measuring system and connector: 1.4404, window: Laminated safety glass
Connection thread:
G 1/4" *
Class:
1,6
Temperature range:
Ambience: -20°C to +60°C, measured material: -20°C to +100°C
Protection class:
IP 65
Note:
WIKA Type 233.30
Optional:
ISO calibration certificate (factory calibration certificate) acc. to DIN EN ISO 17025, VDI and data sheet DAkkS-DKD-MB-3 with 5 measurement points
*with centring pin for profiled seal
{{ $t('shop.all.dokumente') }}:
Catalogue page Atlas 9 (Page 652) atlas9_seiten/652.pdf
Documentation doku/msses.pdf
Documentation: Tips for selecting the right pressure gauges doku/tippszurauswahldesrichtigenmanometers.pdf
