Item group

High-pressure compressed microfilters - Standard-HP, PN 60

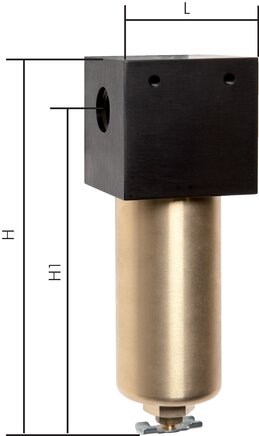

Exemplary representation Schematic symbol

Application:

Microfilters are used where high requirements are required for the purity of the compressed air requirements. Finest particle (> 0,01 µm) and oil mist is separated here. We recommend the upstream connection of a prefilter to increase the service life.

Dust removal:

> 0.01 µm (99.999 %), residual oil content: 0.01 mg/m³ (Class1 in accordance with DIN ISO 8573-1)

Materials:

Housing: Aluminium, container: Brass, filter element: Borosilicate microfibre fleece

Temperature range:

0°C to +90°C

Input pressure:

0 - 60 bar

Condensate draining:

Manually

Media:

Compressed air, neutral gases
*measured at P1 = 6 bar and 0.2 bar pressure drop

{{ $t('shop.all.dokumente') }}:

    • Catalogue page Atlas 9 (Page 615) atlas9_seiten/615.pdf
    Documentation: Decision aid for selection of air units doku/entscheidungshilfe_wartungsgeraete.pdf
    Declaration of Conformity konf_erkl/konformitaetserklaerung_df2260_2360_3460_3560_dxf_2260_2360_3460_3560_de_en_la.pdf
    Compressed air qualities and purity classes and how they can be achieved.
{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ filter.Eigenschaft.EigenschaftName }}
{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
High-pressure compressed microfilters - Standard-HP, PN 60:
{{ $t('shop.all.artikelgruppe_n_von_m_artikeln', { anzahlArtikelAngezeigt: anzahlArtikelAngezeigt, anzahlArtikelGesamt: anzahlArtikelGesamt} ) }}
DFX 2260
High-pressure microfilter (sub-microfilter) G 3/8"
313,83€ incl. VAT
DFX 2360
High-pressure microfilter (sub-microfilter) G 1/2"
312,24€ incl. VAT
DFX 3460
High-pressure microfilter (sub-microfilter) G 3/4"
394,83€ incl. VAT
DFX 3560
High-pressure microfilter (sub-microfilter) G 1"
391,07€ incl. VAT
FILTER 2060-X
Replacement filter 0,01 µm
127,51€ incl. VAT
FILTER 3060-X
Replacement filter 0,01 µm
132,85€ incl. VAT
BW 2040
Mounting brackets
14,95€ incl. VAT
BW 3040 F
Mounting brackets
12,32€ incl. VAT
