Item group

Horizontal bimetallic thermometer without thermowell - industrial version, class 1,0

Name: Bimetallic thermometer, horiz-ontal D63/-30 to +50°C/63mm of WIKA (WEEE DE92770372)
Brand: WIKA (WEEE DE92770372)
SKU: TW 356363
Price: 86.79 EUR
Availability: InStock

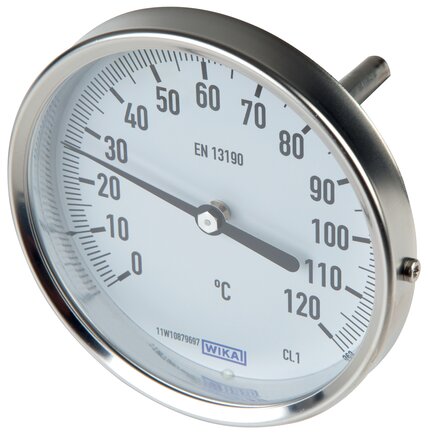

Exemplary representation: Bimetal thermometer horizontal without protection - industrial version

Application:

Industrial manometer for use in mechanical engineering, tank construction, pipeline construction and heating technology. Also suitable for aggressive materials to be measured.

Materials:

Housing: 1.4301, stem: 1.4571, window: instrument plate glass

Display correction:

Adjustable indicator

Protection class:

IP 43

Protective tube connection:

G 1/2" (thermowell model B)

Dip shaft Ø:

8 mm

Class:

Temperature range:

Environment: -20 to +60 °C

Operating pressure at the stem:

max. 25 bar

Note:

WIKA Type A52

Documents:

Catalogue page Atlas 9 (Page 691b) (PDF)

More information

Horizontal bimetallic thermometer without thermowell - industrial version, class 1,0:

20 of 176 articles

TW 356363

Bimetallic thermometer, horiz-ontal D63/-30 to +50°C/63mm

€86.79 incl. VAT

Quantity

pcs

Immediately available

Diameter [mm]	Display range [°C]	Stem length L [mm]	Scale division [K]
63	-30 to +50	63	1

TW 3563100

Bimetallic thermometer, horiz-ontal D63/-30 to +50°C/100mm

€86.79 incl. VAT

Quantity

pcs

Immediately available

Diameter [mm]	Display range [°C]	Stem length L [mm]	Scale division [K]
63	-30 to +50	100	1

TW 3563160

Bimetallic thermometer, horiz-ontal D63/-30 to +50°C/160mm

€92.63 incl. VAT

Quantity

pcs

Immediately available

Diameter [mm]	Display range [°C]	Stem length L [mm]	Scale division [K]
63	-30 to +50	160	1

TW 3563200

Bimetallic thermometer, horiz-ontal D63/-30 to +50°C/200mm

€86.79 incl. VAT

Quantity

pcs

Immediately available

Diameter [mm]	Display range [°C]	Stem length L [mm]	Scale division [K]
63	-30 to +50	200	1

TW 606363

Bimetallic thermometer, horiz-ontal D63/0 to +60°C/63mm

€111.03 incl. VAT

Quantity

pcs

Immediately available

Diameter [mm]	Display range [°C]	Stem length L [mm]	Scale division [K]
63	0 to +60	63	1

TW 6063100

Bimetallic thermometer, horiz-ontal D63/0 to +60°C/100mm

€111.03 incl. VAT

Quantity

pcs

Immediately available

Diameter [mm]	Display range [°C]	Stem length L [mm]	Scale division [K]
63	0 to +60	100	1

TW 6063160

Bimetallic thermometer, horiz-ontal D63/0 to +60°C/160mm

€111.03 incl. VAT

Quantity

pcs

Immediately available

Diameter [mm]	Display range [°C]	Stem length L [mm]	Scale division [K]
63	0 to +60	160	1

TW 6063200

Bimetallic thermometer, horiz-ontal D63/0 to +60°C/200mm

€111.03 incl. VAT

Quantity

pcs

Immediately available

Diameter [mm]	Display range [°C]	Stem length L [mm]	Scale division [K]
63	0 to +60	200	1

TW 806363

Bimetallic thermometer, horiz-ontal D63/0 to +80°C/63mm

€113.42 incl. VAT

Quantity

pcs

Immediately available

Diameter [mm]	Display range [°C]	Stem length L [mm]	Scale division [K]
63	0 to +80	63	1

TW 8063100

Bimetallic thermometer, horiz-ontal D63/0 to +80°C/100mm

€111.03 incl. VAT

Quantity

pcs

Immediately available

Diameter [mm]	Display range [°C]	Stem length L [mm]	Scale division [K]
63	0 to +80	100	1

TW 8063160

Bimetallic thermometer, horiz-ontal D63/0 to +80°C/160mm

€111.03 incl. VAT

Quantity

pcs

Immediately available

Diameter [mm]	Display range [°C]	Stem length L [mm]	Scale division [K]
63	0 to +80	160	1

TW 8063200

Bimetallic thermometer, horiz-ontal D63/0 to +80°C/200mm

€111.03 incl. VAT

Quantity

pcs

Immediately available

Diameter [mm]	Display range [°C]	Stem length L [mm]	Scale division [K]
63	0 to +80	200	1

TW 1006363

Bimetallic thermometer, horiz-ontal D63/0 to +100°C/63mm

€111.03 incl. VAT

Quantity

pcs

Immediately available

Diameter [mm]	Display range [°C]	Stem length L [mm]	Scale division [K]
63	0 to +100	63	2

TW 10063100

Bimetallic thermometer, horiz-ontal D63/0 to +100°C/100mm

€111.03 incl. VAT

Quantity

pcs

Immediately available

Diameter [mm]	Display range [°C]	Stem length L [mm]	Scale division [K]
63	0 to +100	100	2

TW 10063160

Bimetallic thermometer, horiz-ontal D63/0 to +100°C/160mm

€111.03 incl. VAT

Quantity

pcs

Immediately available

Diameter [mm]	Display range [°C]	Stem length L [mm]	Scale division [K]
63	0 to +100	160	2

TW 10063200

Bimetallic thermometer, horiz-ontal D63/0 to +100°C/200mm

€111.03 incl. VAT

Quantity

pcs

Immediately available

Diameter [mm]	Display range [°C]	Stem length L [mm]	Scale division [K]
63	0 to +100	200	2

TW 1206363

Bimetallic thermometer, horiz-ontal D63/0 to +120°C/63mm

€111.03 incl. VAT

Quantity

pcs

Immediately available

Diameter [mm]	Display range [°C]	Stem length L [mm]	Scale division [K]
63	0 to +120	63	2

TW 12063100

Bimetallic thermometer, horiz-ontal D63/0 to +120°C/100mm

€111.03 incl. VAT

Quantity

pcs

Immediately available

Diameter [mm]	Display range [°C]	Stem length L [mm]	Scale division [K]
63	0 to +120	100	2

TW 12063160

Bimetallic thermometer, horiz-ontal D63/0 to +120°C/160mm

€111.03 incl. VAT

Quantity

pcs

Immediately available

Diameter [mm]	Display range [°C]	Stem length L [mm]	Scale division [K]
63	0 to +120	160	2

TW 12063200

Bimetallic thermometer, horiz-ontal D63/0 to +120°C/200mm

€111.03 incl. VAT

Quantity

pcs

Immediately available

Diameter [mm]	Display range [°C]	Stem length L [mm]	Scale division [K]
63	0 to +120	200	2

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
