Item group
Liquid level switches (level switches) - universal, level (1x)
Application:
for general applications in hydraulics, mechanical engineering, plant engineering and tank construction. Also well suited for fouled media, but should not be used for media with a strong flow. The easy adjustment of the switching position allows use of the switch for many different applications and reduces the costs of stock and spare parts inventory.
Materials:
Body: polyamide, switching rod: 1.4301, float valve: NBR, seal: neoprene
Temperature range:
-20 to +100 °C
Operating pressure:
max. 10 bar
Installation position:
vertical
Protection class:
IP 65
Fixing on the tank cover:

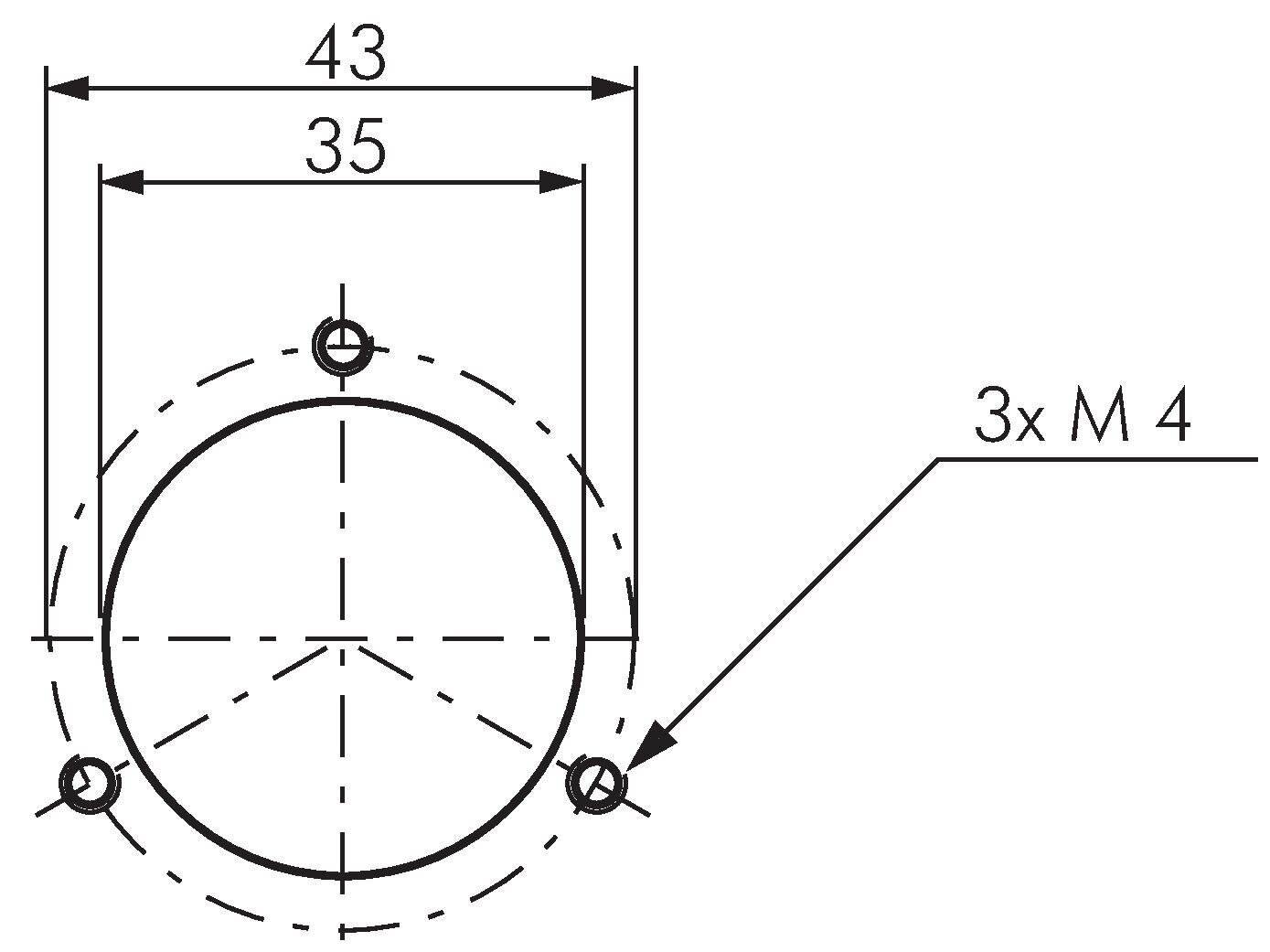

Flange (pitch circle 43, hole 35, 3x M 4)
Float dimensions:
Ø 30 x 60 mm
Electrical connection:
Right-angle connector, size 3, 4-pin (DIN 43650 / EN 175301-803 A) (Flat pin)
Switch type:
1x Changer
Switching capacity:
250 V (AC), 60 VA, max. 1 A / 250 V (DC), 60 W, max. 1 A
Media:
Water, effluent water, hydraulic oil, machine oil, cooling lubricant, diesel and other fluids
Advantages:

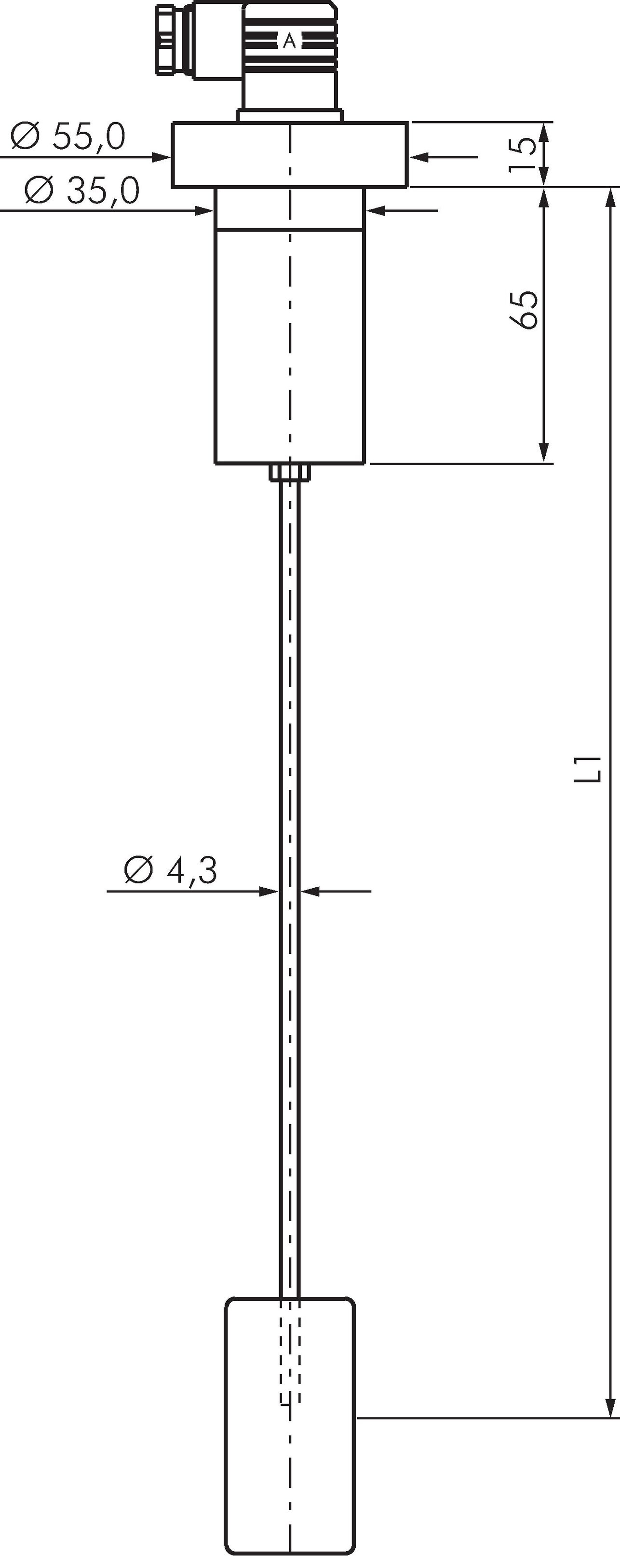

•Switching position can be defined by shortening (sawing off) the switching rod at will in the range 120 - 500 mm (pull out the float beforehand),
•also suitable for fouled media, since the switching rod is used instead of a sliding tube,
•since the float does not need a magnet, it is completely non-sensitive to iron particles in the medium (for example, cooling lubricant)
•also suitable for fouled media, since the switching rod is used instead of a sliding tube,
•since the float does not need a magnet, it is completely non-sensitive to iron particles in the medium (for example, cooling lubricant)
Documents:
More information
Liquid level switches (level switches) - universal, level (1x):
1 of 1 articles
€121.98
incl. VAT
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
