Item group

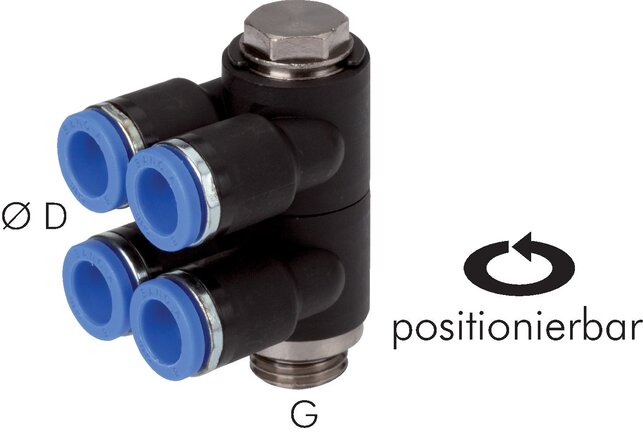

Multi-distributor (4-way), cylindrical threads, Standard

Materials:

Body: nickel-plated brass / PA 66, sleeve: PA 66 (M 3: nickel-plated steel / PA66), seal: NBR, holding claws: stainless steel, cartridge: Zinc-plated ZnDC (only silicone-free seals and lubricants are used during assembly)

Temperature range:

-20 to +80 °C

Operating pressure:

-0,95 to 20 bar

Media:

oiled and unoiled compressed air, neutral gases and water (water up to max 60° C may be used only after we have approved the performance specifications).

Advantages:

•Wide variety of products,
•extremely tight due to lip seal,
•available with conical, PTFE-coated thread or with cylindrical thread and captive O-ring

Documents:

More information Less information
Multi-distributor (4-way), cylindrical threads, Standard:
15 of 15 articles
Plug manifolds, 4-fold G 1/8"-4mm, IQS standard(IQSLV4 184 G)
IQSLV4 184 G
Plug manifolds, 4-fold G 1/8"-4mm, IQS standard
€12.70 incl. VAT
Immediately available
Plug manifolds, 4-fold G 1/8"-6mm, IQS standard(IQSLV4 186 G)
IQSLV4 186 G
Plug manifolds, 4-fold G 1/8"-6mm, IQS standard
€13.20 incl. VAT
Immediately available
Plug manifolds, 4-fold G 1/8"-8mm, IQS standard(IQSLV4 188 G)
IQSLV4 188 G
Plug manifolds, 4-fold G 1/8"-8mm, IQS standard
€15.24 incl. VAT
Immediately available
Plug manifolds, 4-fold G 1/4"-4mm, IQS standard(IQSLV4 144 G)
IQSLV4 144 G
Plug manifolds, 4-fold G 1/4"-4mm, IQS standard
€14.46 incl. VAT
Immediately available
Plug manifolds, 4-fold G 1/4"-6mm, IQS standard(IQSLV4 146 G)
IQSLV4 146 G
Plug manifolds, 4-fold G 1/4"-6mm, IQS standard
€13.54 incl. VAT
Immediately available
Plug manifolds, 4-fold G 1/4"-8mm, IQS standard(IQSLV4 148 G)
IQSLV4 148 G
Plug manifolds, 4-fold G 1/4"-8mm, IQS standard
€15.53 incl. VAT
Immediately available
Plug manifolds, 4-fold G 1/4"-10mm, IQS standard(IQSLV4 1410 G)
IQSLV4 1410 G
Plug manifolds, 4-fold G 1/4"-10mm, IQS standard
€17.06 incl. VAT
Immediately available
Plug manifolds, 4-fold G 3/8"-4mm, IQS standard(IQSLV4 384 G)
IQSLV4 384 G
Plug manifolds, 4-fold G 3/8"-4mm, IQS standard
€14.95 incl. VAT
Immediately available
Plug manifolds, 4-fold G 3/8"-6mm, IQS standard(IQSLV4 386 G)
IQSLV4 386 G
Plug manifolds, 4-fold G 3/8"-6mm, IQS standard
€15.03 incl. VAT
Immediately available
Plug manifolds, 4-fold G 3/8"-8mm, IQS standard(IQSLV4 388 G)
IQSLV4 388 G
Plug manifolds, 4-fold G 3/8"-8mm, IQS standard
€15.53 incl. VAT
Immediately available
Plug manifolds, 4-fold G 3/8"-10mm, IQS standard(IQSLV4 3810 G)
IQSLV4 3810 G
Plug manifolds, 4-fold G 3/8"-10mm, IQS standard
€17.49 incl. VAT
Immediately available
Plug manifolds, 4-fold G 3/8"-12mm, IQS standard(IQSLV4 3812 G)
IQSLV4 3812 G
Plug manifolds, 4-fold G 3/8"-12mm, IQS standard
€18.34 incl. VAT
Immediately available
Plug manifolds, 4-fold G 1/2"-8mm, IQS standard(IQSLV4 128 G)
IQSLV4 128 G
Plug manifolds, 4-fold G 1/2"-8mm, IQS standard
€18.83 incl. VAT
Immediately available
Plug manifolds, 4-fold G 1/2"-10mm, IQS standard(IQSLV4 1210 G)
IQSLV4 1210 G
Plug manifolds, 4-fold G 1/2"-10mm, IQS standard
€18.98 incl. VAT
Immediately available
Plug manifolds, 4-fold G 1/2"-12mm, IQS standard(IQSLV4 1212 G)
IQSLV4 1212 G
Plug manifolds, 4-fold G 1/2"-12mm, IQS standard
€19.47 incl. VAT
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
