Item group

Multi-purpose jet tubes with thread connector, DIN 14365

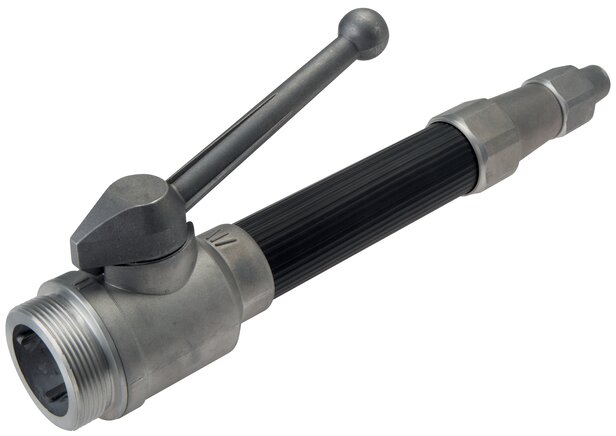

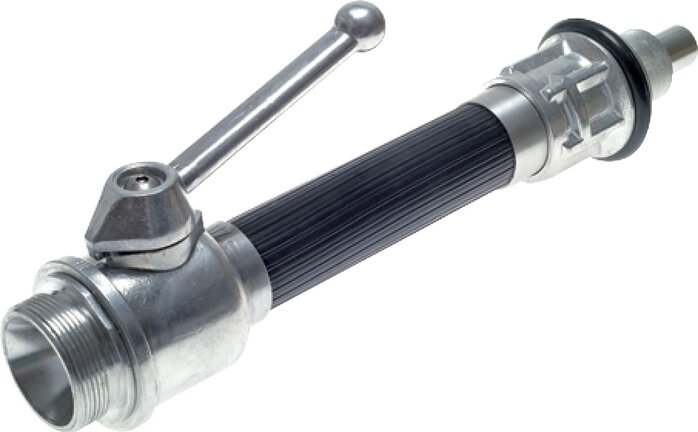

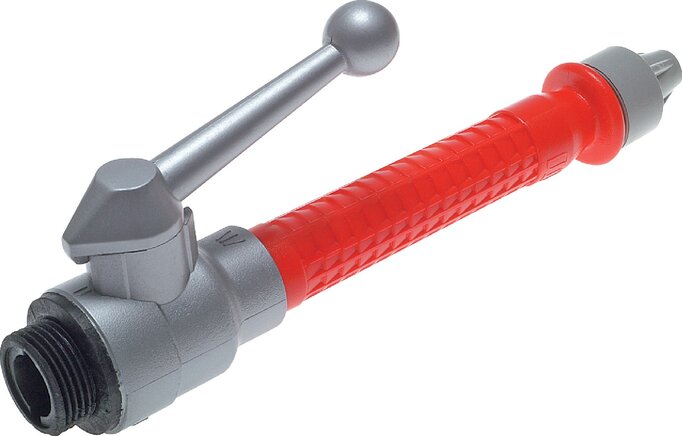

Exemplary representation: Multi-purpose jet pipe with threaded connection, plastic Exemplary representation: Multi-purpose jet pipe with threaded connection, aluminium Exemplary representation: Multi-purpose jet pipe with threaded connection, with man protection spray

Materials:

Seal: NBR (stainless steel: FKM)

Temperature range:

-40°C to max. +110°C (Stainless steel: -15°C to max. +200°C)

Operating pressure:

max. 16 bar

Operating range:

Industry, fire brigade, refinery, agriculture, construction industry, maritime, military and catastrophe protection

Dimensions for determining the size of Storz couplings DIN sizes

lug distance 31 mm = Storz size 25-D, lug distance 66 mm = Storz size 52-C, lug distance 89 mm = Storz size 75-B, lug distance 133 mm = Storz size 110-A

Advantages:

•simple assignment of hose end and connection,
•fast connection and disconnection through a 120°-rotation,
•All couplings with the same lug distance are compatible with one another. The rule that applies is: same lug distance, same nominal size,
•large range of applications through the use of application-specific hoses,
•Aluminium forged - no danger of breakage, such as exists with cast couplings of aluminium,
•Brass - body is made of DVGW/KTW-compliant alloy.

Switching sequence:

Hard jet, closed, spray stream

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 347) atlas9_seiten/347.pdf
    Storz couplings with a new system, now join even more easily!
{{ $t('shop.display.artikelgruppe.mehr_informationen') }} {{ $t('shop.display.artikelgruppe.weniger_informationen') }}

{{ $t('shop.display.artikelgruppe.filtern') }}

{{ filter.Eigenschaft.EigenschaftName }}
{{ $t('shop.display.artikelgruppe.kein_eintrag') }}
Multi-purpose jet tubes with thread connector, DIN 14365:
