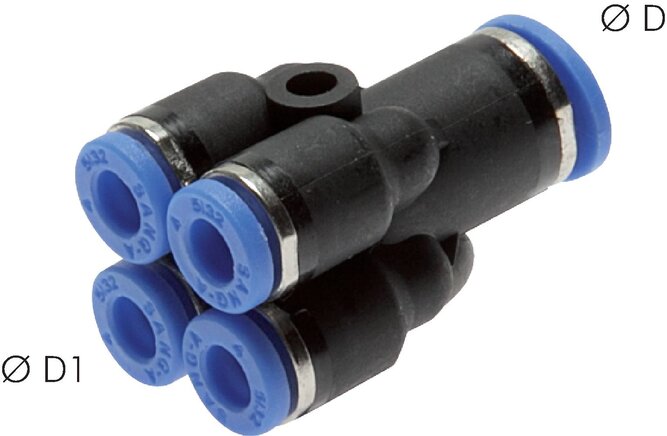

Multiple distributors with 4 outlets, standard

Description

Materials:
Body: nickel-plated brass / PA 66, sleeve: PA 66 (M 3: nickel-plated steel / PA66), seal: NBR, holding claws: stainless steel, cartridge: Zinc-plated ZnDC (only silicone-free seals and lubricants are used during assembly)

Temperature range:
-20°C bis +80°C

Operating pressure:
-0,95 bis 20 bar

Media:
oiled and unoiled compressed air, neutral gases and water (water up to max 60° C may be used only after we have approved the performance specifications).

Advantages:
•Wide variety of products, •extremely tight due to lip seal, •available with conical, PTFE-coated thread or with cylindrical thread and captive O-ring

Find the right item

D [mm]
D1 [mm]

Multiple distributors with 4 outlets, standard: 2 of 2 items

Immediately available

4,85 €

Immediately available

6,73 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
