Multipole valve terminals G 1/8" (incl. valves), S1R series

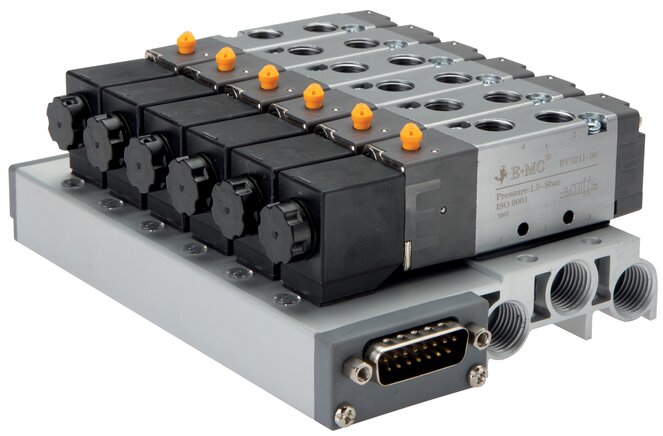

Exemplary representation Multipole

Materials:

Body and slider: aluminium, seals: NBR, pilot: polyamide

Temperature range:

-5°C to +60°C

Operating pressure:

1,5 - 8 bar

Media:

oiled and unoiled filtered compressed air

Switching time:

<50 ms, max. 5 switching cycles/sec.

Control voltage:

24 V=

Voltage tolerance:

± 10 %

Protection class:

IP 40

Service life:

min. 40 million switching cycles

Version:

with LED and protection circuit

Note:

The valve places are counted from the multi-pin connection onwards in ascending order. The PIN for activating a valve place corresponds to the number of the valve place.

Advantages:

•Particularly cost-efficient,
•Compact build,
•DIN rail mounting or mounting with screws possible. An adapter for DIN rail mounting is enclosed,
•LED switching status display and protective circuit,
•Valves can be easily replaced with other RV valves

Flow per valve station:

500 l/min

Power consumption:

2.8 W / station

{{ $t('shop.all.dokumente') }}:

  • Catalogue page Atlas 9 (Page 772) atlas9_seiten/772.pdf
