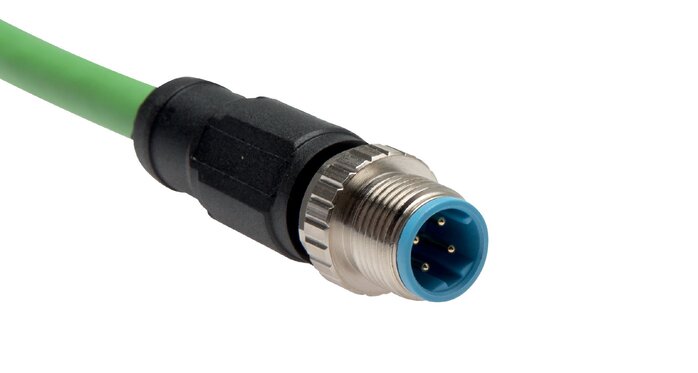

Exemplary representation: CAT.5 network cable, cable end 1: M 12 plug (straight)
Description:
Pre-assembled, shielded network cable with M 12 plug (M 12x1 male thread to DIN EN 61076-2-101, D-coded, 4-pin) on one end and 4-pin M 12 plug (M 12x1 male thread to DIN EN 61076-2-101, D-coded) or RJ45 plug (IEC 60603-7-3) on the other end for use in Ethernet industrial networks.
Temperature range:
-45 to +80 °C
Voltage:
max. 30 V DC
Protection class:
IP 67
Cable:
shielded network cable CAT.5 (only for static applications)
Suitable:
These cables are preferred for use as signal cables in field bus systems such as PROFINET or EtherCAT.

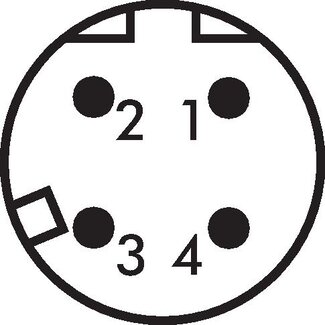

M12 connector, D-coded (DIN EN 61076-2-101) (plug)
RJ45 plug (IEC 60603-7-3) (plug)
10
Immediately available
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
