One-way control valves & choke valves made of stainless steel, Eco-Line

Description

Materials:
Body and adjustment needle: 1.4404,Seals: FKM

Temperature range:
0°C bis +150°C

Operating pressure:
0 bis 10 bar

Media:
filtered and oiled compressed air

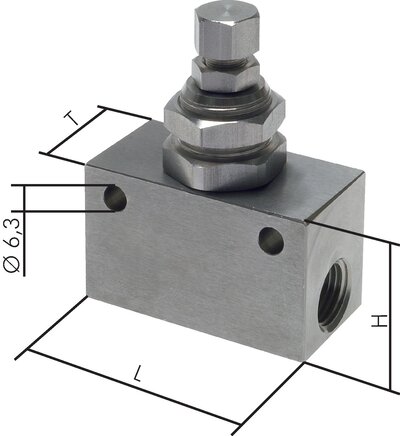

Find the right item

function
Thread
Thread for panel mounting
L [mm]
H [mm]
T [mm]
flow [l/min]

One-way control valves & choke valves made of stainless steel, Eco-Line: 4 of 4 items

one-way flow control, G 1/8",Stainless steel (Eco)
  • function

    one-way flow control

  • Thread

    G 1/8"

  • Thread for panel mounting

    M 12 x 0.75

  • L [mm]

    34

  • H [mm]

    20

  • T [mm]

    15

Immediately available

94,63 €

one-way flow control, G 1/4",Stainless steel (Eco)
  • function

    one-way flow control

  • Thread

    G 1/4"

  • Thread for panel mounting

    M 18 x 1

  • L [mm]

    50

  • H [mm]

    30

  • T [mm]

    25

Immediately available

105,09 €

choke valve, G 1/8",Stainless steel (Eco)
  • function

    choke valve

  • Thread

    G 1/8"

  • Thread for panel mounting

    M 12 x 0.75

  • L [mm]

    34

  • H [mm]

    20

  • T [mm]

    15

Immediately available

94,63 €

choke valve, G 1/4",Stainless steel (Eco)
  • function

    choke valve

  • Thread

    G 1/4"

  • Thread for panel mounting

    M 18 x 1

  • L [mm]

    50

  • H [mm]

    30

  • T [mm]

    25

Immediately available

105,09 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
