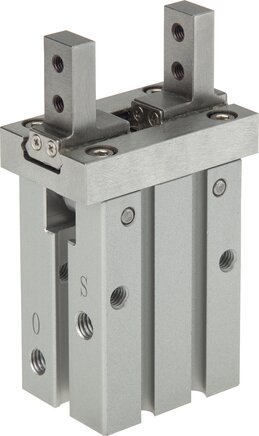

Parallel gripper with ball guide, SHZ

Description

Materials:
Body: Aluminium anodised / galvanised steel / stainless steel, pistons: Aluminium / stainless steel with magnet insertion, gripper fingers and ball guide: Hardened stainless steel, seals: NBR / PUR

Temperature range:
-10°C bis +60°C

Operating pressure:
1.5 - 7 bar (single action: 3 - 7 bar)

Maximum working frequency:
180 cycles / minute

Version:
With Magnetic piston

Cylinder switch type:
F or D (cylinder switch type D not for Ø 10)

Advantages:
•ideal for Pick and Place applications, •high repeatability (± 0.01 mm), •guidance through stable ball guide, •precise reinstallation due to front centring bore and tolerance bore, •many mounting variants possible, •main mounting dimensions identical to SMC series MHZ2

*each gripper finger at 5 bar, in the centre stroke, at a lever arm of 20 mm

Find the right item

Version
Piston Ø [mm]
Eff. holding force* grips outside [N]
Eff. holding force* grips inside [N]
A [mm]
B [mm]
C [mm]
D [mm]
E [mm]
F [mm]
G (+0 / -0.05) [mm]
H [mm]
I [mm]
J [mm]
K [mm]
L [mm]
M (+0.05 / -0) [mm]
O [mm]
P [mm]
Q [mm]
K1 [mm]
K2 [mm]
K3 (+0.05 / -0) [mm]
R [mm]
S [mm]
U
V (+0 / -0.05) [mm]
W [mm]
X [mm]
Y
Y1 [mm]
Y2 [mm]
Y3 [mm]
Y4 [mm]
Z
OP (+2 / -0) [mm]
CL (+0 / -0,7) [mm]

Parallel gripper with ball guide, SHZ: 12 of 12 items

Parallel gripper, pistons 10mm, double acting
  • Version

    double acting

  • Piston Ø [mm]

    10

  • Eff. holding force* grips outside [N]

    11

  • Eff. holding force* grips inside [N]

    17

  • Repair sets

    SHZ 10 REP

  • A [mm]

    23,0

Immediately available
Inventory check:

Please wait, check is in process...

250,00 €

Parallel gripper, pistons 16mm, double acting
  • Version

    double acting

  • Piston Ø [mm]

    16

  • Eff. holding force* grips outside [N]

    34

  • Eff. holding force* grips inside [N]

    45

  • Repair sets

    SHZ 16 REP

  • A [mm]

    30,6

Immediately available
Inventory check:

Please wait, check is in process...

261,55 €

Parallel gripper, pistons 20mm, double acting
  • Version

    double acting

  • Piston Ø [mm]

    20

  • Eff. holding force* grips outside [N]

    42

  • Eff. holding force* grips inside [N]

    66

  • Repair sets

    SHZ 20 REP

  • A [mm]

    42,0

Immediately available
Inventory check:

Please wait, check is in process...

288,45 €

Parallel gripper, pistons 25mm, double acting
  • Version

    double acting

  • Piston Ø [mm]

    25

  • Eff. holding force* grips outside [N]

    65

  • Eff. holding force* grips inside [N]

    104

  • Repair sets

    SHZ 25 REP

  • A [mm]

    52,0

Immediately available
Inventory check:

Please wait, check is in process...

346,15 €

Parallel gripper, pistons 10mm, single acting - opened unpressurised (grips outside)
  • Piston Ø [mm]

    10

  • Eff. holding force* grips outside [N]

    7

  • Repair sets

    SHZ 10 REP

  • A [mm]

    23,0

  • B [mm]

    37,6

  • C [mm]

    6,0

  • Version

    single acting - opened unpressurised (grips outside)

Immediately available
Inventory check:

Please wait, check is in process...

265,40 €

Parallel gripper, pistons 16mm, single acting - opened unpressurised (grips outside)
  • Piston Ø [mm]

    16

  • Eff. holding force* grips outside [N]

    27

  • Repair sets

    SHZ 16 REP

  • A [mm]

    30,6

  • B [mm]

    42,5

  • C [mm]

    7,5

  • Version

    single acting - opened unpressurised (grips outside)

Not in stock
Inventory check:

Please wait, check is in process...

280,80 €

Parallel gripper, pistons 20mm, single acting - opened unpressurised (grips outside)
  • Piston Ø [mm]

    20

  • Eff. holding force* grips outside [N]

    35

  • Repair sets

    SHZ 20 REP

  • A [mm]

    42,0

  • B [mm]

    52,8

  • C [mm]

    9,5

  • Version

    single acting - opened unpressurised (grips outside)

Immediately available
Inventory check:

Please wait, check is in process...

307,70 €

Parallel gripper, pistons 25mm, single acting - opened unpressurised (grips outside)
  • Piston Ø [mm]

    25

  • Eff. holding force* grips outside [N]

    55

  • Repair sets

    SHZ 25 REP

  • A [mm]

    52,0

  • B [mm]

    63,6

  • C [mm]

    11,0

  • Version

    single acting - opened unpressurised (grips outside)

Immediately available
Inventory check:

Please wait, check is in process...

369,25 €

Parallel gripper, pistons 10mm, single acting - closed when not pressurised (internal grab)
  • Piston Ø [mm]

    10

  • Eff. holding force* grips inside [N]

    13

  • Repair sets

    SHZ 10 REP

  • A [mm]

    23,0

  • B [mm]

    37,6

  • C [mm]

    6,0

  • Version

    single acting - closed when not pressurised (internal grab)

Immediately available
Inventory check:

Please wait, check is in process...

265,40 €

Parallel gripper, pistons 16mm, single acting - closed when not pressurised (internal grab)
  • Piston Ø [mm]

    16

  • Eff. holding force* grips inside [N]

    38

  • Repair sets

    SHZ 16 REP

  • A [mm]

    30,6

  • B [mm]

    42,5

  • C [mm]

    7,5

  • Version

    single acting - closed when not pressurised (internal grab)

Immediately available
Inventory check:

Please wait, check is in process...

280,80 €

Parallel gripper, pistons 20mm, single acting - closed when not pressurised (internal grab)
  • Piston Ø [mm]

    20

  • Eff. holding force* grips inside [N]

    59

  • Repair sets

    SHZ 20 REP

  • A [mm]

    42,0

  • B [mm]

    52,8

  • C [mm]

    9,5

  • Version

    single acting - closed when not pressurised (internal grab)

Immediately available
Inventory check:

Please wait, check is in process...

307,70 €

Parallel gripper, pistons 25mm, single acting - closed when not pressurised (internal grab)
  • Piston Ø [mm]

    25

  • Eff. holding force* grips inside [N]

    87

  • Repair sets

    SHZ 25 REP

  • A [mm]

    52,0

  • B [mm]

    63,6

  • C [mm]

    11,0

  • Version

    single acting - closed when not pressurised (internal grab)

Immediately available
Inventory check:

Please wait, check is in process...

369,25 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
