Polyurethane coil tubs (stream line) with coupling NW 7,2 / NW 10

Documents

Description

Properties:
Polyurethane coil tubes have high wear, pressure and abrasion resistance. The prevent scratching of painted surfaces (bodywork construction), have a lasting return force and at the same time have very good buckling resistance and elasticity. Extremely high quality version.

Material:
Polyester polyurethane

Temperature range:
-20°C bis +60°C

Operating pressure:
10 bar

Advantages:
•Can be used immediately at the work place with the steel coupling socket and coupling plug, •very high-quality CEJN safety coupling, •Steel plug, well-suited for applications with high mechanical wear

no picture

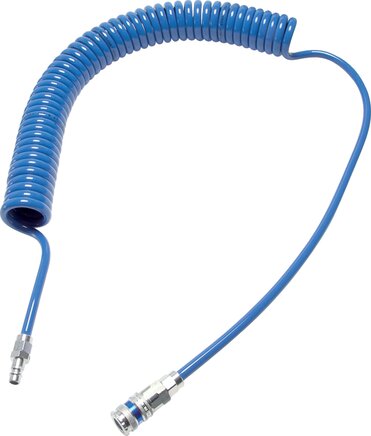

  • Exemplary representation

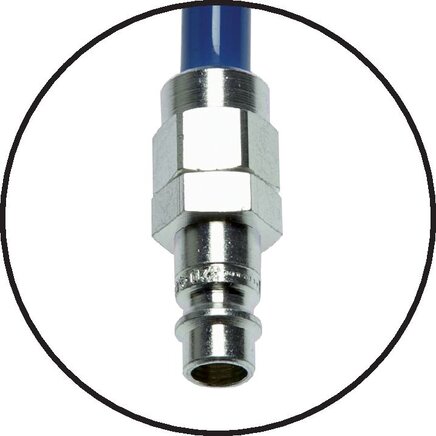

  • detailed view: Connection 1
  • detailed view: Connection 2

Find the right item

Version
Operating length [MTR]
Hose Ø outside x inside [mm]
Winding Ø interior [mm]

Polyurethane coil tubs (stream line) with coupling NW 7,2 / NW 10: 12 of 12 items

SP PUC 106/4KDG-S
Cejn-PUR spiral hose 10 x 6.5mm m. Coupling, 4 m. (SP PUC 106/4KDG-S)
Cejn-PUR spiral hose 10 x 6.5mm m. Coupling, 4 m.

  • Version

    with safety-coupling NW 7

  • Operating length [MTR]

    4

  • Hose Ø outside x inside [mm]

    10 x 6.5

  • Winding Ø interior [mm]

    32

Immediately available

65,26 €

SP PUC 128/4KDG-S
Cejn-PUR spiral hose 12 x 8mm m. Coupling, 4 m. (SP PUC 128/4KDG-S)
Cejn-PUR spiral hose 12 x 8mm m. Coupling, 4 m.

  • Version

    with safety-coupling NW 7

  • Operating length [MTR]

    4

  • Hose Ø outside x inside [mm]

    12 x 8

  • Winding Ø interior [mm]

    41

Immediately available

78,28 €

SP PUC 1611/4KDG-S
Cejn-PUR spiral hose 16 x 11mm m. Coupling, 4 m. (SP PUC 1611/4KDG-S)
Cejn-PUR spiral hose 16 x 11mm m. Coupling, 4 m.

  • Version

    with safety-coupling NW 7

  • Operating length [MTR]

    4

  • Hose Ø outside x inside [mm]

    16 x 11

  • Winding Ø interior [mm]

    63

Immediately available

152,24 €

SP PUC 106/6KDG-S
Cejn-PUR spiral hose 10 x 6.5mm m. Coupling, 6 m. (SP PUC 106/6KDG-S)
Cejn-PUR spiral hose 10 x 6.5mm m. Coupling, 6 m.

  • Version

    with safety-coupling NW 7

  • Operating length [MTR]

    6

  • Hose Ø outside x inside [mm]

    10 x 6.5

  • Winding Ø interior [mm]

    32

Immediately available

76,16 €

SP PUC 128/6KDG-S
Cejn-PUR spiral hose 12 x 8mm m. Coupling, 6 m. (SP PUC 128/6KDG-S)
Cejn-PUR spiral hose 12 x 8mm m. Coupling, 6 m.

  • Version

    with safety-coupling NW 7

  • Operating length [MTR]

    6

  • Hose Ø outside x inside [mm]

    12 x 8

  • Winding Ø interior [mm]

    41

Immediately available

101,09 €

SP PUC 1611/6KDG-S
Cejn-PUR spiral hose 16 x 11mm m. Coupling, 6 m. (SP PUC 1611/6KDG-S)
Cejn-PUR spiral hose 16 x 11mm m. Coupling, 6 m.

  • Version

    with safety-coupling NW 7

  • Operating length [MTR]

    6

  • Hose Ø outside x inside [mm]

    16 x 11

  • Winding Ø interior [mm]

    63

Immediately available

183,78 €

SP PUC 106/8KDG-S
Cejn-PUR spiral hose 10 x 6.5mm m. Coupling, 8 m. (SP PUC 106/8KDG-S)
Cejn-PUR spiral hose 10 x 6.5mm m. Coupling, 8 m.

  • Version

    with safety-coupling NW 7

  • Operating length [MTR]

    8

  • Hose Ø outside x inside [mm]

    10 x 6.5

  • Winding Ø interior [mm]

    32

Immediately available

87,16 €

SP PUC 128/8KDG-S
Cejn-PUR spiral hose 12 x 8mm m. Coupling, 8 m. (SP PUC 128/8KDG-S)
Cejn-PUR spiral hose 12 x 8mm m. Coupling, 8 m.

  • Version

    with safety-coupling NW 7

  • Operating length [MTR]

    8

  • Hose Ø outside x inside [mm]

    12 x 8

  • Winding Ø interior [mm]

    41

Immediately available

111,07 €

SP PUC 1611/8KDG-S
Cejn-PUR spiral hose 16 x 11mm m. Coupling, 8 m. (SP PUC 1611/8KDG-S)
Cejn-PUR spiral hose 16 x 11mm m. Coupling, 8 m.

  • Version

    with safety-coupling NW 7

  • Operating length [MTR]

    8

  • Hose Ø outside x inside [mm]

    16 x 11

  • Winding Ø interior [mm]

    63

Immediately available

270,33 €

SP PUC 1611/4 KDG-10
Cejn-PUR spiral hose 16 x 11mm m. Coupling, 4 m. (SP PUC 1611/4 KDG-10)
Cejn-PUR spiral hose 16 x 11mm m. Coupling, 4 m.

  • Version

    with safety-coupling NW 10

  • Operating length [MTR]

    4

  • Hose Ø outside x inside [mm]

    16 x 11

  • Winding Ø interior [mm]

    63

Immediately available

124,16 €

SP PUC 1611/6 KDG-10
Cejn-PUR spiral hose 16 x 11mm m. Coupling, 6 m. (SP PUC 1611/6 KDG-10)
Cejn-PUR spiral hose 16 x 11mm m. Coupling, 6 m.

  • Version

    with safety-coupling NW 10

  • Operating length [MTR]

    6

  • Hose Ø outside x inside [mm]

    16 x 11

  • Winding Ø interior [mm]

    63

Immediately available

148,81 €

SP PUC 1611/8 KDG-10
Cejn-PUR spiral hose 16 x 11mm m. Coupling, 8 m. (SP PUC 1611/8 KDG-10)
Cejn-PUR spiral hose 16 x 11mm m. Coupling, 8 m.

  • Version

    with safety-coupling NW 10

  • Operating length [MTR]

    8

  • Hose Ø outside x inside [mm]

    16 x 11

  • Winding Ø interior [mm]

    63

Immediately available

177,31 €

All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
