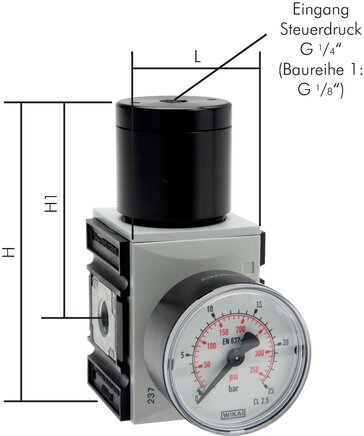

Pressure regulator, remote controlled (volume booster) - Futura series 1, 2 & 4, up to 14600 l/min

Self-relieving pressure regulator

Body: PA 66 GF60, spring hood: POM, diaphragms and seals: NBR

-10 to +50 °C

Max. 16 bar (model series 0: max 12 bar)

G 1/4" (model series 0: G 1/8")

Oiled and unoiled compressed air, neutral gasses

•Automatic venting in the event of overpressure on the secondary side,
•Easy assembly of individual components using coupling kits within a model series,
•Hand wheel can be locked by pressing down on it and bolted with a lock - please use VHS 20. Model series 0 cannot be locked.

The remote controlled pressure regulator is used if the pressure regulator has to be used at inaccessible locations (e.g. in hazardous or ceiling areas). The setting is made using a pilot pressure regulator that can be placed anywhere. The regulated pressure corresponds to the pressure of the remote controlled bore.

Series 1 & 2: none, series 4: max. 1.5 l/min.

Pressure regulator incl. 50 mm pressure gauge

Operating material without its own potential source of ignition in accordance with Directive 2014/34/EU

•Remote pressure control by a pilot regulator (when using a precision pressure regulator with feedback connection, a very precise pressure setting is possible).
